Stainless Swage Jaw Terminals Mini Type
Stainless Swage Jaw Terminals Mini Type
£5.16 UK VAT incl.
Product Code
SKU:311.020.030
Couldn't load pickup availability
Stainless Steel Mini Swage Jaw Terminals A4 AISI 316 Marine Grade.

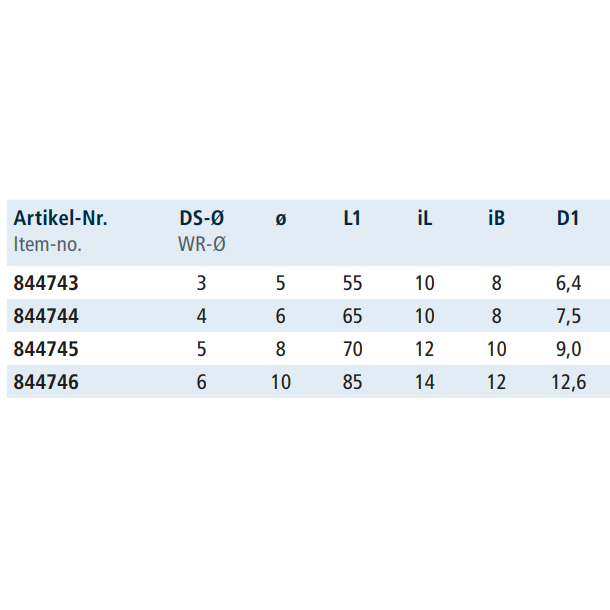

| Partcode | Cable ⌀ | Pin ⌀ | L1 | iL | iB | D1 |
| 311.020.030 | 3.0 | 5.0 | 55 | 10.0 | 8 | 6.4 |
| 311.020.040 | 4.0 | 6.0 | 65 | 10.0 | 8 | 7.5 |
| 311.020.050 | 5.0 | 8.0 | 70 | 12.0 | 10 | 9.0 |
| 311.020.060 | 6.0 | 10.0 | 85 | 14.0 | 12 | 12.6 |
The expected strength for this end termination when pressed correctly is 90% of MBL of the cable. Testing must be performed to verify the strength of the assembly.
Applications & Advice
Applications & Advice
Typical Applications:
Catenary
Balustrade
Suspension cables
Rigging Cables
To fit, simply insert cable into the fitting and swage using a hydraulic press.
TECNI can fit these for you. Please let us know your requirements.
Dimensions
Dimensions
See table.
Downloads
Downloads
Technical Information
Technical Information
The expected strength for this end termination when pressed correctly is 90% of MBL of the cable. Testing must be performed to verify the strength of the assembly. Swage using hexagon swaging dies or round swaging dies. Please contact us if you need assistance with fitting these products.
