Code 6 TALURIT Aluminium Stop Ferrule - 100.315.060

Code 6 TALURIT Aluminium Stop Ferrule - 100.315.060

£0.36 GBP
£0.36 GBP £0.36 GBP
セール 売り切れ
配送料はチェックアウト時に計算されます。

Product Code

100.315.060

833個の在庫

Aluminium Stop Ferrule for 4.8mm–6.1mm Cable

Key Features:

  • R End Stop Suitable for 4.8mm–6.1mm cable
  • Made from aluminium
  • Designed for Suspension and Locating purposes
  • Suitable for making Wire rope Assemblies
  • Not suitable for lifting applications
  • Recommended for use with Galvanised cable and Stainless Steel in a non-marine environment.



Applications & Advice

Available in sizes 1.5–32. Manufactured from EN AW-5051A aluminium alloy in accordance with EN 573-3 and compliant with the material requirements specified in EN 13411-3.

Typical applications:

Suspension and Locating purposes

Suitable Cable Types:

Galvanised  Steel

Stainless Steel in a Non Marine environment

Tool Selector

Technical Info

Aluminium and Copper end stops are not suitable for lifting applications. They are designed for suspension and locating purposes.

The expected strength regarding this type of end termination is approximately 50% of the MBL of the wire rope. Testing must be performed to verify the strength of the assembly.

For support with manufacturing requirements, further help or information, please contact a member of our Sales Team.

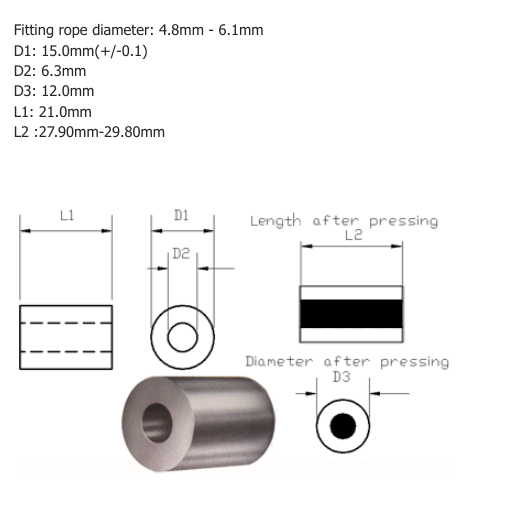

Dimensions

Dimensions Datasheet

Downloads

TALURIT Datasheet
