• TALURIT Copper Stop
1 2

Code 4 TALURIT Copper Stop Ferrule - 100.320.040

Code 4 TALURIT Copper Stop Ferrule - 100.320.040

£1.25 GBP
£1.25 GBP £1.25 GBP
セール 売り切れ
配送料はチェックアウト時に計算されます。

Product Code

100.320.040

187個の在庫

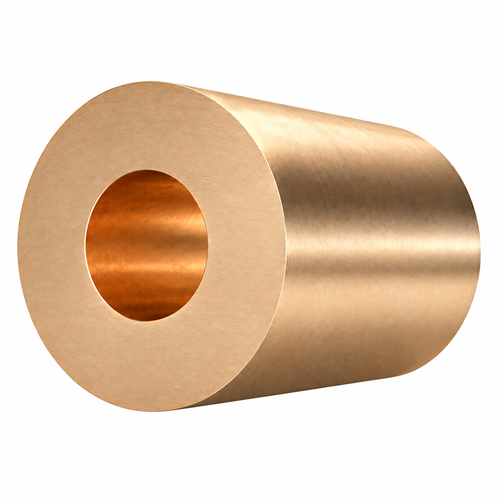

Copper Stop Ferrule for 3.4mm–4.1mm Cable

Key Features:

  • RCU End Stop Suitable for 3.4mm-4.1mm cable
  • Made from Copper
  • Designed for Suspension and Locating purposes
  • Suitable for making Wire rope Assemblies
  • Not suitable for lifting applications
  • Recommended for use with Stainless Steel Cable to avoid galvanic corrosion in saltwater environments.



Applications & Advice

Available in sizes 1.5 - 8. The stop ferrule is made of pure copper (almost 99.9%)

Typical applications:

Suspension and Locating purposes

Suitable Cable Types:

Stainless Steel cable to avoid galvanic corrosion in saltwater environments.

Tool Selector

Technical Info

Aluminium and Copper end stops are not suitable for lifting applications. They are designed for suspension and locating purposes.

The expected strength regarding this type of end termination is approximately 50% of the MBL of the wire rope. Testing must be performed to verify the strength of the assembly

For support with manufacturing requirements, further help or information, please contact a member of our Sales Team.

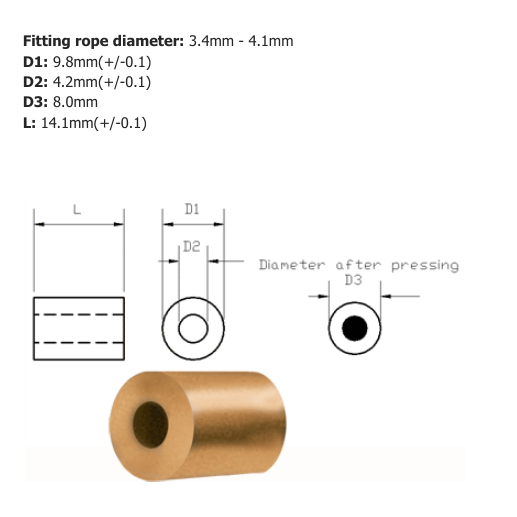

Dimensions

Dimensions Datasheet

Downloads

TALURIT Datasheet

Video
