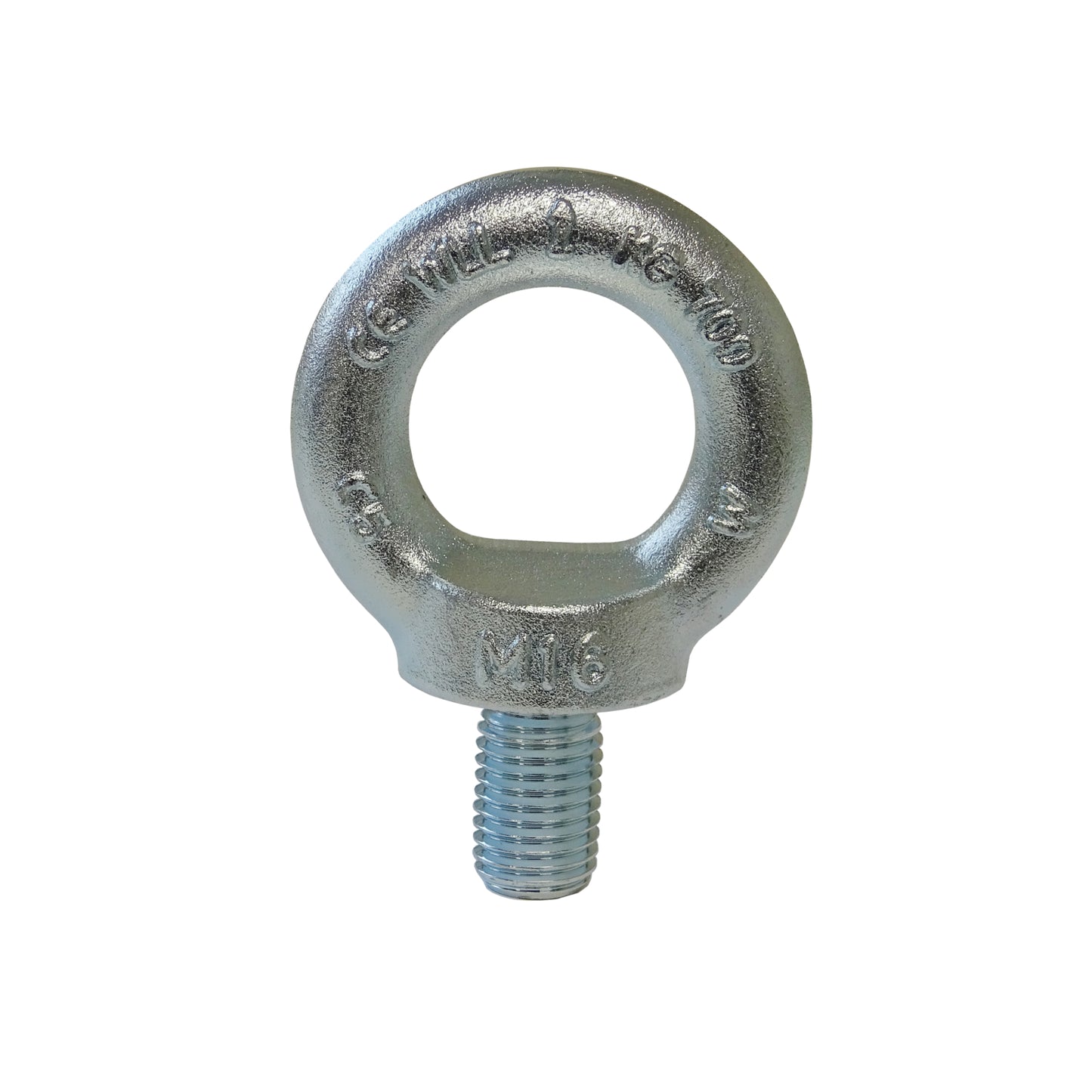

M16 Zinc Plated Lifting Eyebolt DIN 580 WLL: 700 kgs - 106.053.016

M16 Zinc Plated Lifting Eyebolt DIN 580 WLL: 700 kgs - 106.053.016

£8.79 GBP
£8.79 GBP £8.79 GBP
セール 売り切れ
配送料はチェックアウト時に計算されます。

Product Code

106.053.016

81個の在庫

M16 Zinc Plated Lifting Eyebolt DIN 580 WLL: 700 kgs - 106.053.016 (Supplied with Inspection certificate UNI EN10204 type 3.1)

In accordance with DIN580:2010 our eyebolts are:

Tested - which includes 2 straight and 2 orthogonal pull tests.

Marked - with the manufacturers brand, CE mark, lot number, straight lift Working Load Limit (WLL) and arrow indicating lift direction.

Certified - supplied with Inspection Certificate 3.1 EN10204, material and chemical analysis.

Applications & Advice

Suitable for use in temperatures ranging from -20°C to +200 °C (In Fahrenheit degrees: -4°F / +392°F) without a reduction in their lifting capacity.

Technical Info

Manufactured from Aluminium killed Carbon Steel C15E (EN 10084/98) - White zinc-plated (minimum 8 microns)

Dimensions

D1: M16 x 2mm (Standard Metric Pitch)
D2: 35mm
D3: 63mm
D4: 35mm
E: 12mm
F: 4mm
G: 13mm
H: 62mm
K: 14mm
L: 27mm
M: 16mm

Downloads

Safety Regulation Sheet
