M6 White Zinc-Plated (BZP) Lifting Eyenut DIN 582 Certified WLL: 75 kgs - 106.051.006

M6 White Zinc-Plated (BZP) Lifting Eyenut DIN 582 Certified WLL: 75 kgs - 106.051.006

通常価格 £3.95 GBP
通常価格 £0.00 GBP セール価格 £3.95 GBP
セール 売り切れ
配送料はチェックアウト時に計算されます。

Product Code

SKU:106.051.006

数量

24個の在庫

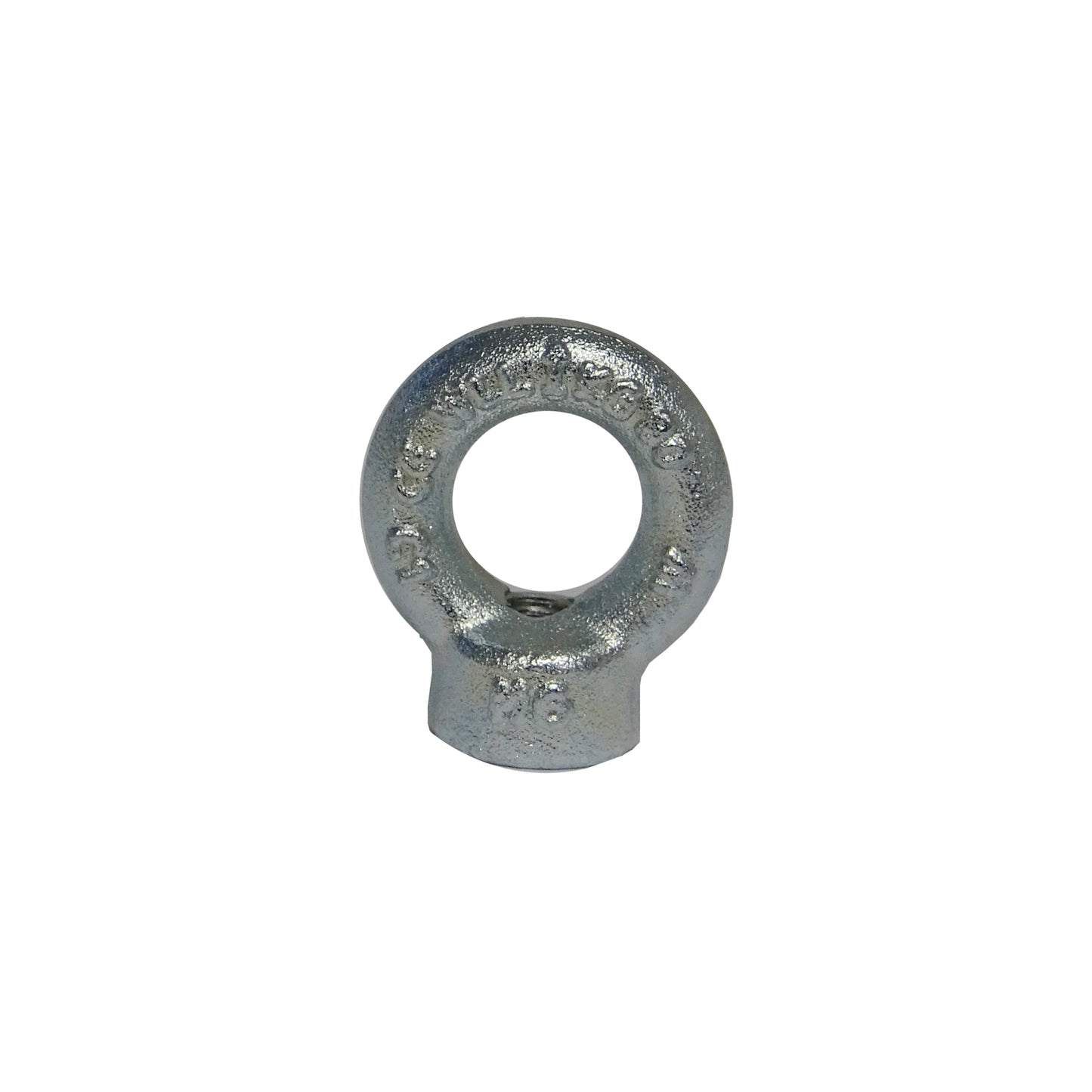

M6 White Zinc Plated DIN582 Certified Lifting Eye Nut

WLL: 75kg

In accordance with DIN582:2010 our eye nuts are:

Tested - which includes 2 straight and 2 orthogonal pull tests.

Marked - with the manufacturers brand, CE mark, lot number, straight lift Working Load Limit (WLL) and arrow indicating lift direction.

Certified - supplied with Inspection Certificate 3.1 EN10204, material and chemical analysis.

Manufactured from Aluminium killed Carbon Steel C15E (EN 10084/98) - White zinc-plated (minimum 8 microns)

Suitable for use in temperatures ranging from -20°C to +200 °C (In Fahrenheit degrees: -4°F / +392°F) without a reduction in their lifting capacity.

Applications & Advice

Technical Info

Dimensions

d1:M6
d2:20mm
d3:36mm
d4:20mm
h:34mm
