TECNI® CPC-20A Hydraulic Cable Cutter to cut 16mm diameter Cable - 101.000.020
TECNI® CPC-20A Hydraulic Cable Cutter to cut 16mm diameter Cable - 101.000.020
Product Code
SKU:101.000.020
22個の在庫
受取状況を読み込めませんでした

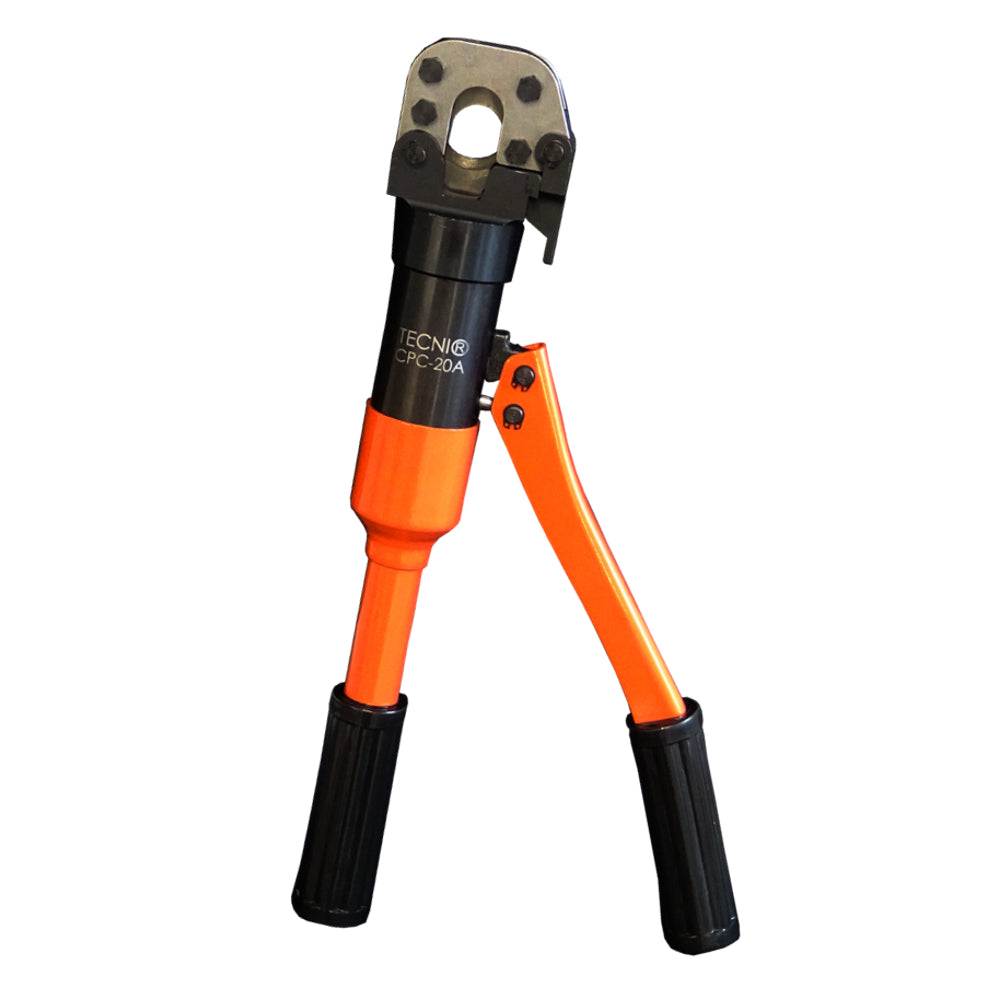

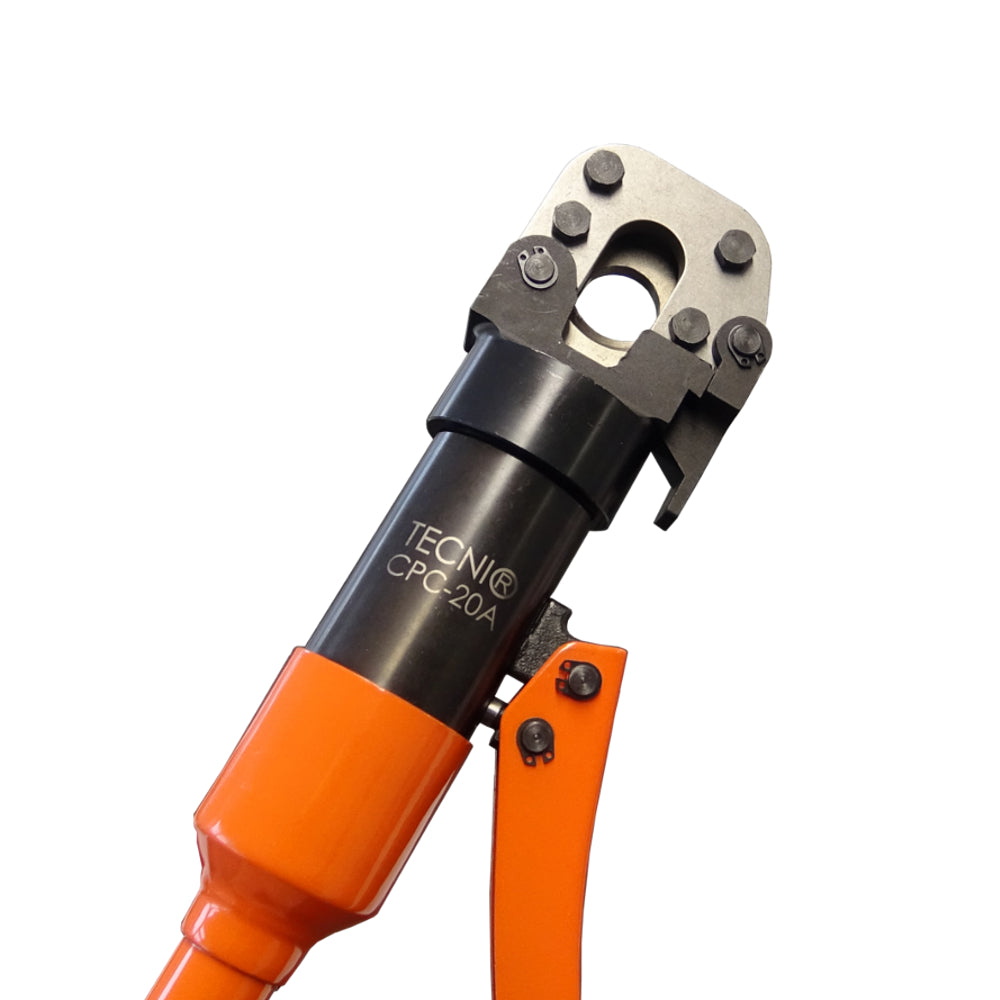

The TECNI CPC-20A Hydraulic Wire Rope Cutter is a high-performance cable cutter which delivers a cutting force of 5.5 tonnes. This wire rope cutter has features which include a two-speed action along with a safety valve which automatically releases when maximum pressure has been reached. The head can rotate 180° which allows comfortable cutting in confined spaces.

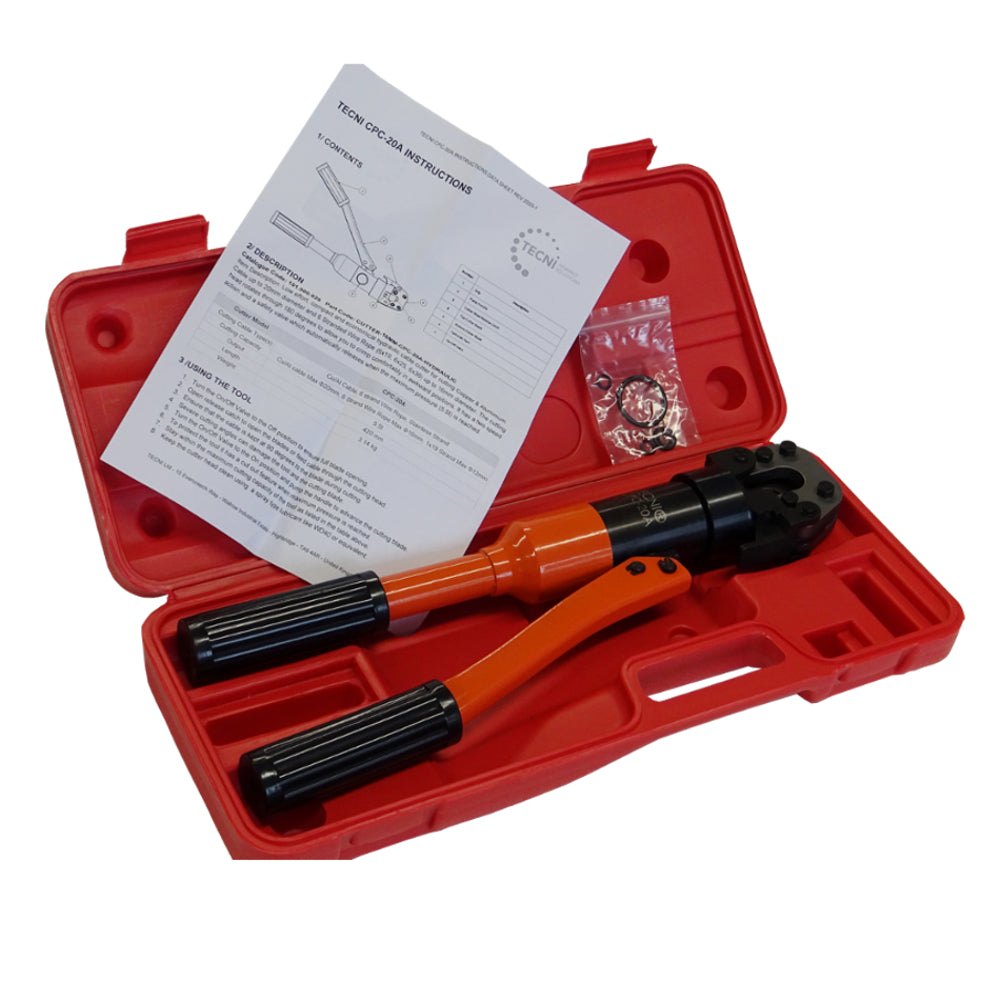

This is also supplied with a carry case.
Replacement blades, spares kits and tool servicing are available for this item.
Applications & Advice
Applications & Advice
Cutting higher tensile or compacted wire ropes is not recommended and will significantly reduce the lifespan of the cutters and invalidate the product warranty.

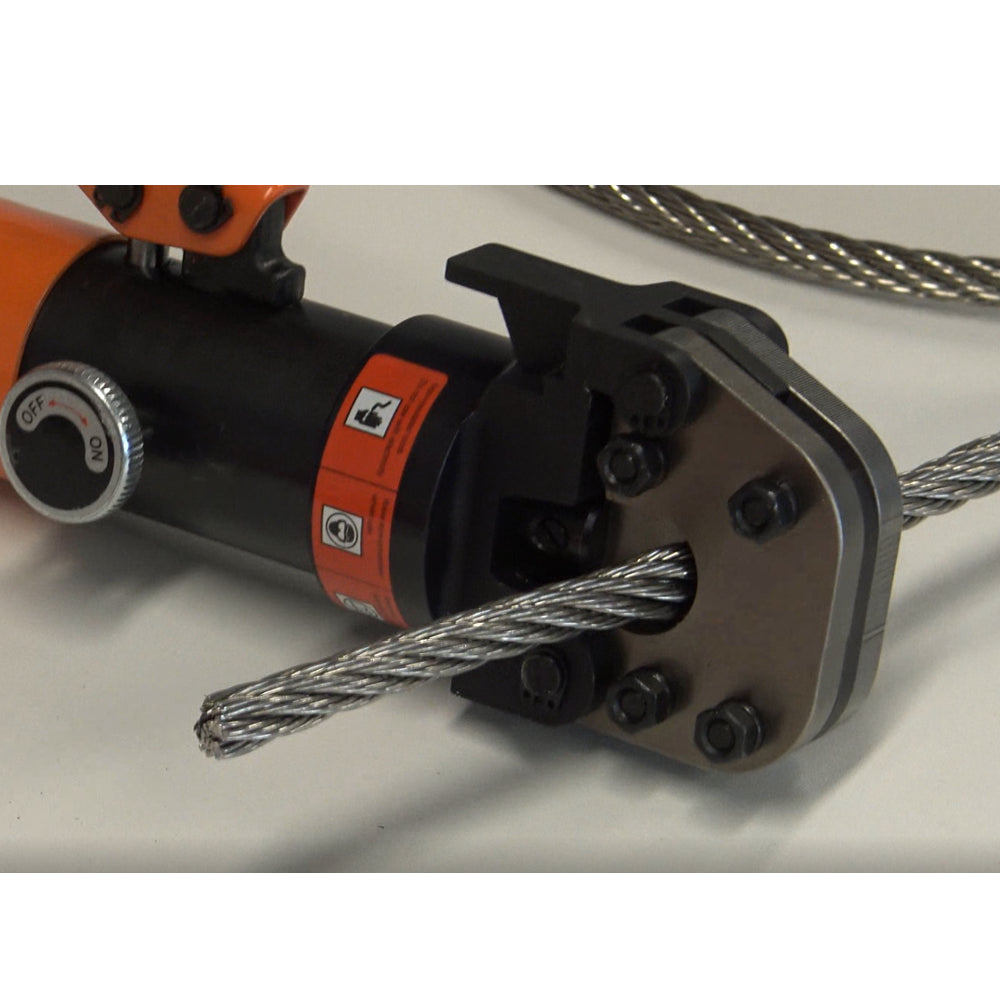

TECNI® CPC-20A Hydraulic Wire Rope Cutter is suitable for cutting the following;
- 6 Strand Wire Rope up to 16mm diameter
- 1x19 Strand up to 12mm diameter
Dimensions
Dimensions
Length of the Cutter: 420mm
Weight of the Cutter: 3.66kg
Technical Information
Technical Information
Material: Metal Body & Handle = Pressed Painted Steel
Head = Zinc Plated Cast Steel
Blades = Hardened Steel
Plastic Handle = Moulded PVC
Recommended Grade of Oil: ISO 32 Hydraulic Oil
If you would like more information on our spares kits and hydraulic tool servicing please contact us
