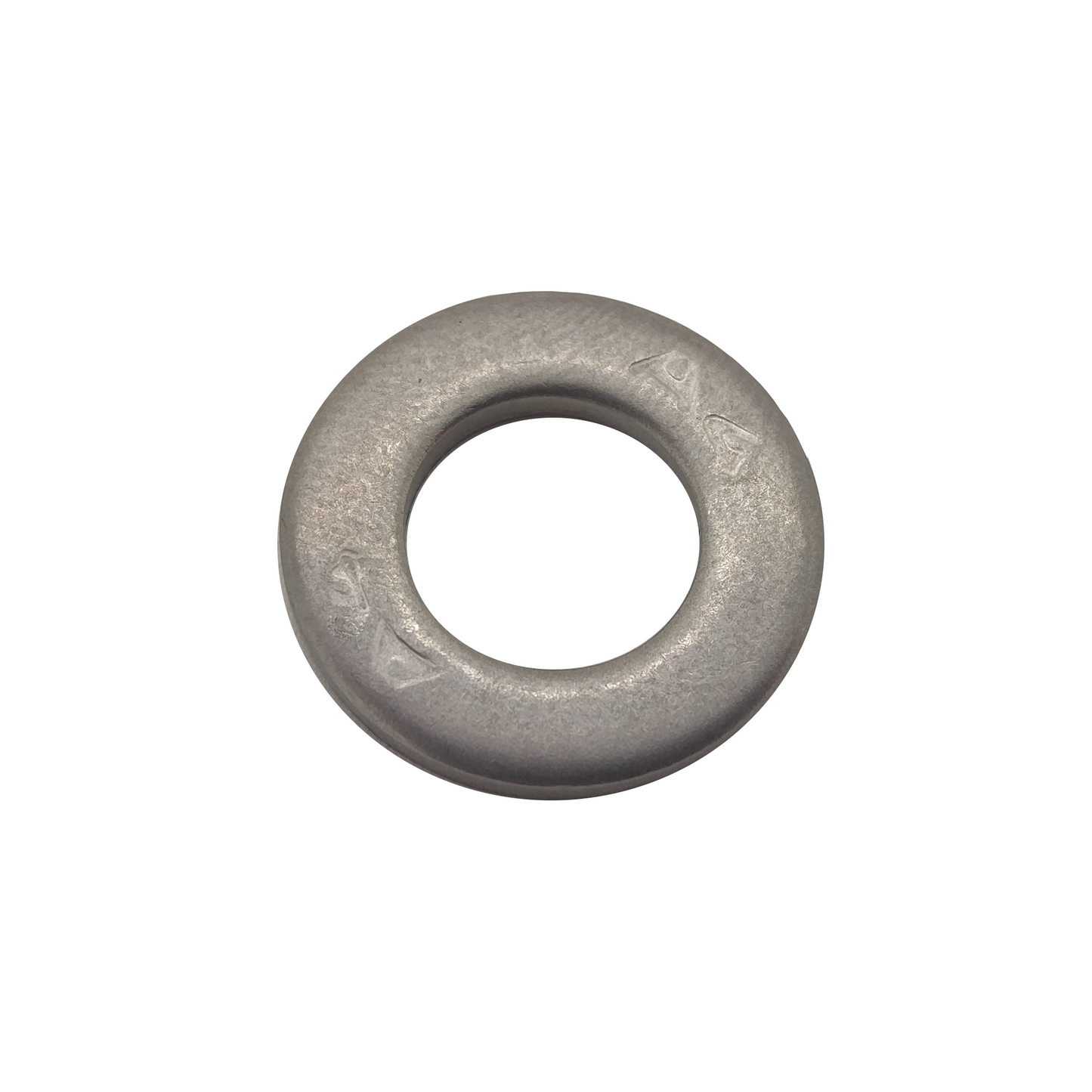

• A silver-colored A2-AISI 304 stainless steel Form B washer with visible branding on the inner diameter.
  • Technical Drawing of a washer with dimensions on a white background
1 2

M6x12.3x0.75 A4-AISI 316 Stainless Steel Washer Form B BS4320 - 163.012.106 .

M6x12.3x0.75 A4-AISI 316 Stainless Steel Washer Form B BS4320 - 163.012.106 .

£0.15 GBP
£0.15 GBP £0.15 GBP
セール 売り切れ
配送料はチェックアウト時に計算されます。

Product Code

163.012.106

593個の在庫

The M6 Form B Washer is manufactured from corrosion-resistant A4 AISI 316 stainless steel to BS4320 specifications, offering excellent resistance to corrosion in indoor, outdoor and marine environments.

Featuring a polished stainless steel finish and a reduced thickness of 0.75mm, this half-thickness flat washer provides a compact fastening solution where installation space is limited.

Designed for use with compatible M6 threaded fasteners, it helps distribute clamping pressure across the contact surface.

Available to order in any quantity, with no minimum order charge.

Applications & Advice

Typical Applications:

  • Stainless steel bolts and threaded fittings
  • Garden trellis and architectural installations
  • Mechanical fastening and assemblies
  • Marine and outdoor fixing applications
  • General-purpose fastening systems

Use with compatible M6 bolts, nuts and threaded fittings. The reduced thickness of this Form B washer makes it suitable for applications where a thinner washer is required. Position the washer beneath the bolt head or nut to distribute the clamping load and help protect the mounting surface. Ensure the washer thickness and dimensions are suitable for the intended application.

Dimensions

S: 0.8mm
d1: M6
d2: 12.5mm
