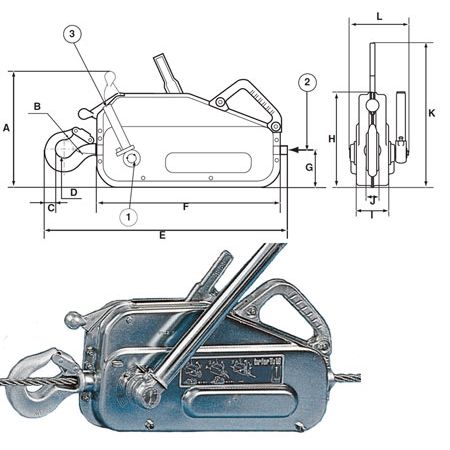

Tractel Tirfor TU16 Wire Rope Lever operated Winch 1600 kgs WLL - 203.107.016

The Tirfor® TU™ series is developed for daily heavy-duty applications under the most extreme circumstances.

It is a versatile and portable multi-purpose manual hoist for lifting, pulling and positioning device.

It can be used for lifting and pulling, but also for lowering, tensioning and securing loads in all directions.

One-man operation by using the telescopic control lever supplied as standard. Spare shear pins for overload protection are supplied as standard.

■ Lightweight and easily portable for use anywhere

■ TU™ range EN13157 FULLY compliant

■ Delivering safe and assured operation in any direction, either in a straight line or using diverter pulleys over an unlimited length

■ Low-wear clamping jaws during demanding applications increasing the life of the wire rope

■ Overload protection for safe and secure operation

■ Fast and easy to install and use

■ Working load can be increased by using sheave blocks

■ Positioning loads with millimetre accuracy

■ Secure release system

■ Load capacity from 800 - 3200 kg

■ Full range of accessories are available – sheave blocks, diverter pulleys, ground anchors and reelers

This machine is supplied without a Wire Rope.

This machine must not be used for Man Riding applications.
