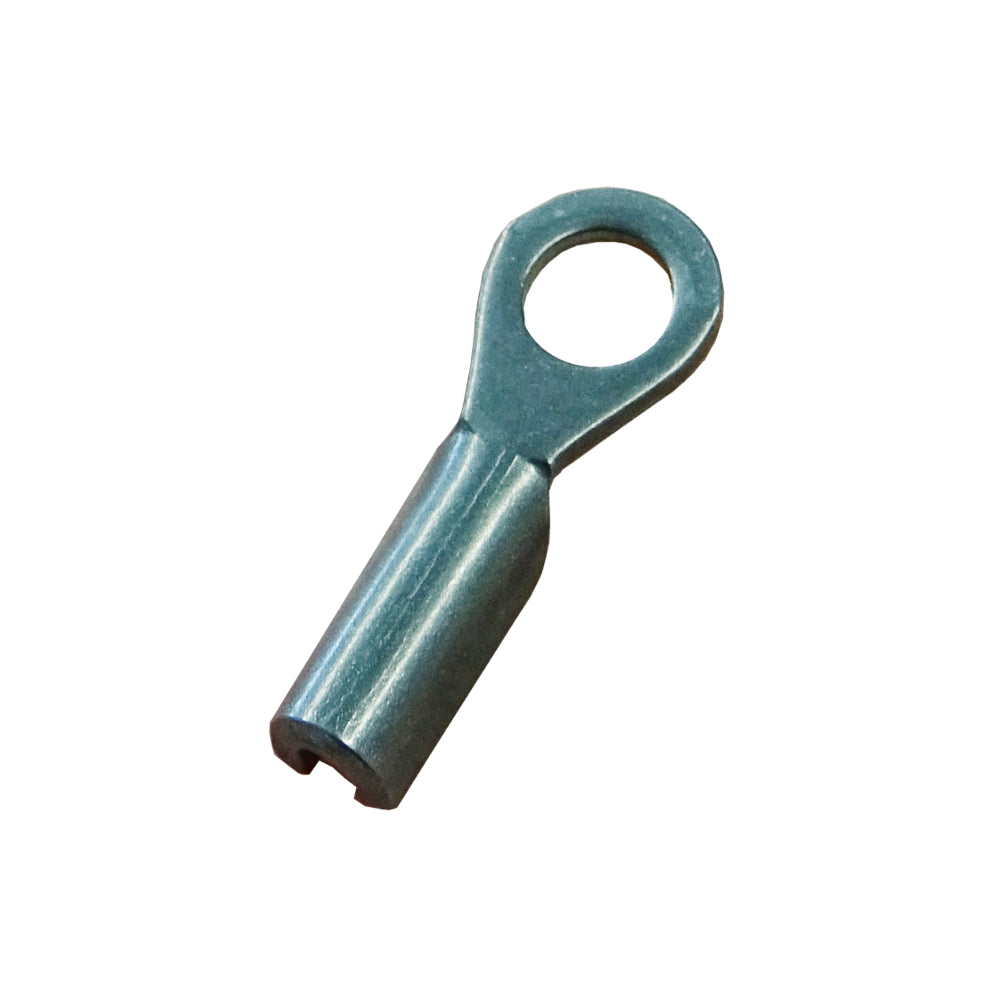

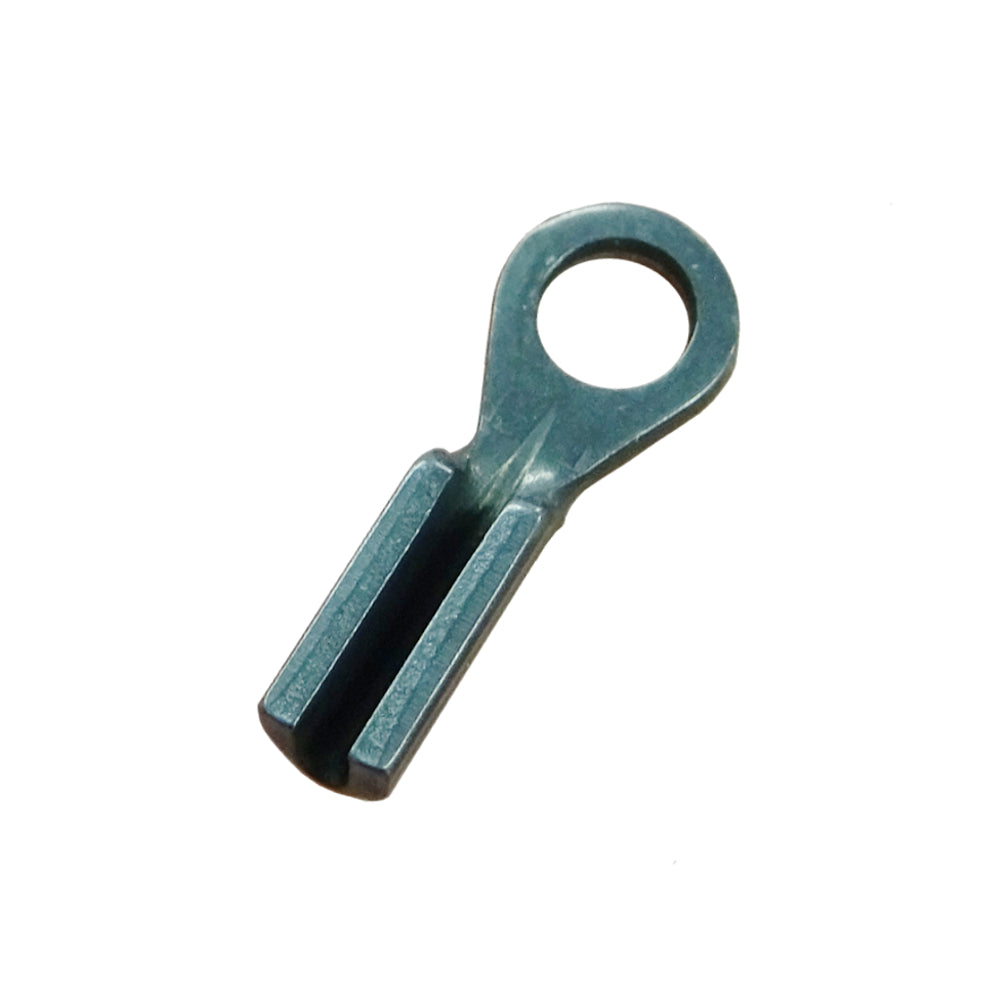

3/64" (1.2mm) A2-AISI 304 Stainless Steel Eye Terminal with 0.19" (4.8mm) pin diameter - 102.021.015

3/64" (1.2mm) A2-AISI 304 Stainless Steel Eye Terminal with 0.19" (4.8mm) pin diameter - 102.021.015

£2.79 GBP
£2.79 GBP £2.79 GBP
Sale Ausverkauft
Versand wird beim Checkout berechnet

Product Code

102.021.015

577 auf Lager

3/64" (1.2mm) Stainless Steel Eye Terminal with 0.19" (4.8mm) eye - 102.021.015

  • 4.8mm Eye
  • Provides very strong & reliable termination
  • Suitable for Use with TECNI YCP-120
  • Can be used at an angle
  • Assemblies manufactured to order

Applications & Advice

This compact & adaptable AISI 304 Stainless Steel swage terminal is designed for 3/64" & 1.2mm cable. Perfect for suspension, shop fittings & security cables.

Dimensions

To Fit Wire Rope Dia (in) 3/64"

A Pin Hole (in) 0.19
B (in) 0.32
C (in) 0.06
D (in) 0.315
E (in) 0.715

Max. Holding Strength (lbs) 200
Material Type S.S. T304
