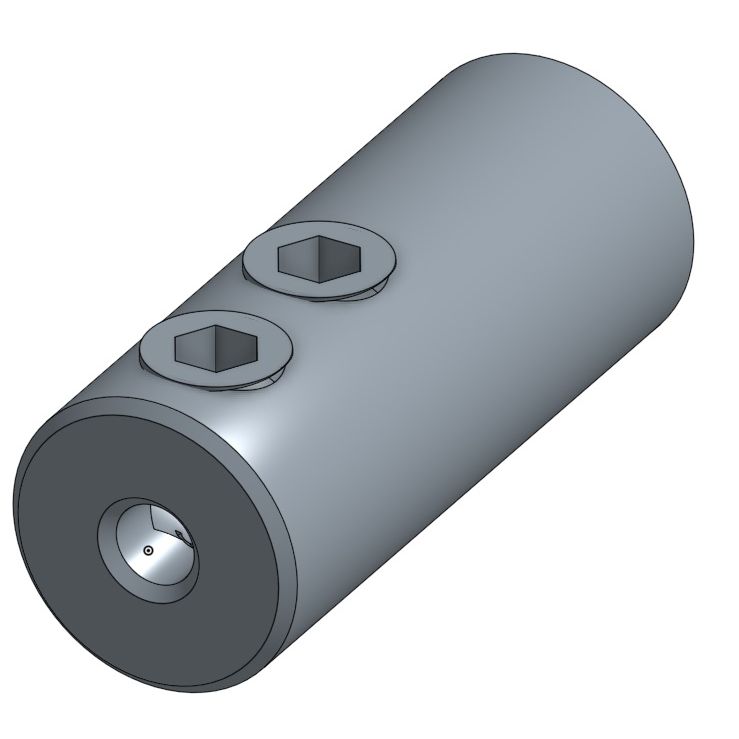

  • Stainless Steel Tension Fitting on a white background
  • Technical drawing of a M6 A4-AISI 316 Stainless Steel Tension Fitting with dimensions and tapped holes.
1 3

M6 A4-AISI 316 Stainless Steel Tension Fitting for 2.5mm & 3mm Cable - 160.253.306

M6 A4-AISI 316 Stainless Steel Tension Fitting for 2.5mm & 3mm Cable - 160.253.306

£4.66 GBP
£4.66 GBP £4.66 GBP
Sale Ausverkauft
Versand wird beim Checkout berechnet

Product Code

160.253.306

187 auf Lager
  • M6 Thread
  • Suitable for 2.5mm and 3mm Cable
  • Suitable for Indoor and Outdoor Use

This compact A4 AISI 316 stainless steel internally threaded self assembly cable tension fitting is for use with 2.5mm & 3mm cable. It can be fixed to any M6 right-hand threaded fittings, screws and bolts which makes it very versatile.

Ideal for any cable suspension system and cable tension wire, perfect for tensioning garden trellis wires, balustrade wires etc.

Applications & Advice

No specialist tools are needed, just an allen key. Simply insert the cable and tighten built in allen headed screws.

Dimensions

Length: 30mm
Diameter: 12mm
M6 Internal Thread
