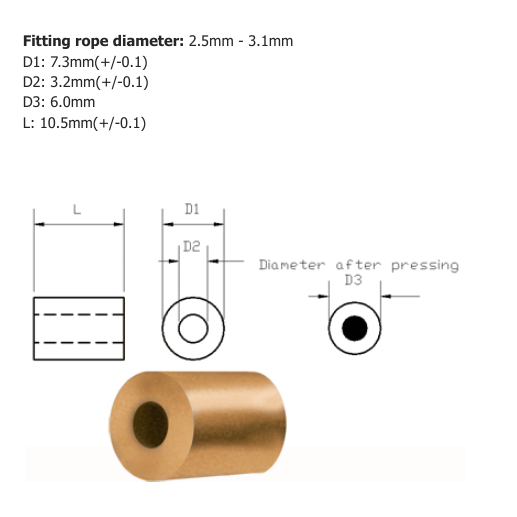

Code 3 TALURIT Copper Stop Ferrule (for 2.5mm & 3mm wire rope) - 100.320.030

Talurit™ Code 3 Copper Stop Ferrule.

RCU End Stop suitable for use with 2.5mm-3.1mm cable.

Aluminium and Copper end stops are not suitable for lifting applications. They are designed for suspension and locating purposes. The expected strength regarding this type of end termination is approximately 50% of the MBL of the wire rope. Testing must be performed to verify the strength of the assembly.

Copper stop ferrules are best suited for use with Stainless Steel cable to avoid galvanic corrosion in saltwater environments.

Available in sizes 1.5 - 8. The stop ferrule is made of pure copper (almost 99.9%)

For support with manufacturing requirements, further help or information, please contact a member of our Sales Team.
