Code 2 TALURIT A4-AISI 316 Stainless Steel Ferrule - 100.310.020

Available in sizes 1 - 30 dimensions based on DIN EN 13411-3

Please ensure the ferrule size is compatible with the cable diameter and that suitable tools and correct swaging procedures are used when forming terminations.

TECNI recommends the TECNI® YCP-120C Hydraulic cable crimper 1mm - 5mm range for pressing up to Code 4 Stainless Ferrules.

Typical applications:

Lifting Applications: Wire rope slings and strops

Control cables

Security cables and tagging

Suitable Cable Types:

Stainless Steel ferrules are best suited for use with Stainless Steel cable.

Tool Selector

A Talurit Ferrule secured eye termination (FSET) when pressed correctly will normally withstand 90% of the breaking load of the cable. Please note that testing should be performed to verify the strength of the termination

For support with manufacturing requirements, further help or information, please contact a member of our Sales Team.

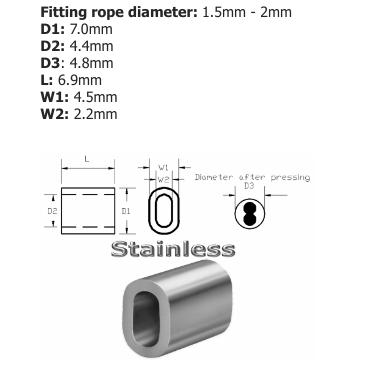

Dimensions Datasheet

TALURIT Datasheet
