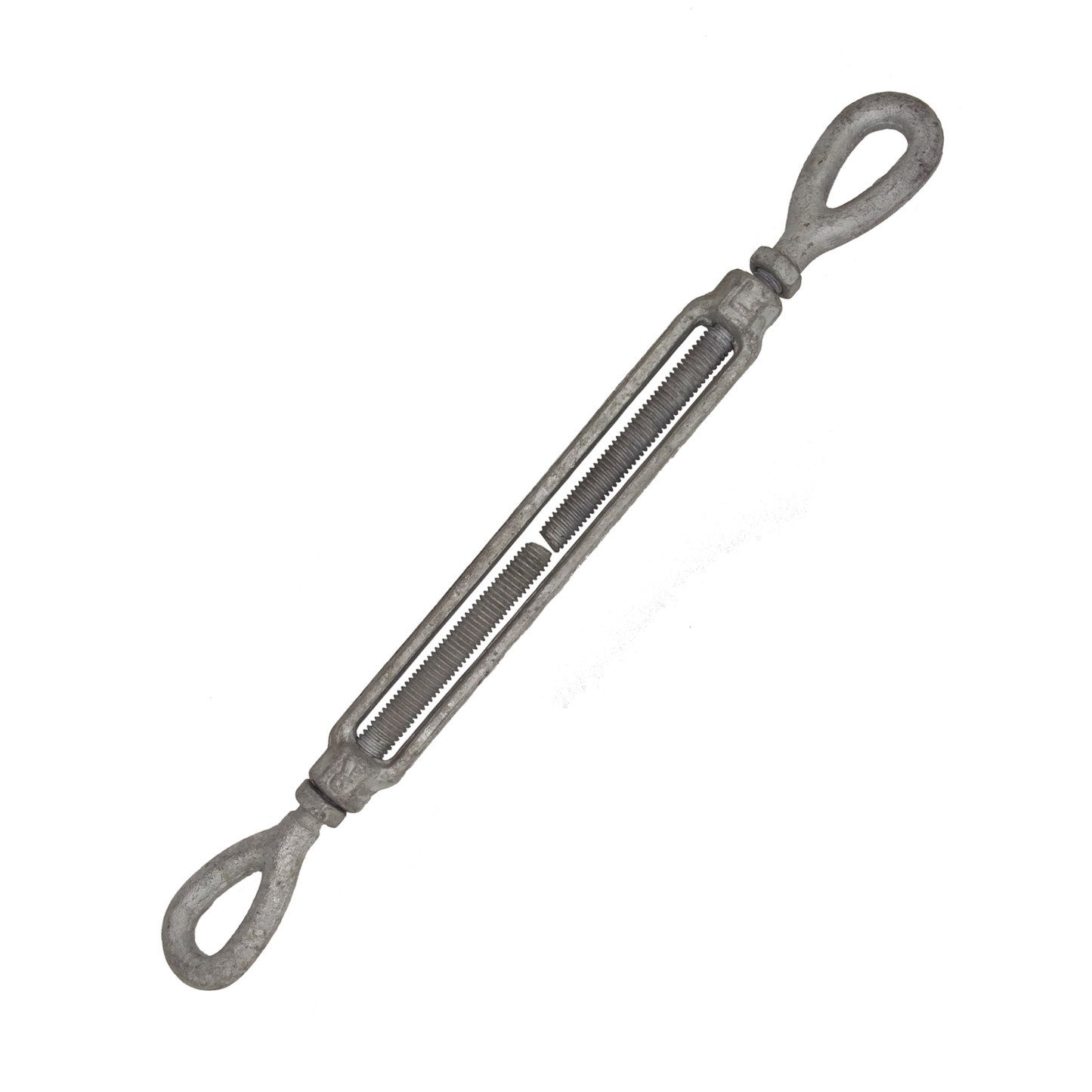

9.5mm (3/8") x 152mm (6") Galvanised Forged Eye & Eye Turnbuckle US Federal Specification WLL 540 kgs - 163.103.806 .

Suitable for a range of cable tensioning applications where a load-rated fitting is required, including:

• Industrial Cable Systems – Tensioning wire rope assemblies in industrial installations.
• Structural Bracing – Adjusting tension in suitably engineered bracing and support systems.
• Marine Applications – Tensioning cables in suitable marine and dockside installations.
• Architectural Cable Systems – Providing adjustable tension in structural and architectural wire rope installations.
• General Rigging Applications – Suitable for appropriately designed rigging and tensioning systems requiring secure eye-to-eye connections.

Before installation, ensure the turnbuckle is suitable for the intended application and compatible with the cable diameter, connecting fittings and required Working Load Limit.

• Inspect for damage, wear or corrosion before use.
• Ensure both threaded ends are securely engaged within the turnbuckle body.
• Adjust tension evenly by rotating the central body, keeping the load aligned with the centre line.
• Ensure both eye fittings are securely connected using compatible, appropriately rated components.
• Avoid side loading, shock loading or forcing the turnbuckle into position.
• Keep threads clean and free from debris.
• Regularly check for wear, deformation, damaged threads or corrosion.

Important: Working Load Limit (WLL): 540kg. Never exceed the manufacturer's rated WLL. For lifting or safety-critical applications, confirm the product's certification and suitability for the intended use before installation.

See photo above:

a: 28mm
b: 13mm
f: 155mm
l1: 180mm
l2: 152mm;
