LH TECNI® Standard Balustrade Angled Runs into Metal. 3-4mm Cable.

Name: LH TECNI® Standard Balustrade Angled Runs into Metal. 3-4mm Cable.
Brand: TECNI
SKU: 160.140.101
Price: 12.06 GBP
Availability: InStock

£12.06 GBP

~~£12.06 GBP~~ £12.06 GBP

Sale Ausverkauft

Versand wird beim Checkout berechnet

Product Code

SKU:160.140.101

Niedriger Lagerbestand: 2 verbleibend

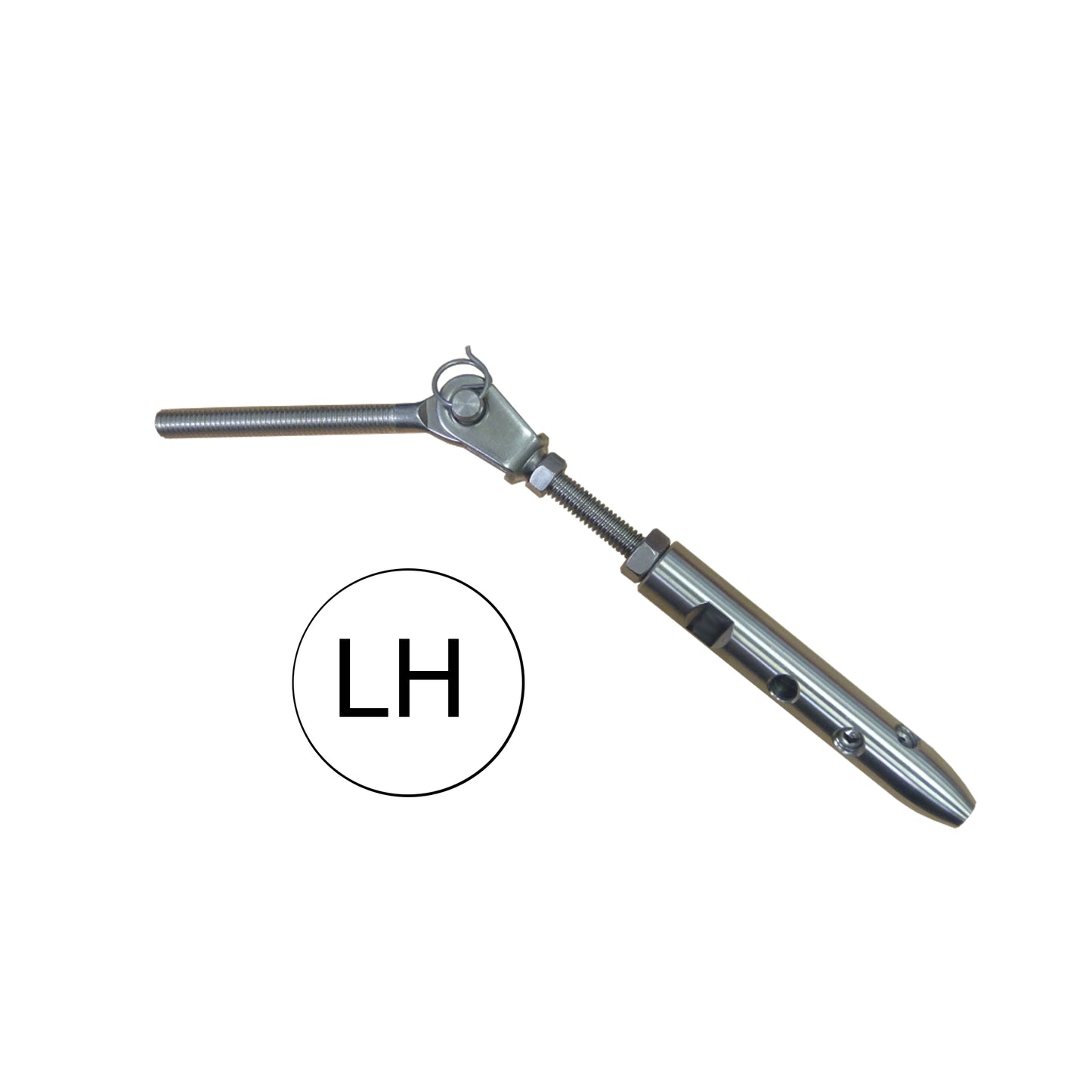

4mm TECNI® 316 Stainless Steel Angled Balustrade Fitting suitable for Angled Runs into Metal Posts - Left Hand Thread

Supplied with M6 mini jaw terminal and M6 Eye fitting for installation into tapped metal posts. Suitable for use with 3mm or 4mm cable. Each run of cable requires a left hand and a right hand fitting at either end to create tension in the cable.

Typical Applications

Balustrade in Commercial and Private settings

Trellis

DIY Garden projects

For support with manufacturing requirements, further help or information, please contact a member of our Sales Team.

Applications & Advice

A top rail, capable of withstanding a compressive load, should be fitted to help absorb the considerable force exerted by the cables on the end posts. Without one the posts are likely to fall in and the cable to go slack.

When drilling your posts and anchor points, the following sizes apply for the M6 system:

For the best look, when screwing the studs into the posts ensure the depth of the stud and the amount of visible thread is the same for each stud all the way down the post.

For correct tensioning using 75mm (3 in) spacings the cable should not deflect to more than 100mm (4 in). If you have the means to test it, tension the cables to 102kgf (225lbs) per cable
