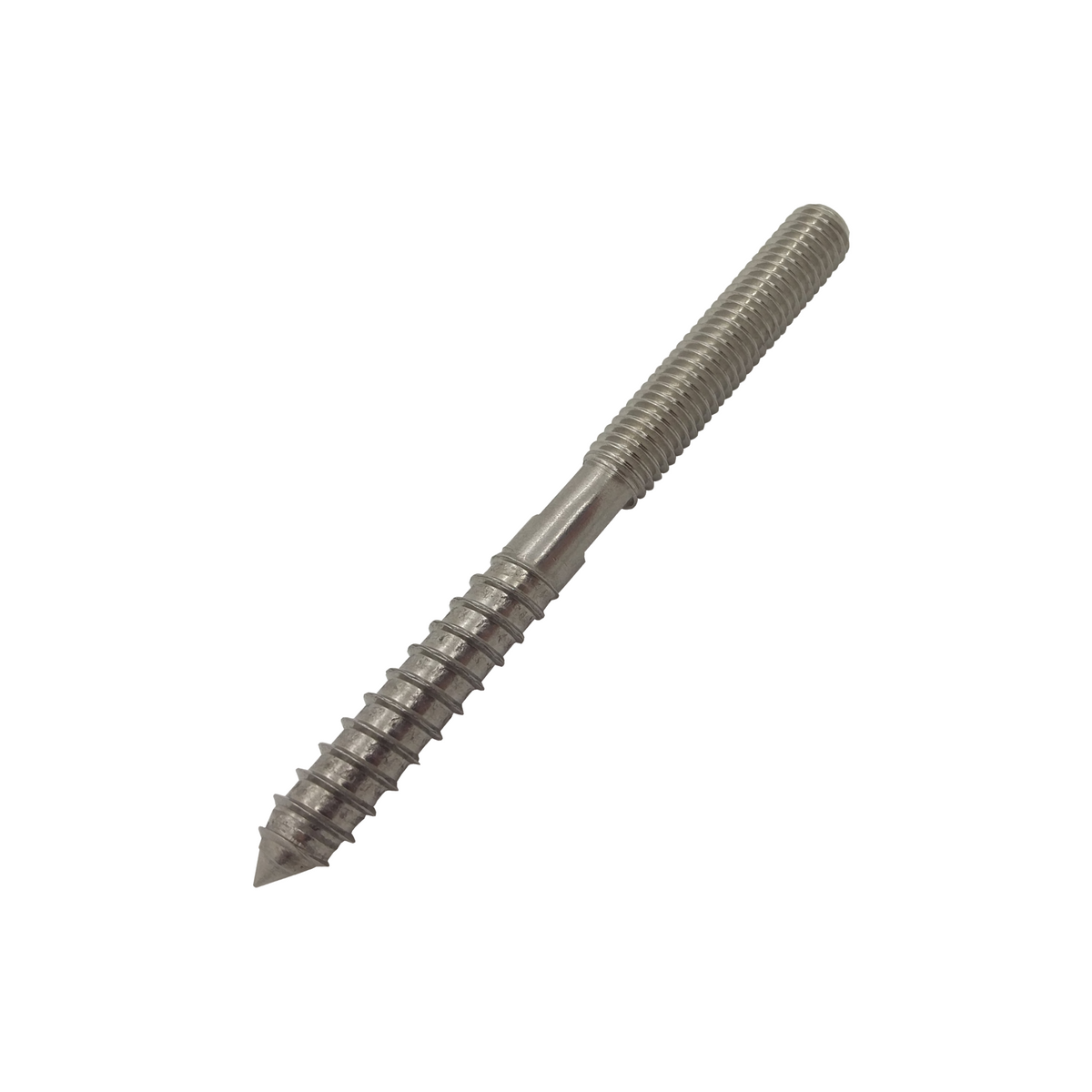

M8 x 40mm RH A4-AISI 316 Stainless Steel Dual Double Thread Screw - 208.515.408
M8 x 40mm RH A4-AISI 316 Stainless Steel Dual Double Thread Screw - 208.515.408
Product Code
SKU:208.515.408
981 auf Lager
Verfügbarkeit für Abholungen konnte nicht geladen werden
The M8 Right Hand Dual Threaded Stud is manufactured from marine-grade A4 AISI 316 stainless steel, offering excellent corrosion resistance for outdoor and marine environments.
Featuring a polished stainless steel finish, precision-cut 40mm right-hand metric thread and 40mm wood screw thread, this fitting provides a secure connection for timber installations, including cable balustrading, architectural fittings and garden trellis systems.
Also known as a wood-to-metal dowel screw or hanger bolt, it provides a durable fixing solution for compatible M8 female-threaded components.
Applications & Advice
Applications & Advice
Typical Applications:
- Cable balustrading and tensioning systems
- Garden trellis and green wall installations
- Architectural cable fittings
- Timber-mounted fixing systems
- Marine and outdoor applications
Always drill a suitable pilot hole to prevent timber splitting and ensure easier installation. The stud can be installed using a socket drive with a dome nut or two nuts locked together on the machine thread. Alternatively, the machine-threaded section can be secured directly into a drill chuck to drive the fitting into the pilot hole.
Use a low drill speed and torque setting to prevent damage to the threads.
Ensure connecting fittings have a compatible M8 right-hand female thread.
Dimensions
Dimensions
L: 90mm
L1: 40mm
L2: 40mm
G Thread: M8 RH
