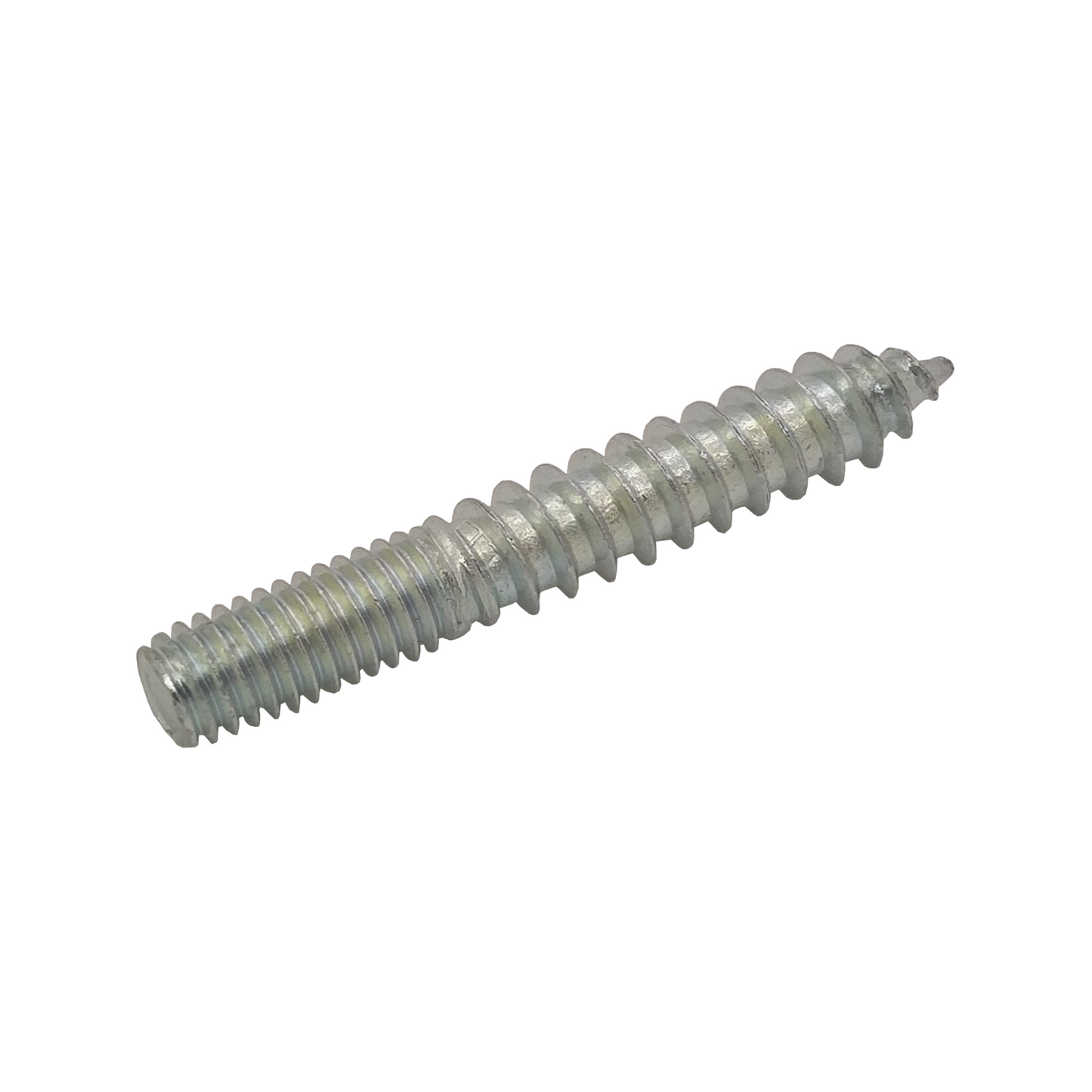

• Dual double thread wood screwm on a white background.
  • Dual Double Thread Wood Screw with labeled dimensions on a white background
1 2

M6 RH x 15mm x 25mm Wood BZP Dual Double Thread Wood Screw - 160.040.060

M6 RH x 15mm x 25mm Wood BZP Dual Double Thread Wood Screw - 160.040.060

£0.53 GBP
£0.53 GBP £0.53 GBP
Sale Ausverkauft
Versand wird beim Checkout berechnet

Product Code

160.040.060

10939 auf Lager

The M6 Bright Zinc Plated (BZP) Dual Threaded Stud provides a secure and practical fixing solution for attaching M6 female-threaded components to timber surfaces.

Featuring a precision-cut 25mm wood screw thread and 15mm machine thread, this fitting allows quick installation and is ideal for mounting cable grips, display fittings and other threaded components.

Also known as a wood-to-metal dowel screw or hanger bolt, it features a bright zinc plated finish for added corrosion protection.

Applications & Advice

Typical Applications:

  • Display and signage installations
  • Cable grips and suspension fittings
  • Timber-mounted fixing systems
  • General-purpose fastening applications

Always drill a 4mm pilot hole to prevent timber splitting and ensure easier installation.

The stud can be installed using a socket drive with a dome nut or two locked nuts fitted to the machine thread.

Alternatively, the machine-threaded section can be secured directly into a drill chuck to drive the fitting into the pilot hole.

Dimensions

Material: BZP Steel
D1: M6
L1: 25mm
L2: 15mm
ø: 6mm x 1 (Standard Metric Pitch)
