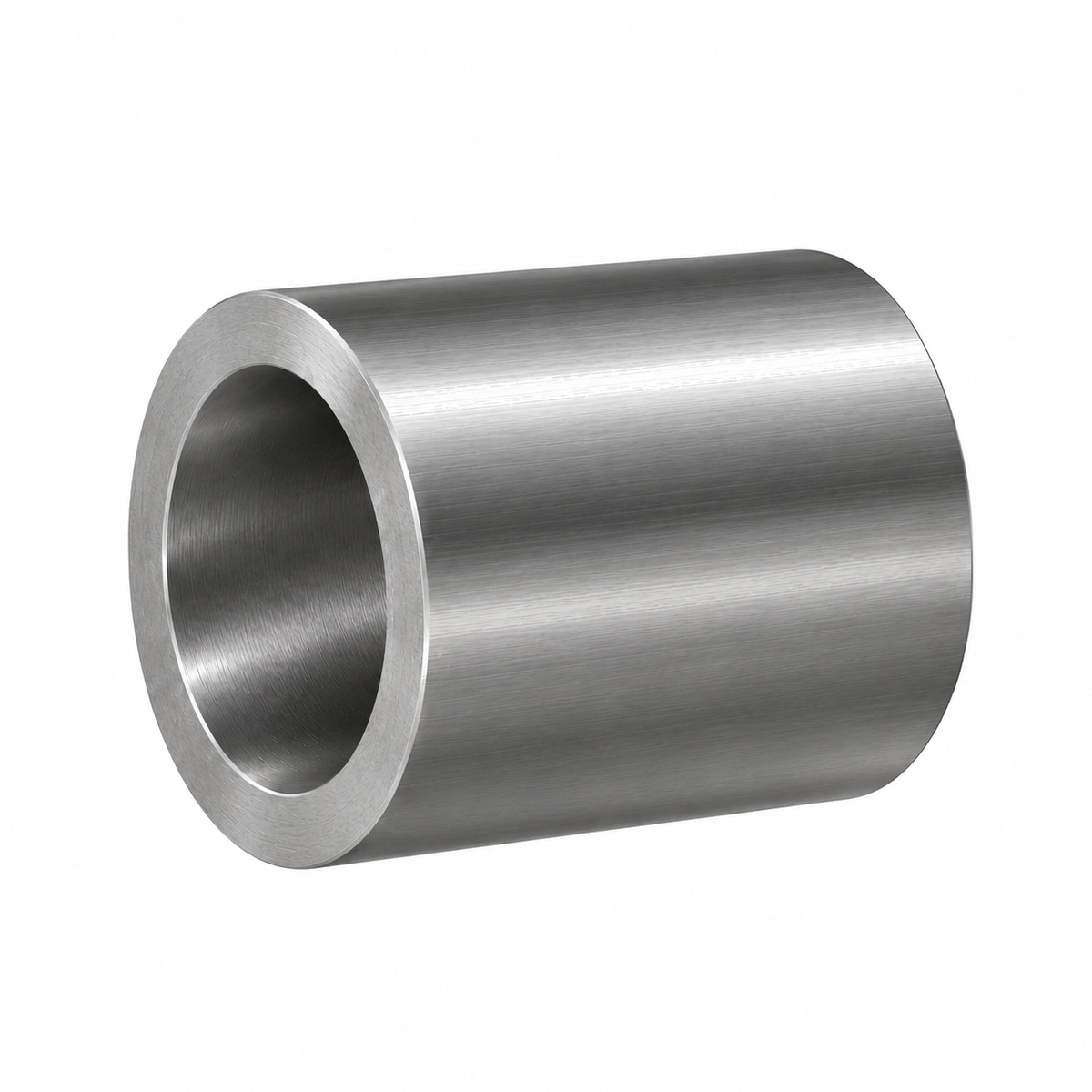

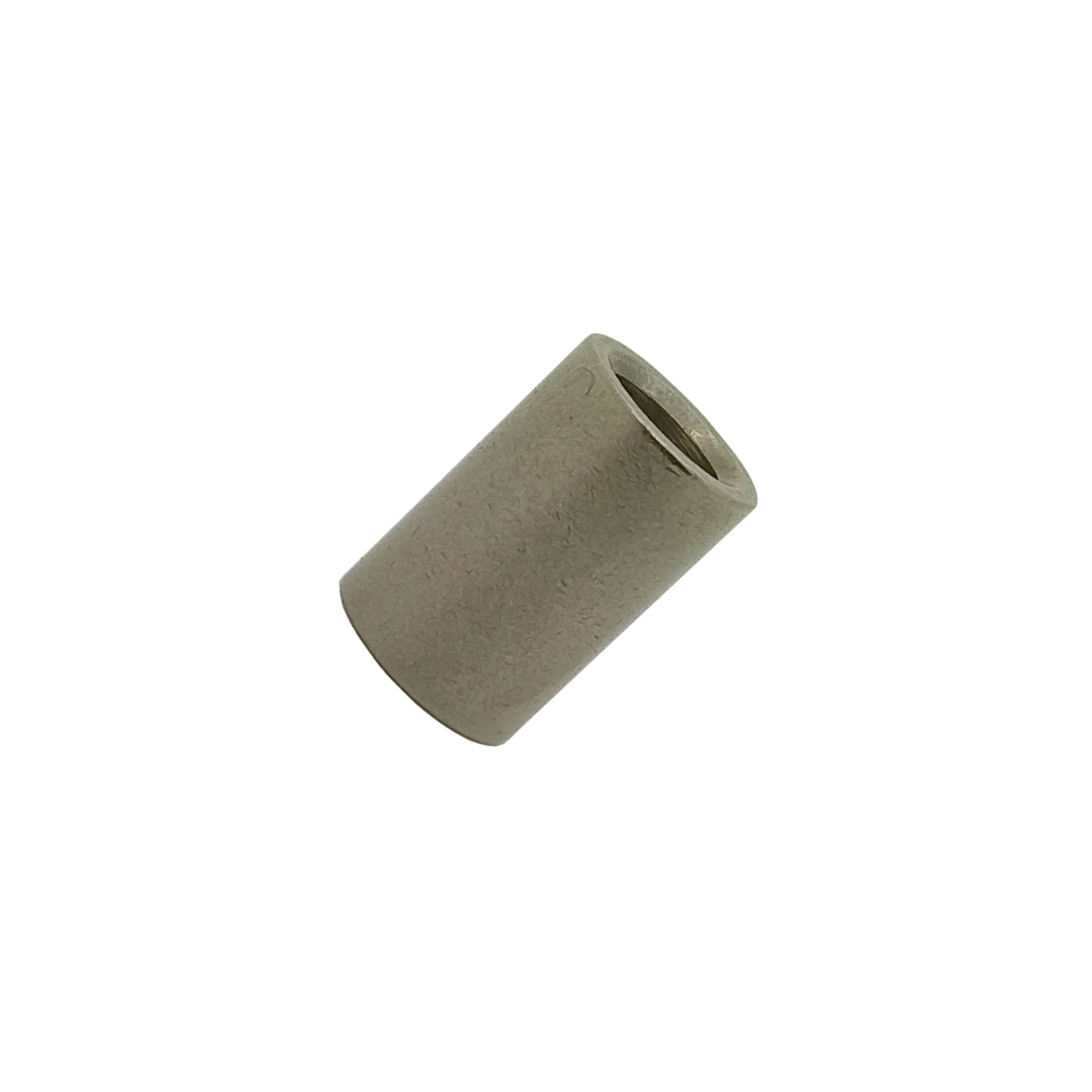

TECNI® 5mm A4-AISI 316 Stainless Steel Thin Walled Stop - 208.606.050

Suitable for use with stainless steel cable in non-marine environments where a compact swaged stop termination is required.

Always ensure the ferrule size is compatible with the cable diameter and use suitable tooling and the correct swaging procedure to achieve a secure termination.

Swaging guidance:
When used with 5mm 7x7 stainless steel cable, press the thin-walled stop in one plane using a YCP120C hydraulic crimper with the die marked “4 SS”, then rotate the fitting to complete the swage.

Tool Selector

Datasheet

End stops are not suitable for lifting applications. They are designed for suspension and locating purposes. The expected strength regarding this type of end termination is approximately 50% of the MBL of the wire rope. Testing must be performed to verify the strength of the assembly

For support with manufacturing requirements, further help or information, please contact a member of our Sales Team.
