5mm (3/16") AISI 304 Stainless Steel Ball Terminal BA3-6 - 127.000.050
5mm (3/16") AISI 304 Stainless Steel Ball Terminal BA3-6 - 127.000.050
Product Code
SKU:127.000.050
25 en stock
Impossible de charger la disponibilité du service de retrait
The 5mm (3/16") AISI 304 Stainless Steel Ball Fitting provides a reliable end termination for wire rope and control cable assemblies.
Manufactured from stainless steel in accordance with MIL-DTL-781, this precision-engineered fitting meets Boeing BACT14B and NAS494 requirements. It is DFARS compliant and suitable for aerospace, automotive and industrial cable applications.
Applications & Advice
Applications & Advice
Typical Applications:
- Aerospace and aviation cable assemblies
- Automotive control cable systems
- Gym and fitness equipment cables
- Precision mechanical control systems
Ensure the ball fitting is compatible with the wire rope diameter and construction. Suitable swaging equipment and correct installation procedures must be used to achieve a secure termination.
The expected termination strength is 50% of the wire rope's Minimum Breaking Load (MBL). Testing must be performed to verify the actual strength of the completed assembly.
For assistance with swaging, cable assembly manufacturing or technical requirements, please contact the TECNI Sales Team.
Technical Info
Technical Info

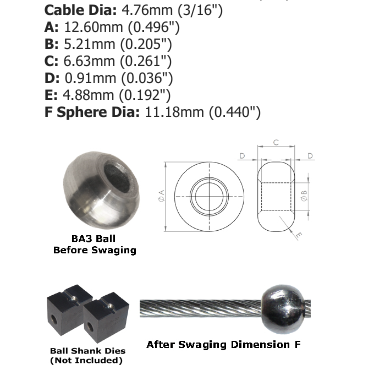

Dimensions
