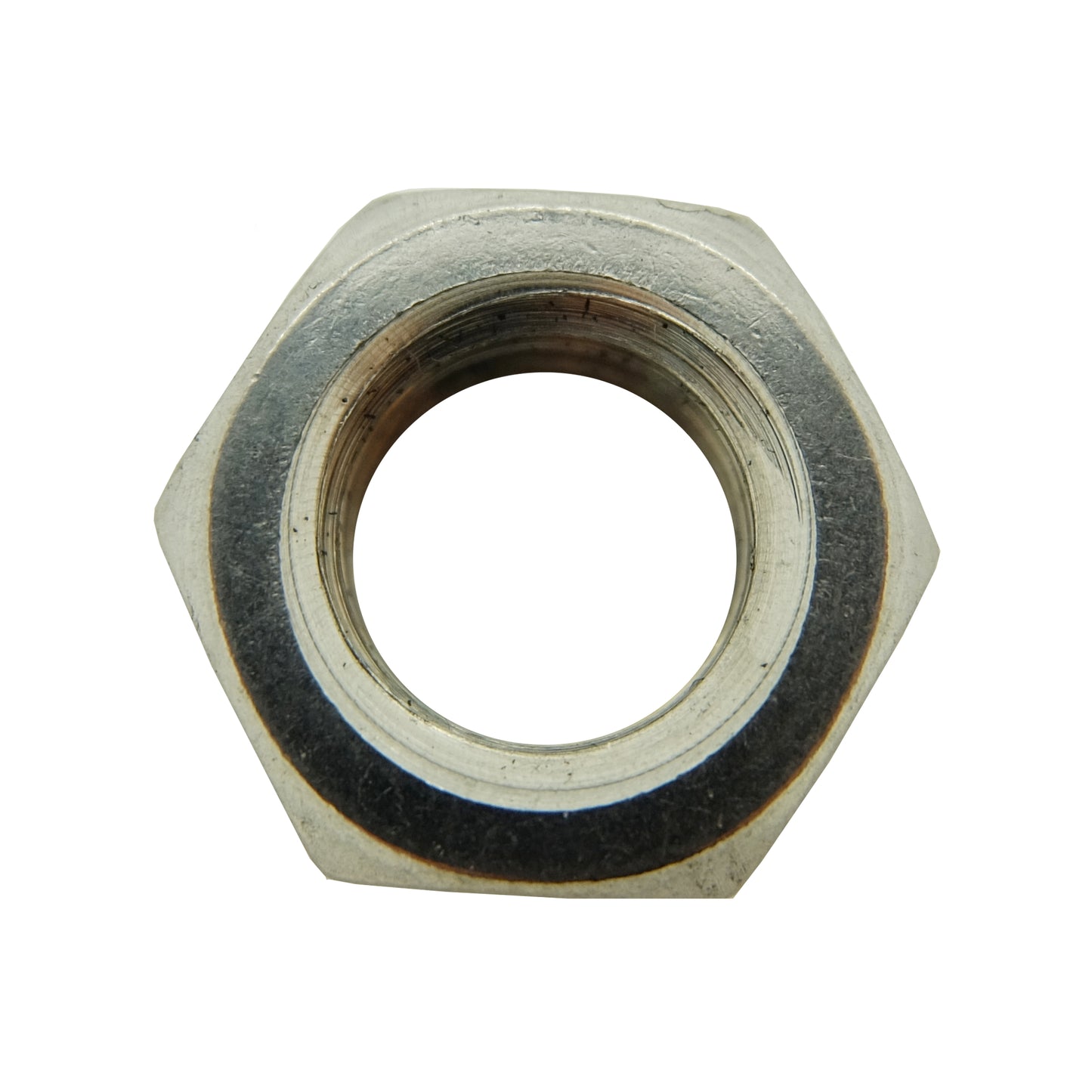

• A polished stainless steel low-profile hexagon nut
  • Stainless Steel Hexagon Nut with diagram showing dimensions on a white background.
1 2

M12 RH A4-AISI 316 Low Profile Stainless Steel Hexagon Nut - 208.468.412

M12 RH A4-AISI 316 Low Profile Stainless Steel Hexagon Nut - 208.468.412

£1.91 GBP
£1.91 GBP £1.91 GBP
Promotion Épuisé
Frais d'expédition calculés à l'étape de paiement.

Product Code

208.468.412

42 en stock

The M12 Low Profile Hexagon Nut is manufactured from marine-grade A4 AISI 316 stainless steel, offering excellent corrosion resistance for indoor, outdoor and marine applications.

Featuring a polished stainless steel finish and a compact, low-profile design, this nut provides a neat fastening solution where a reduced nut height is preferred.

Designed for use with compatible M12 right-hand threaded fittings, including swage studs, turnbuckles and eyebolts, it is ideal for wire rope assemblies, tensioning systems and architectural installations.

Available to order in any quantity, with no minimum order charge.

Applications & Advice

Typical Applications:

  • Wire rope assemblies and tensioning systems
  • M12 right-hand threaded swage studs
  • Stainless steel turnbuckles and rigging screws
  • M12 eyebolts and threaded fittings
  • Architectural and marine installations

Use with compatible M12 right-hand threaded fittings, ensuring the thread pitch matches the mating component. The low-profile design is particularly useful where installation space is limited or a discreet finish is required. When used with swage studs or tensioning fittings, ensure the nut is suitable for the intended locking or securing arrangement. Low-profile nuts have reduced thread engagement compared with standard full-height nuts and should not be substituted in load-bearing applications without confirming their suitability.

Dimensions

d: M12 x 1.75mm (Standard Metric Pitch)

e: 20mm

k: 8mm

s: 17mm
