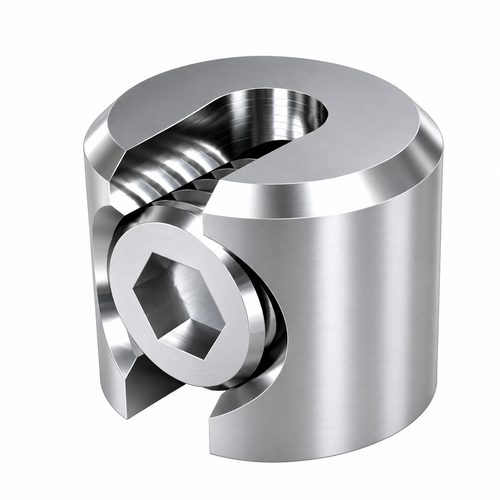

• Metallic circular C shaped clip with a hex screw on a white background. TECNI 351.710

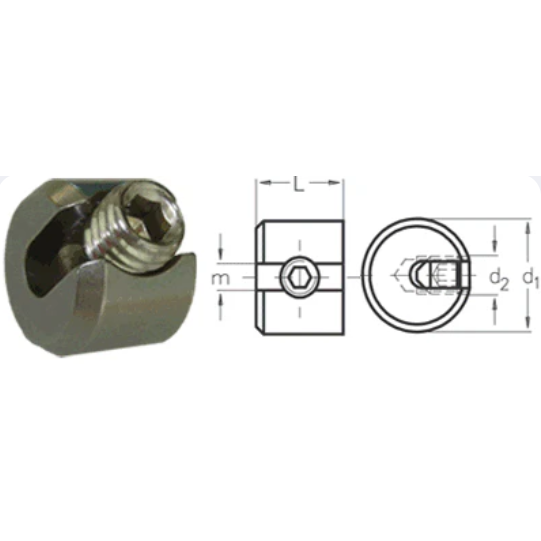

  • Dimensional drawing of a DIY Stop fitting on a white background
  • 3 Stainless Steel DIY stop fittings on a table with a flag background. TECNI 341.710.
1 4

M4 A4-AISI 316 Stainless Steel DIY Stop Fitting for 1mm, 1.5mm and 2mm cable - 351.710.002

M4 A4-AISI 316 Stainless Steel DIY Stop Fitting for 1mm, 1.5mm and 2mm cable - 351.710.002

£3.03 GBP
£3.03 GBP £3.03 GBP
Promotion Épuisé
Frais d'expédition calculés à l'étape de paiement.

Product Code

351.710.002

677 en stock

M4 Stainless Steel DIY Stop fitting (suitable for 1mm, 1.5mm & 2mm cable) - 351.710.002

Designed for locating purpose or suspension. Not suitable for lifting.

Designed for use with 7x7 and 7x19 construction cable. They are not suitable for use with 1x19 as the DIY stop fitting tends to slip.

Applications & Advice

  • Shop fitting and display
  • Catenary
  • Trellis

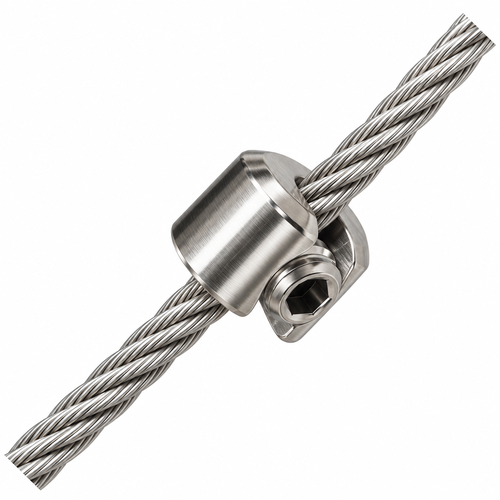

To install remove the M4 grub screw insert the cable into the slot then tighten the grub screw until secure.

Technical Info

They are not suitable for use with 1x19 as the DIY stop fitting tends to slip.

Dimensions

d1: 10mm
d2: M4 RH
L: 8mm
M: 2.2mm

Downloads

Video

DIY Stop Video

Afficher tous les détails
