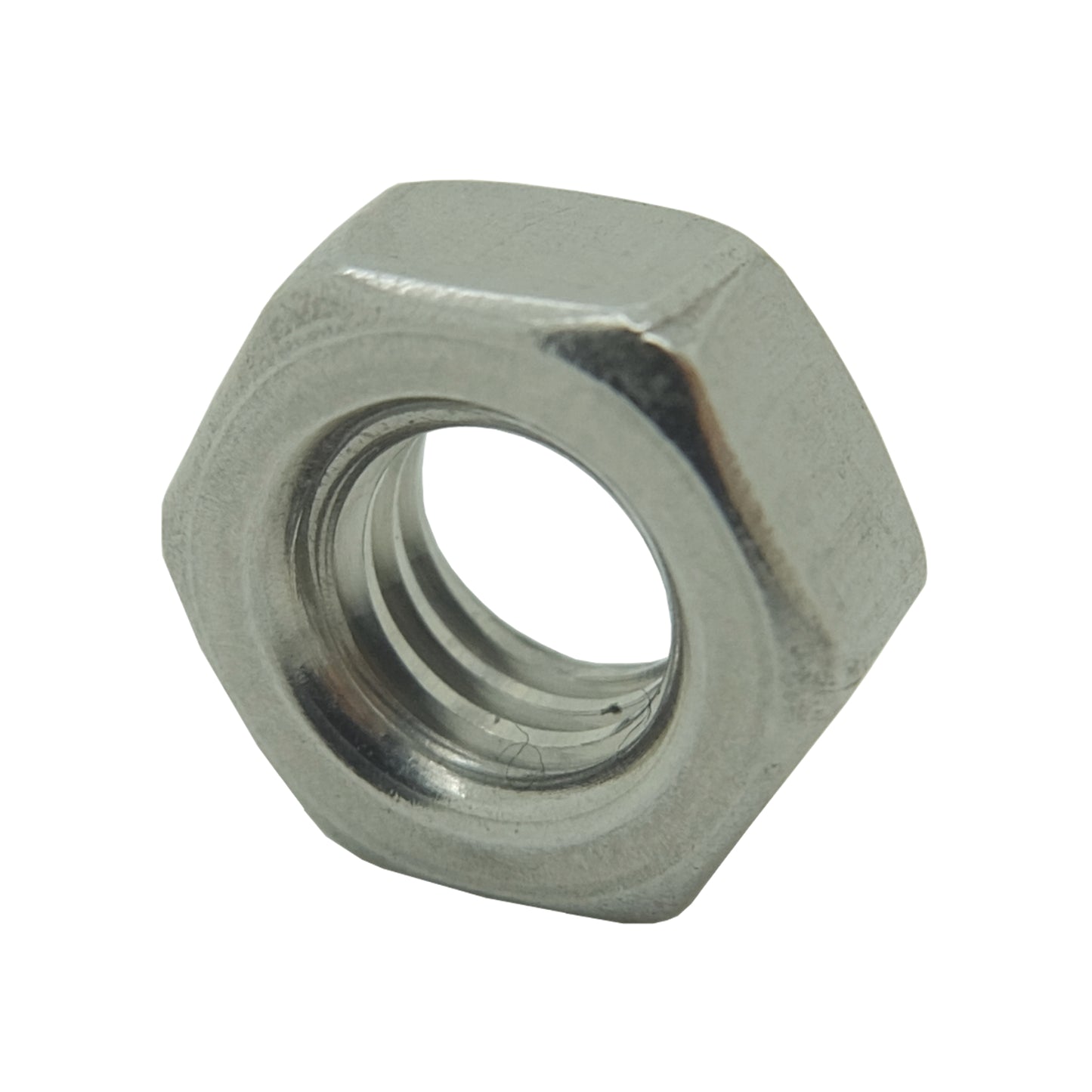

• A stainless steel hexagon nut with a visible threaded interior.
  • Technical drawing of a hexagon nut with dimensions on a white background.
1 2

M8 LH A4-AISI 316 Stainless Steel Hexagon Nut DIN 934 - 303.511.408 .

M8 LH A4-AISI 316 Stainless Steel Hexagon Nut DIN 934 - 303.511.408 .

£1.28 GBP
£1.28 GBP £1.28 GBP
Promotion Épuisé
Frais d'expédition calculés à l'étape de paiement.

Product Code

303.511.408

579 en stock

The M8 Left-Hand Hexagon Full Nut is manufactured from marine-grade A4 AISI 316 stainless steel to DIN 934 specifications, offering excellent corrosion resistance for indoor, outdoor and marine applications.

Featuring a polished stainless steel finish, left-hand thread and traditional hexagonal design, this versatile nut provides a secure fastening solution when used with compatible M8 left-hand threaded bolts, studs and fittings.

Suitable for a wide range of architectural, mechanical and general assembly applications where left-hand threaded connections are required.

Available to order in any quantity, with no minimum order charge.

Applications & Advice

Typical Applications:

  • Left-hand threaded bolts and fittings
  • Marine and outdoor fastening applications
  • Architectural metalwork and installations
  • Mechanical equipment and assemblies
  • Tensioning systems requiring left-hand threads

Use only with compatible M8 left-hand threaded bolts, studs and fittings. Left-hand threads tighten anticlockwise and loosen clockwise, unlike standard right-hand threads. Ensure the thread size, pitch and direction match the mating component before installation. Tighten using a suitable spanner or socket, taking care to avoid overtightening. For applications exposed to vibration, consider an appropriate locking method.

Dimensions

d: M8 LH

e: 14.4mm

k: 6.5mm

s: 13mm

Afficher tous les détails
