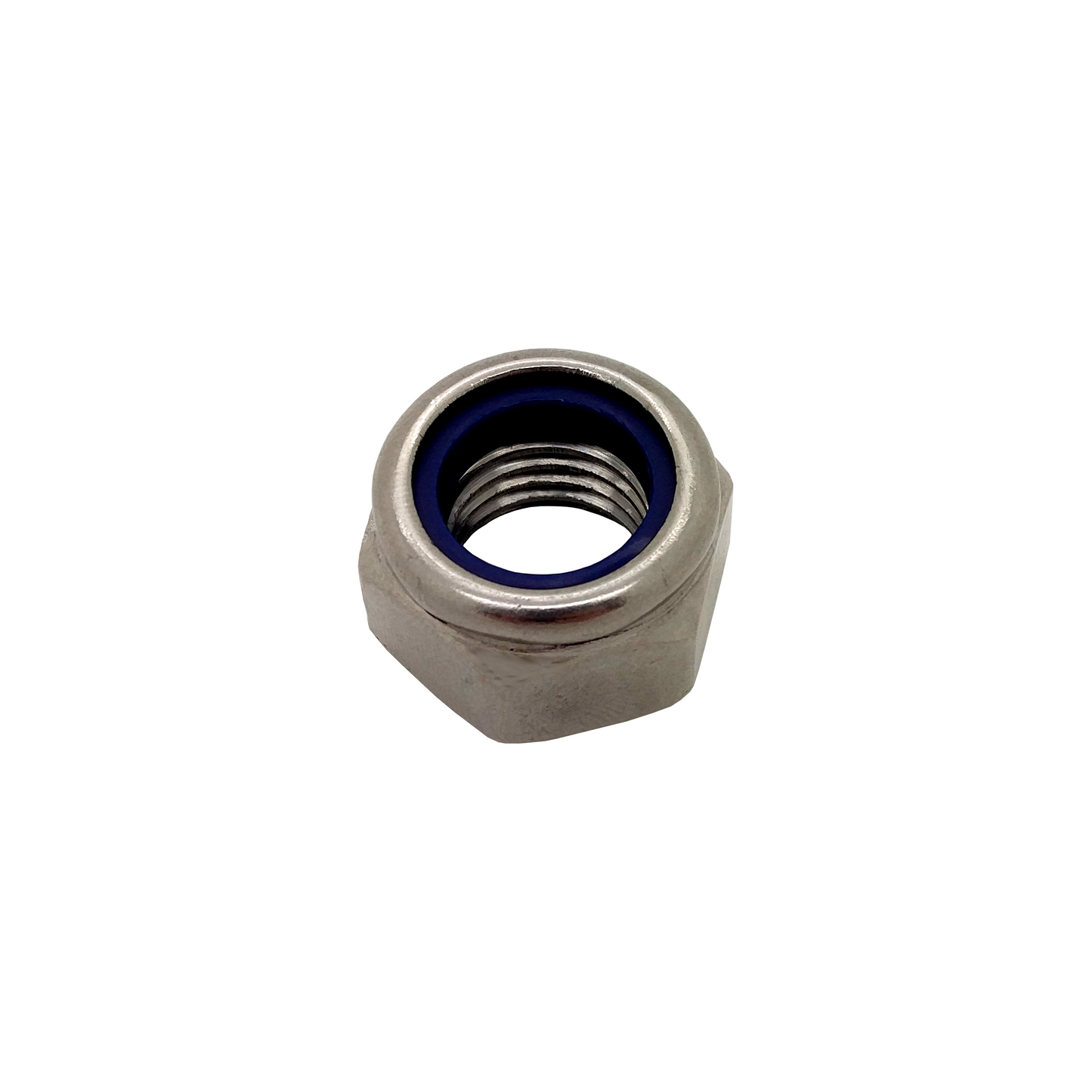

• A stainless steel hexagon Nyloc lock nut with a blue nylon collar insert.
  • Diagram of a stainless steel hexagon Nyloc lock nut with a blue nylon collar insert with dimensions on a white background.
1 2

M8 RH A4-AISI 316 Stainless Hexagon Nyloc Nut DIN 985 - 303.514.408 .

M8 RH A4-AISI 316 Stainless Hexagon Nyloc Nut DIN 985 - 303.514.408 .

£0.67 GBP
£0.67 GBP £0.67 GBP
Promotion Épuisé
Frais d'expédition calculés à l'étape de paiement.

Product Code

303.514.408

185 en stock

The M8 Hexagon Nyloc Lock Nut is manufactured from marine-grade A4 AISI 316 stainless steel to DIN 985 specifications, offering excellent corrosion resistance for indoor, outdoor and marine applications.

Featuring an integrated nylon locking insert, this nut helps resist loosening caused by vibration and movement, providing a secure fastening solution for compatible M8 threaded bolts, studs and fittings.

Suitable for a wide range of architectural, mechanical and general assembly applications where additional resistance to loosening is required.

Available to order in any quantity, with no minimum order charge.

Applications & Advice

Typical Applications:

  • Stainless steel bolts and threaded fittings
  • Marine and outdoor fastening applications
  • Mechanical equipment and assemblies
  • Architectural metalwork and installations
  • Vibration-resistant fastening systems

Use with compatible M8 right-hand threaded bolts, studs and fittings. The nylon locking insert grips the mating thread to help prevent the nut from loosening under vibration or movement. Ensure the bolt thread extends sufficiently through the nylon insert to achieve effective locking. Tighten using a suitable spanner or socket, taking care to avoid overtightening. Check the suitability of the nylon insert for the intended operating temperature and application.

Dimensions

d: M8 x 1.25mm (Standard Metric Pitch)

e: 14.4mm

k: 8mm

s: 13mm
