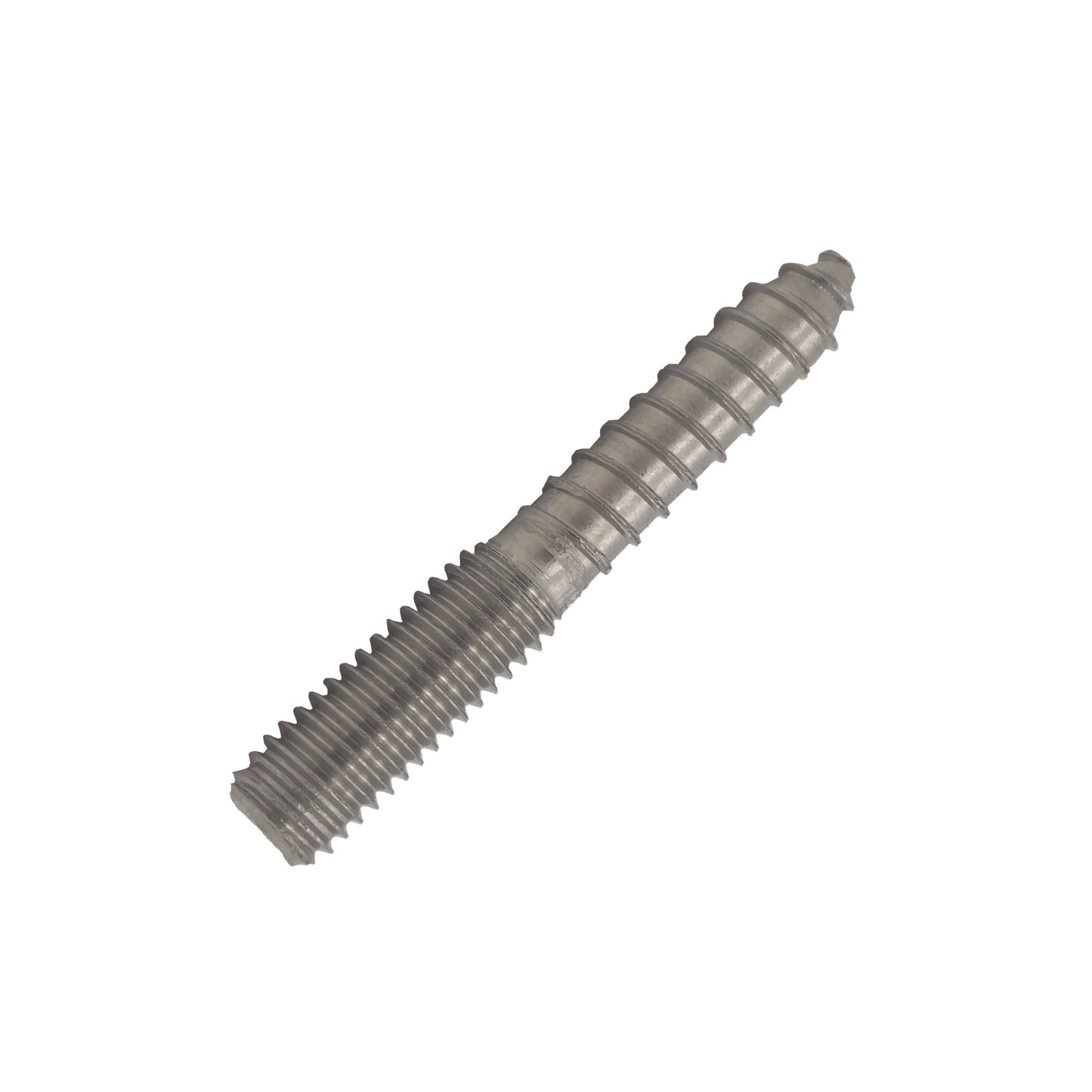

• Stainless Steel Dual Thread Dowel Screw on a white background.
  • Screw with a technical drawing on a white background
1 2

M5x30mm RH A4-AISI 316 Stainless Steel Dual Double Thread Screw - 208.515.405

M5x30mm RH A4-AISI 316 Stainless Steel Dual Double Thread Screw - 208.515.405

£5.21 GBP
£5.21 GBP £5.21 GBP
Promotion Épuisé
Frais d'expédition calculés à l'étape de paiement.

Product Code

208.515.405

57 en stock

The M5 AISI 316 Stainless Steel Dual Threaded Stud provides a durable and corrosion-resistant fixing solution for attaching M5 female-threaded components to timber surfaces.

Featuring a precision-cut 30mm metric thread and 43mm wood screw thread, this polished stainless steel fitting is ideal for balustrading, architectural installations and garden trellis systems.

Also known as a wood-to-metal dowel screw or hanger bolt, it offers a secure and practical connection for a range of applications.

Applications & Advice

Typical Applications:

  • Stainless steel cable balustrading
  • Garden trellis and green wall systems
  • Architectural cable installations
  • Timber-mounted cable fittings
  • General-purpose fixing applications

Always drill a suitable pilot hole to prevent timber splitting and ensure easier installation.

The stud can be installed using a socket drive with a dome nut or two locked nuts fitted to the machine thread.

Alternatively, the machine-threaded section can be secured directly into a drill chuck for installation.

Use a low drill speed and torque setting to prevent damage to the threads.

Dimensions

G: M5

L1: 31mm

L2: 44mm

Overall size: 82mm
