M6x5 DIN 914 Socket Set Screw A4-AISI 316 with Cone Point - 309.140.605

M6x5 DIN 914 Socket Set Screw A4-AISI 316 with Cone Point - 309.140.605

£0.32 GBP
£0.32 GBP £0.32 GBP
Promotion Épuisé
Frais d'expédition calculés à l'étape de paiement.

Product Code

309.140.605

21755 en stock

The M6 Cone Point Grub Screw is manufactured from corrosion-resistant A4 AISI 316 stainless steel to DIN 914 / EN ISO 4027 standards.

Featuring a hex socket drive and cone point tip, this grub screw is designed for use with TECNI 4mm Balustrade Tension Fittings, providing a secure fastening connection.

These grub screws are supplied as standard with TECNI balustrade tension fittings but are also available separately as replacement or spare parts.

Applications & Advice

Typical Applications:

  • TECNI 4mm balustrade tension fittings
  • Replacement grub screws for balustrade systems
  • Stainless steel cable fixing assemblies
  • General-purpose mechanical fastening

Use a 3mm Allen key for installation and adjustment.

Ensure the grub screw is correctly positioned and tightened to securely retain the cable within the compatible balustrade fitting.

Avoid overtightening, which may damage the screw, fitting or cable.

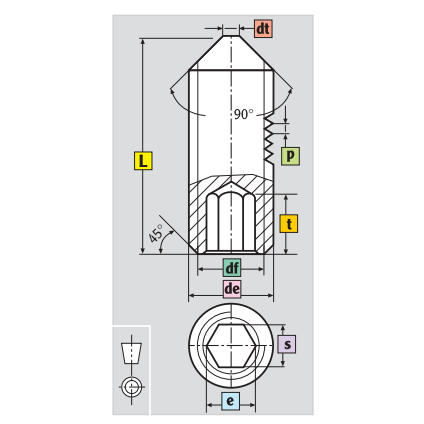

Dimensions

P: 1
DE: 5.97mm
DF: 4.74mm
DT: 1.5mm
S:3mm
E:3.44mm
T:3.5mm
