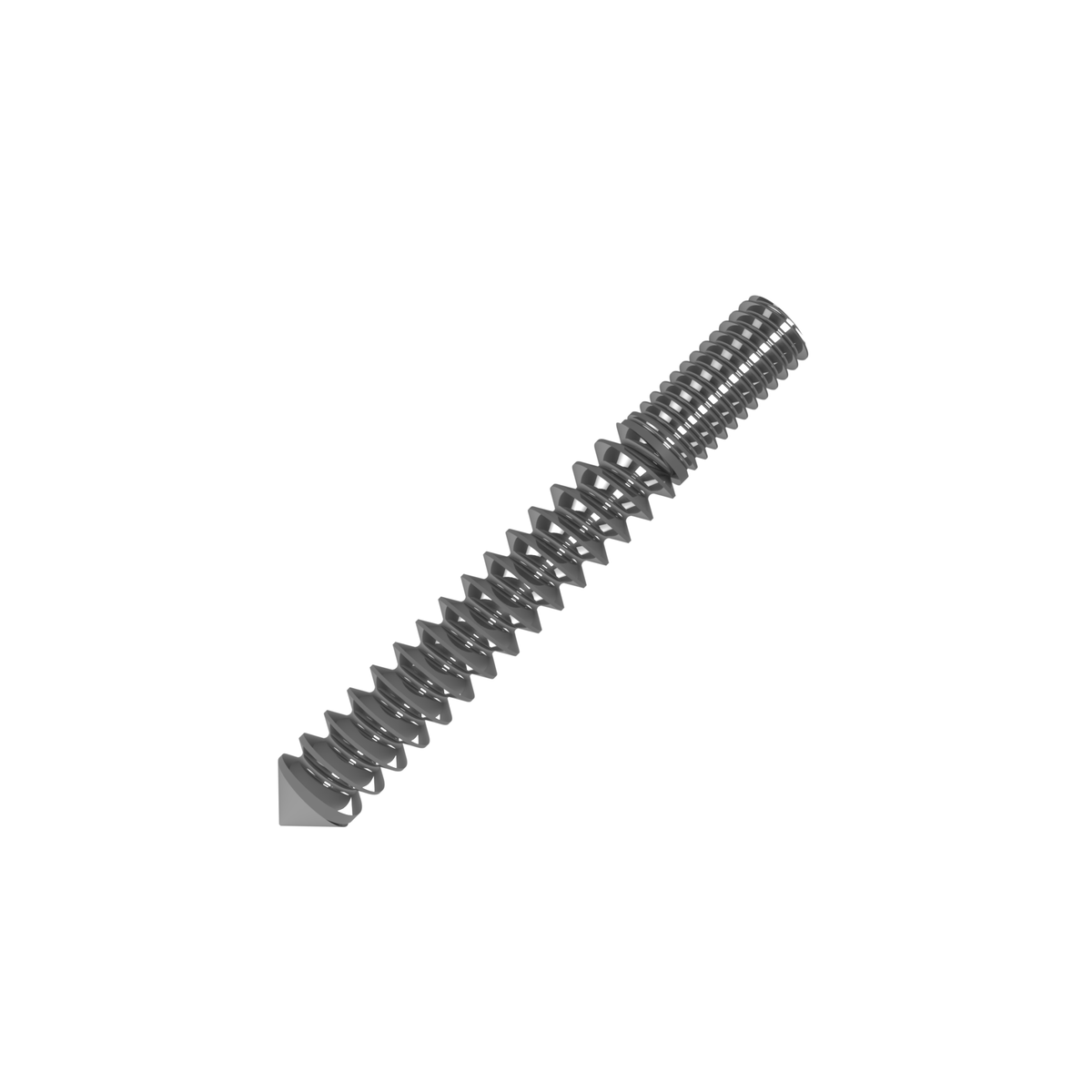

• Metal screw component on a white background
  • An isolated image of a stainless steel dual thread dowel screw with visible thread details on a white background.
1 2

M6x10mmx50mm RH A2-AISI 304 Stainless Steel Dual Thread Dowel Screw - 208.517.406

M6x10mmx50mm RH A2-AISI 304 Stainless Steel Dual Thread Dowel Screw - 208.517.406

£1.06 GBP
£1.06 GBP £1.06 GBP
Promotion Épuisé
Frais d'expédition calculés à l'étape de paiement.

Product Code

208.517.406

850 en stock

The M6 AISI 304 Stainless Steel Dual Threaded Stud provides a secure fixing point for attaching M6 female-threaded components to timber surfaces.

Featuring a precision-cut 35mm wood screw thread and 11mm machine thread, this fitting allows quick installation and is ideal for mounting crossover clips, cable grips and display fittings.

Also known as a wood-to-metal dowel screw or hanger bolt, it offers a practical and durable fixing solution.

Applications & Advice

Typical Applications:

  • Cable trellis and green wall systems
  • Crossover clips and cable grips
  • Display and signage installations
  • Timber-mounted cable systems
  • General-purpose fixing application

Always drill a suitable pilot hole to prevent timber splitting and ensure easier installation.

The stud can be installed using a socket drive with a dome nut or two locked nuts fitted to the machine thread.

Alternatively, the machine-threaded section can be secured directly into a drill chuck for installation.

Use a low drill speed and torque setting to prevent damage to the threads.

Dimensions

d: 6mm

L: 50mm

H: 35mm

M: 11mm
