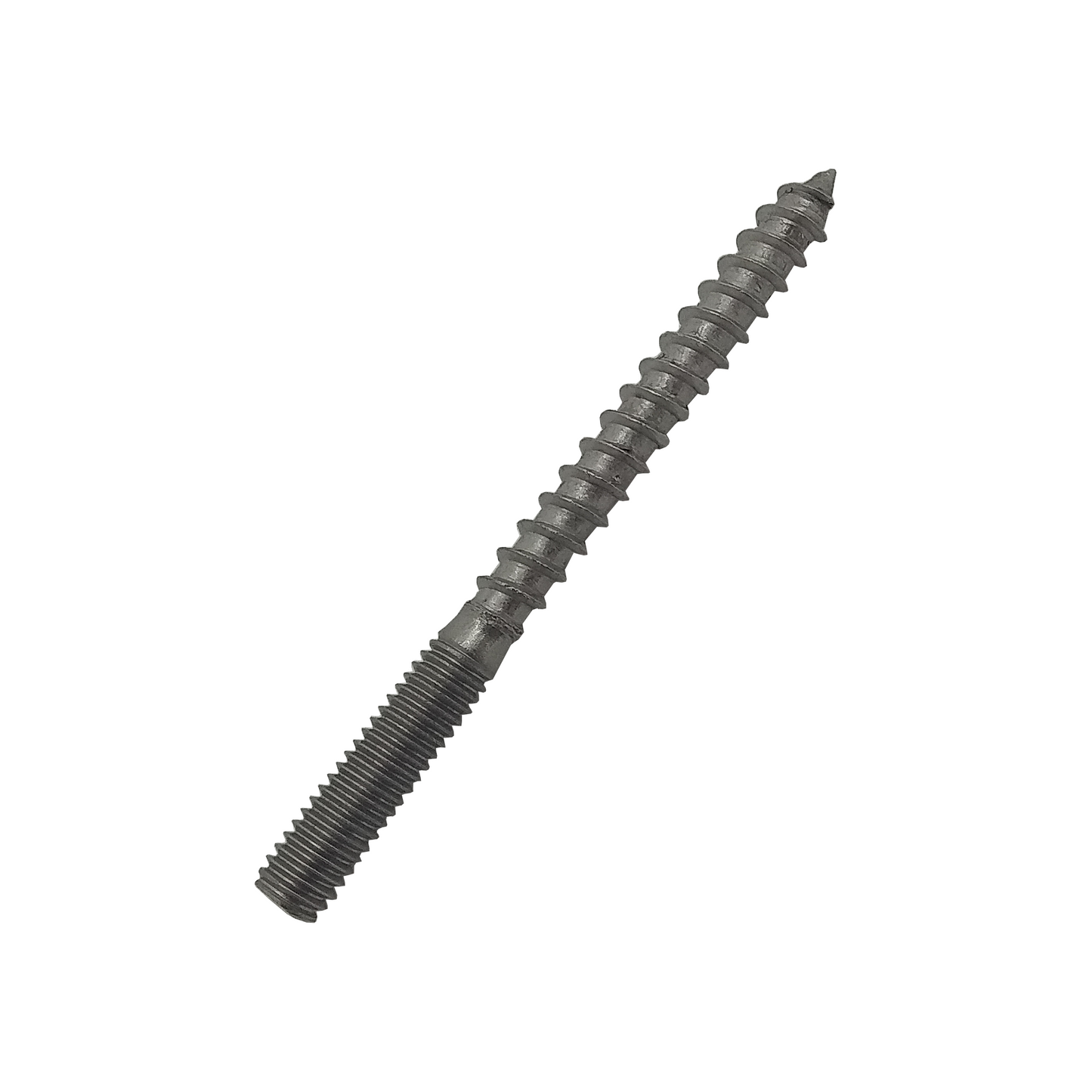

• An isolated image of a stainless steel dual double thread wood screw with a visible thread pattern.208.072.206 on a white background.
  • Technical drawing of a screw with labeled dimensions on a white background
1 2

M6x70mm RH A2-AISI 304 Stainless Steel Dual Double Thread Wood Screw - 208.072.206.

M6x70mm RH A2-AISI 304 Stainless Steel Dual Double Thread Wood Screw - 208.072.206.

£1.95 GBP
£1.95 GBP £1.95 GBP
Promotion Épuisé
Frais d'expédition calculés à l'étape de paiement.

Product Code

208.072.206

200 en stock

The M6 Right Hand Stainless Steel Dual Threaded Stud provides a durable, corrosion-resistant fixing solution for timber installations, including outdoor and architectural applications.

Featuring a 20mm metric thread and 47mm wood screw thread, this fitting allows easy installation and is ideal for cable balustrading, garden trellis systems and other timber-mounted fittings.

Also known as a wood-to-metal dowel screw or hanger bolt, it provides a secure connection for compatible M6 female-threaded components.

Applications & Advice

Typical Applications:

  • Cable balustrading systems
  • Garden trellis and green wall installations
  • Architectural cable fittings
  • Timber-mounted cable systems
  • Outdoor fixing applications

Always drill a suitable pilot hole to prevent timber splitting and ensure easier installation. The stud can be installed using a socket drive with a dome nut or two nuts locked together on the machine thread. Alternatively, the machine-threaded section can be secured directly into a drill chuck to drive the fitting into the pilot hole.

Use a low drill speed and torque setting to prevent damage to the threads.

Ensure connecting fittings have a compatible M6 right-hand female thread.

Dimensions

D1 - M6

L2 - 20mm

L1 - 47mm
