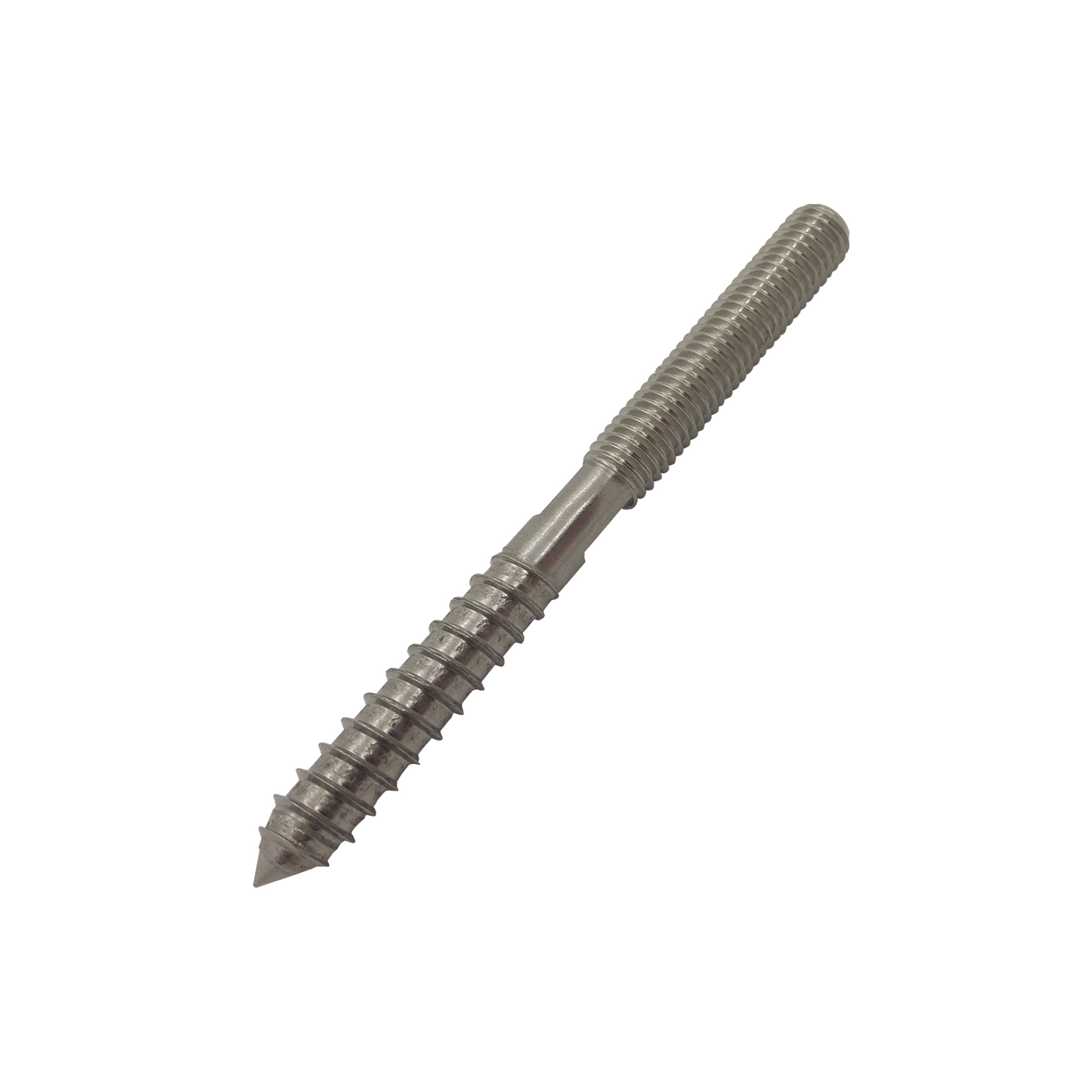

M6x35mm LH A4-AISI 316 Stainless Steel Dual Double Thread Wood Screw (35mm wood/stone screw) - 208.516.406

Typical Applications:

• Cable balustrading and tensioning systems
• Garden trellis and green wall installations
• Architectural cable fittings
• Timber and masonry fixings
• Marine and outdoor applications

Always drill a suitable pilot hole to prevent timber splitting and ensure easier installation. For masonry applications, use a suitable nylon wall plug. The stud can be installed using a socket drive with a dome nut or two locked nuts fitted to the machine thread. Alternatively, the machine-threaded section can be secured directly into a drill chuck to drive the fitting into the pilot hole.

Use a low drill speed and torque setting to prevent damage to the threads.

Ensure any connecting fittings have a compatible M6 left-hand female thread.

• Material: A4 AISI 316 Stainless Steel
• Thread Size: M6
• Metric Thread Direction: Left Hand (LH)
• Metric Thread Length: 35mm
• Wood Screw Thread Length: 40mm
• Thread Type: Dual Threaded (Wood to Metal)
• Finish: Stainless Steel
• Installation: Timber or masonry with a suitable nylon wall plug
• Also Known As: Wood-to-Metal Dowel Screw / Hanger Bolt

G Thread: M6 RH
L: 80mm
L1: 35mm
L2: 40mm
