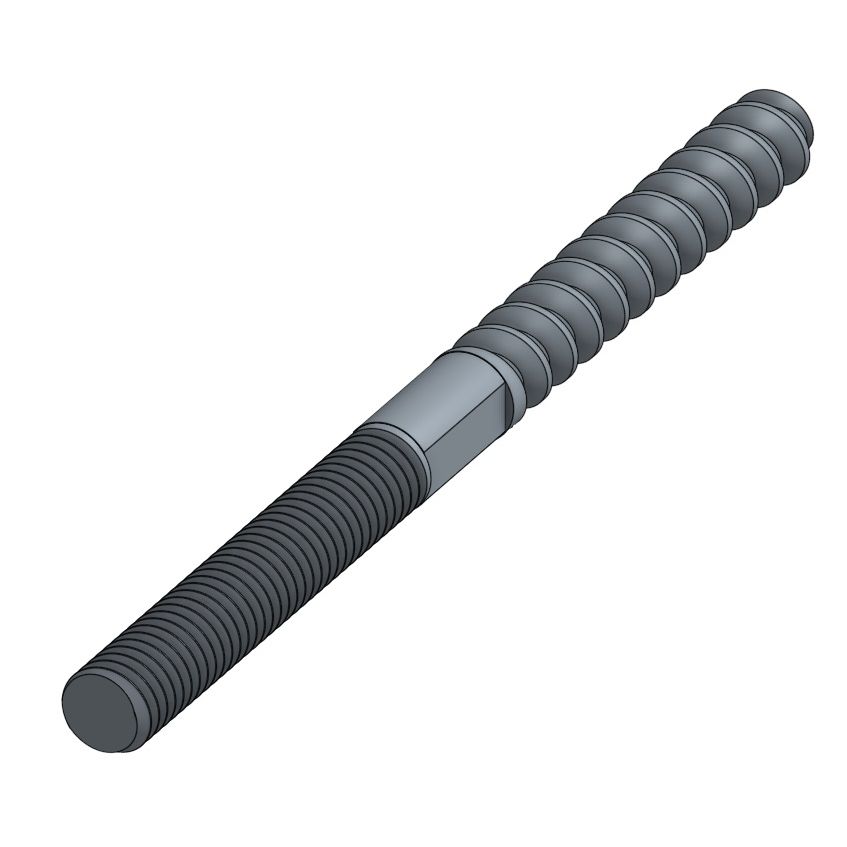

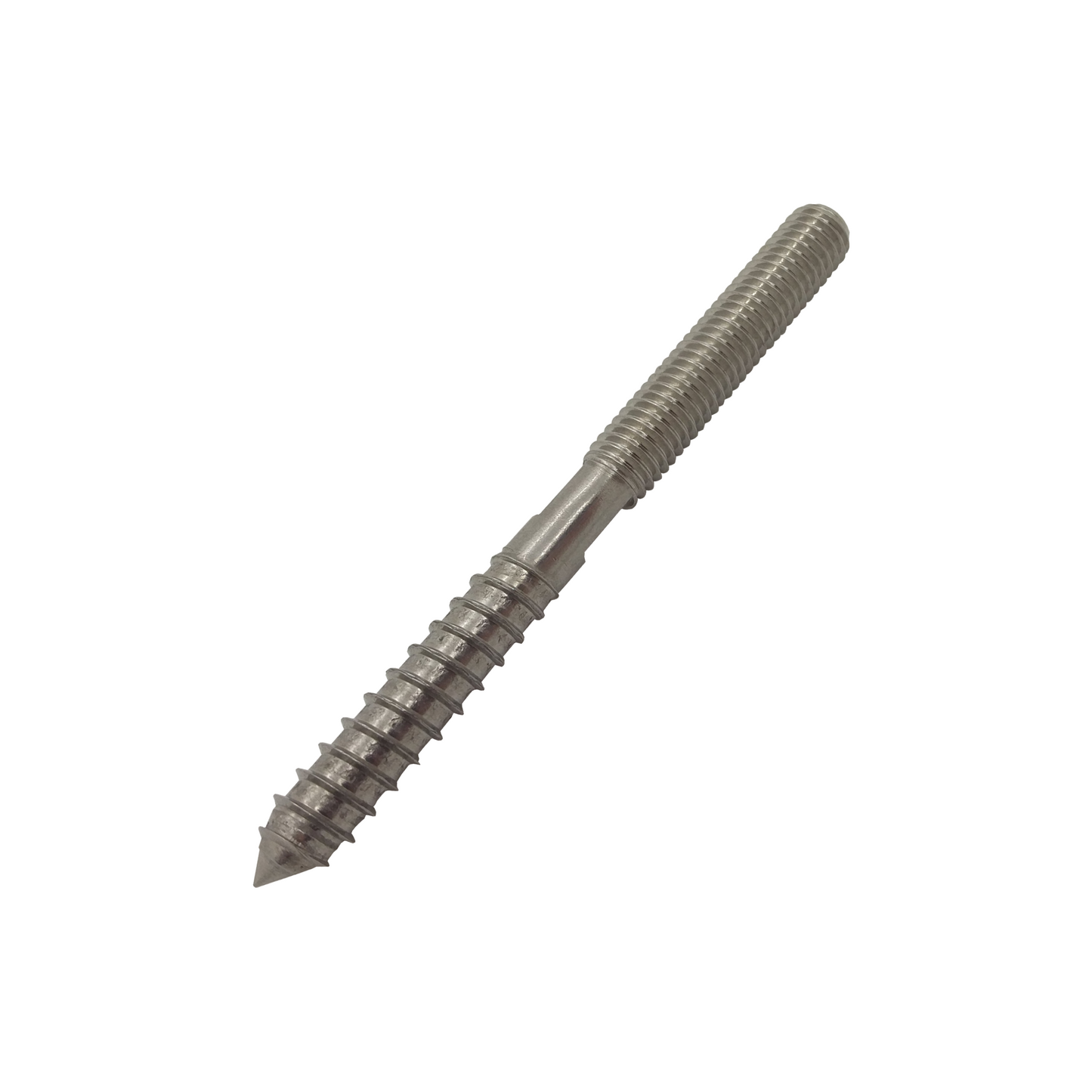

M6x35mm RH A4-AISI 316 Stainless Steel Dual Double Thread Wood Screw (35mm wood/stone screw) - 208.515.406

M6x35mm RH A4-AISI 316 Stainless Steel Dual Double Thread Wood Screw (35mm wood/stone screw) - 208.515.406

£2.28 GBP
£2.28 GBP £2.28 GBP
Promotion Épuisé
Frais d'expédition calculés à l'étape de paiement.

Product Code

208.515.406

977 en stock

The M6 Right Hand Dual Threaded Stud is manufactured from marine-grade A4 AISI 316 stainless steel, offering excellent corrosion resistance for outdoor and marine environments.

Featuring a precision-cut 35mm right-hand metric thread and 40mm wood screw thread, this fitting provides a secure connection for timber installations. It can also be used in masonry with a suitable nylon wall plug.

Also known as a wood-to-metal dowel screw or hanger bolt, it is suitable for a range of architectural and cable fixing applications.

Applications & Advice

Typical Applications:

  • Cable balustrading and tensioning systems
  • Garden trellis and green wall installations
  • Architectural cable fittings
  • Timber and masonry fixings
  • Marine and outdoor applications

Always drill a suitable pilot hole to prevent timber splitting and ensure easier installation. For masonry applications, use a suitable nylon wall plug. The stud can be installed using a socket drive with a dome nut or two nuts locked together on the machine thread. Alternatively, the machine-threaded section can be secured directly into a drill chuck to drive the fitting into the pilot hole.

Use a low drill speed and torque setting to prevent damage to the threads.

Ensure any connecting fittings have a compatible M6 right-hand female thread.

Dimensions

G Thread: M6 RH
L: 80mm
L1: 35mm
L2: 40mm
