Stainless Steel A4-AISI 316 Jaw & Stud Rigging Screw Standard Type
Stainless Steel A4-AISI 316 Jaw & Stud Rigging Screw Standard Type
Product Code
SKU:301.211.005
Stock bas : 6 restant(s)
Impossible de charger la disponibilité du service de retrait

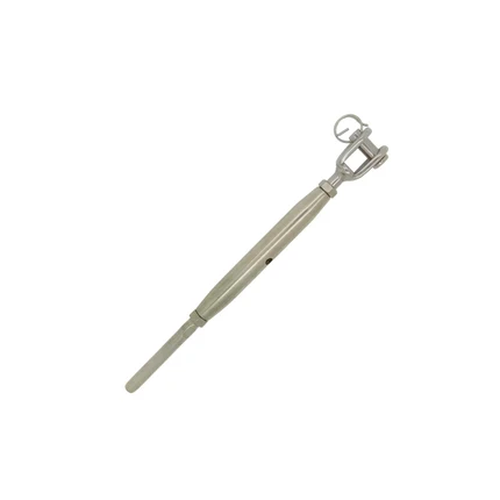

This stainless steel jaw & stud rigging screw terminal is manufactured from A4-AISI 316 marine grade stainless steel, providing excellent corrosion resistance for outdoor and marine environments. Suitable for wire rope diameters from 2.5mm to 10mm, depending on the fitting size, it combines a jaw connection with a swage stud terminal and an adjustable centre body.
Rotating the centre body increases or decreases the overall assembly length, allowing precise adjustment of cable tension. Its robust construction makes it a versatile solution for wire rope tensioning and rigging applications.
Applications & Advice
Applications & Advice
Suitable for catenary systems, balustrade installations, yacht rigging and other wire rope applications where adjustable tension is required.
For installation, insert the correctly sized wire rope into the swage terminal and secure using a suitable hydraulic press and the correct swaging procedure. Connect the jaw end to a compatible fixing point and rotate the centre body to achieve the required cable tension.
TECNI can also manufacture bespoke wire rope assemblies to your drawings and specifications. Contact our sales team for further information.
