TECNI® YCF-630 Manual Hydraulic Crimper with Die Sets - 101.630.900

TECNI® YCF-630 Manual Hydraulic Crimper with Die Sets - 101.630.900

£1,690.24 GBP
£1,690.24 GBP £1,690.24 GBP
Promotion Épuisé
Frais d'expédition calculés à l'étape de paiement.

Product Code

101.630.900

En stock

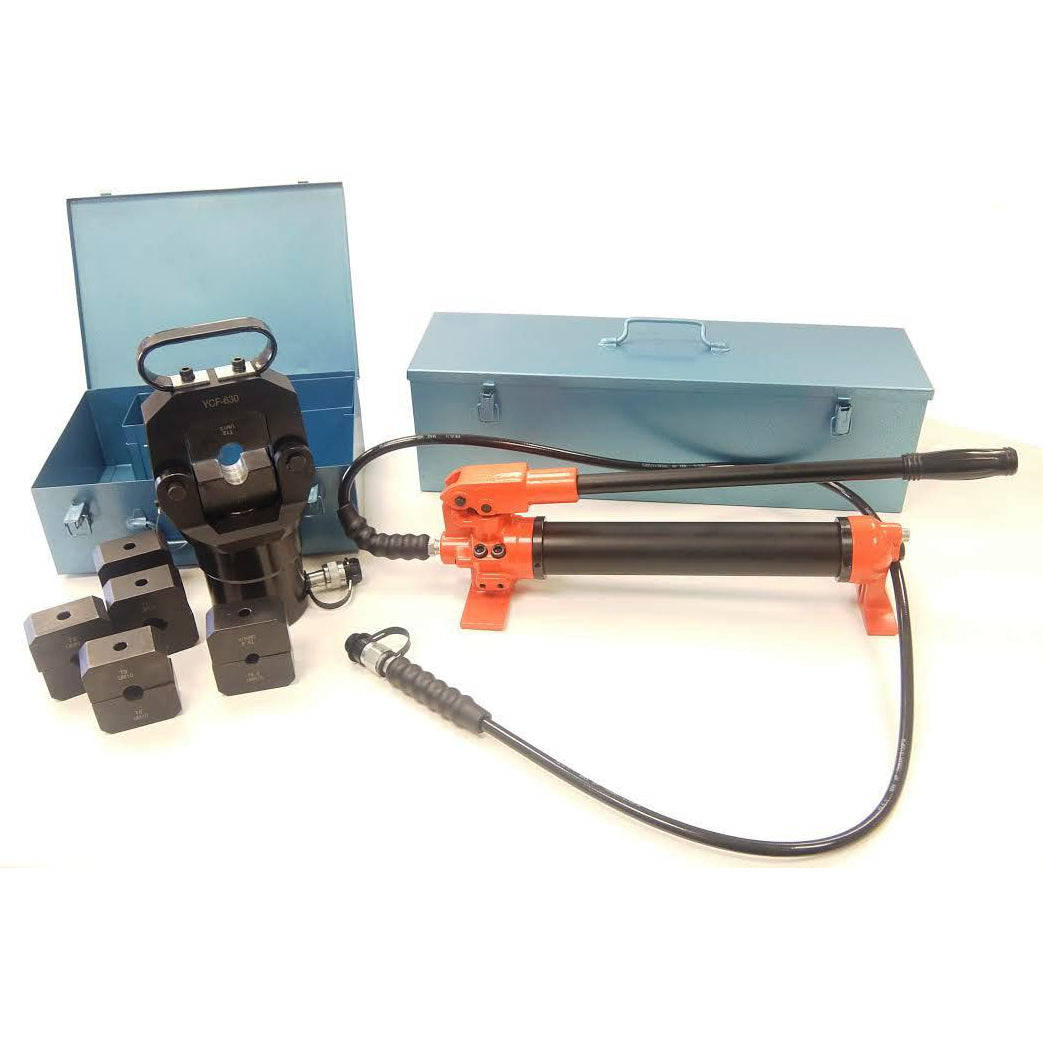

The TECNI YCF-630 Manual Hydraulic Crimper is a high-performance hydraulic crimping tool which delivers 31.75 tonnes of crimping force and a maximum working pressure of 700kgf/cm2 (10,000 psi). Designed for demanding cable and wire rope termination applications, it provides powerful, controlled and reliable crimping performance for professional workshop and on-site use.

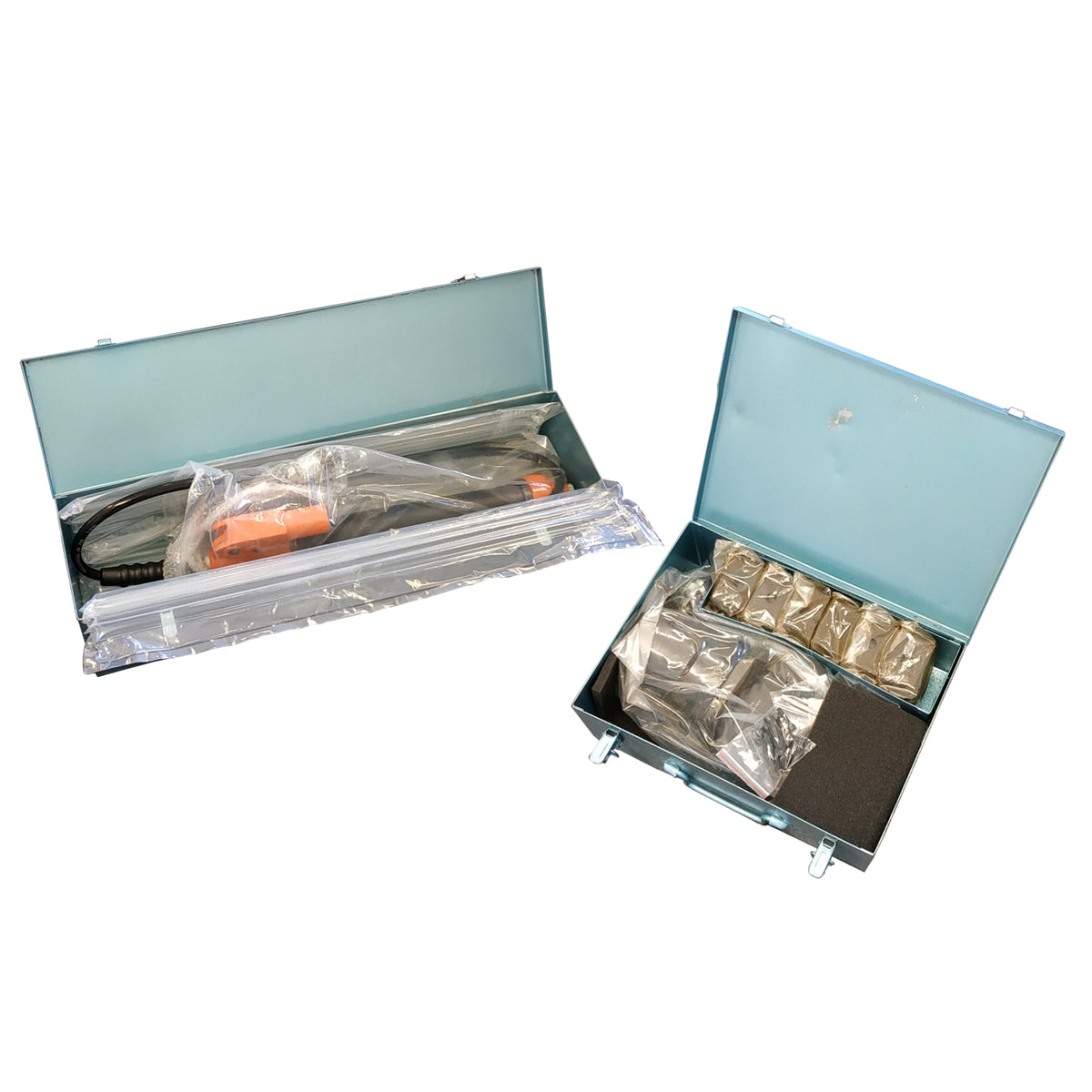

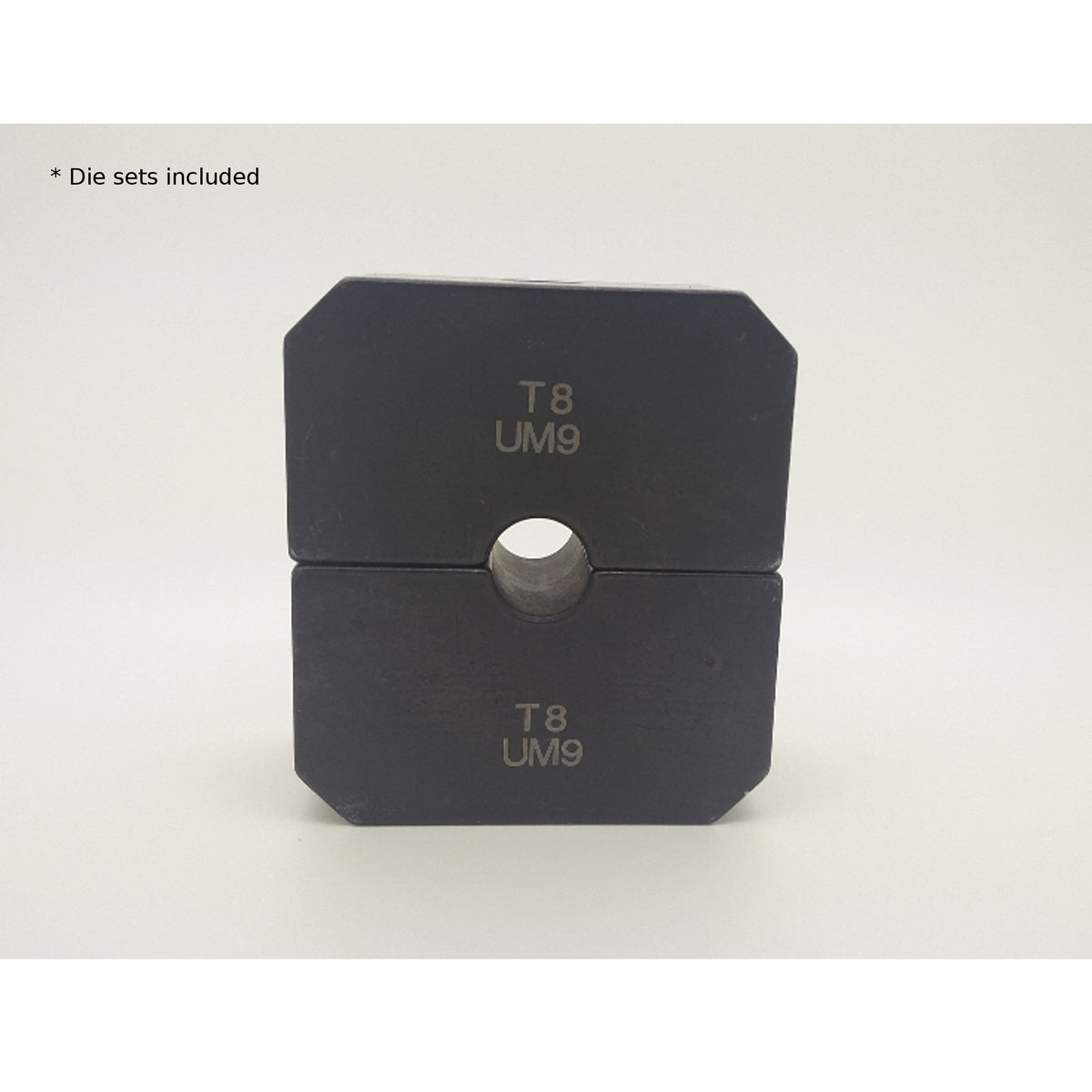

The contents of this kit include; YCF-630 tool, two steel carrying boxes, and 7 x hardened die sets.

Safety critical applications should be verified via testing.

Applications & Advice

Suitable for use with:

  • Code 6 - 11 Copper Ferrules
  • Code 6 - 12 Aluminium Ferrules
  • 3mm to 5mm diameter Cable and Wire Rope requiring Hexagonally Swaged Stainless Steel Fittings.

Not Suitable for Crimping Stainless Steel Ferrules.

Dimensions

  • Hand Pump weight = 10 kgs
  • Hand Pump weight with Steel Carrying Box = 14.5 kgs
  • Press Head without Dies = 15 kgs
  • Press Head with Dies = 17 kgs
  • Press Head with Dies and Steel Carrying Box = 31.5 kgs
  • Press Head, All Dies, Hand pump and both Carrying Boxes = 46 kgs

Downloads

Technical Information

TALURIT Aluminium and Copper Ferrules from T6 (or TCU6) and above finish at twice their size once correctly swaged.

E.g. A Code T6 ferrule will finish at 12mm diameter and a T10 ferrule will finish at 20mm diameter.

Recommended Grade of Oil: ISO 32 Hydraulic Oil
