Green Pin® Bow Shackle BN - G4163

Green Pin® Bow Shackle BN - G4163

Precio habitual £5.23 GBP
Precio habitual Precio de oferta £5.23 GBP
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.

Product Code

SKU:114.163.005

Working Load Limit - ton

En existencias

The Green Pin® Bow Shackle BN is a bow shackle with a safety bolt. The shackle offers a double safety (split pin and safety bolt) which prevents accidental unscrewing of the pin. Long-term durability is assured due to the galvanization of the Green Pin® Bow Shackle BN. Of course, the Green Pin® Bow Shackle BN conforms to a wide range of certifications from class societies such as DNV GL. The Green Pin® Bow Shackle BN is suitable for both one-leg and multi-leg systems and is available in a range with a working load limit from 0.5 up to 85 ton.

Applications & Advice

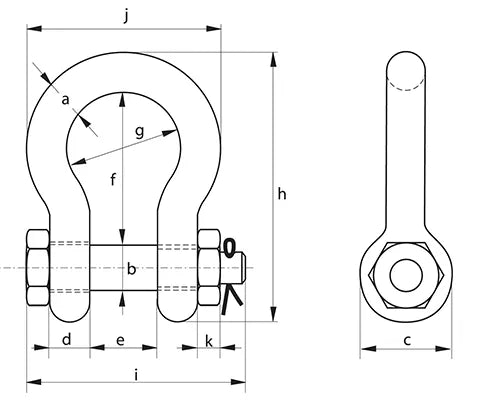

Dimensions

Downloads

Technical Information

  • Productcode: G-4163
  • Material: bow and pin high tensile steel, Grade 6, quenched and tempered
  • Safety factor: MBL equals 6 x WLL
  • Finish: hot dipped galvanized
  • Temp. range: -40°C up to +200°C
  • Certification
  • StandardEN 13889 and meets performance requirements of US Fed. Spec. RR-C-271, Type IVA, Class 3, Grade A. From 2 t and upward these shackles comply with ASME B30.26
