The LITTLE MULE® cable grip is a device for gripping, pulling and tensioning uncoated wire ropes, cables and metal rods in all forms up to a tensile strength of 1770 N/mm2 but is dependant on the diameter and surface condition.

Pulling force 2000 - 5000 daN

Please note it is the users responsibility to ensure that the selected cable grip is suitable for their grade of wire rope






Yale hoists and trolleys are not designed for passenger
elevation applications and must not be used for this
purpose.

The parallel jaws provide a firm, non-slip grip without causing damage to the wire rope. A special spring-loaded guide prevents the grip from dropping off the wire rope and allows instant release without jamming.
LMG I-X and LMG II-X are supplied with a grooved jaw and is suitable for wire ropes with a tensile strength of up to 1960 N/mm2, but this depends on the rope diameter and surface condition.

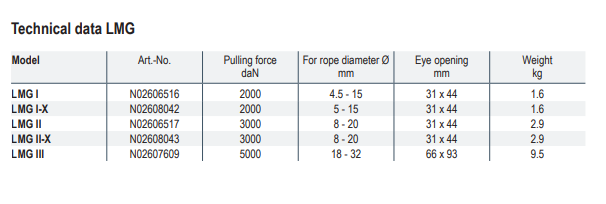

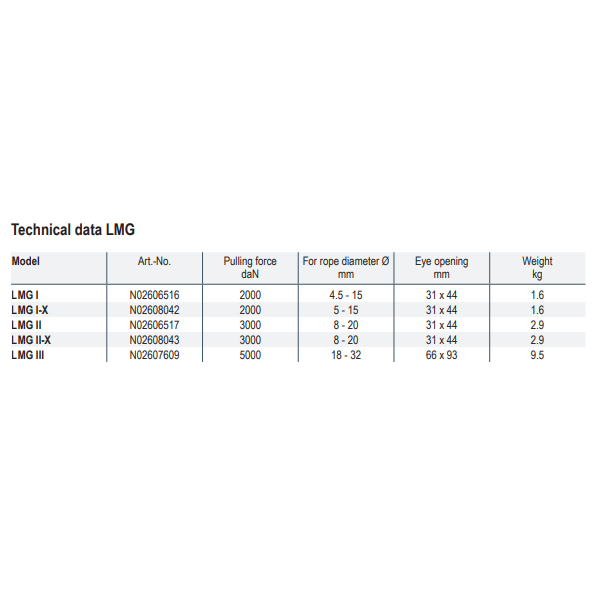

Datasheet
