Green Pin G-7713 Eye and Eye Swivel
Green Pin G-7713 Eye and Eye Swivel
Precio habitual
£5.15 GBP
Precio habitual
Precio de oferta
£5.15 GBP
Precio unitario
/
por
Los gastos de envío se calculan en la pantalla de pago.
Product Code
SKU:117.713.005
En existencias
No se pudo cargar la disponibilidad de retiro
The Green Pin® EE Swivel is a swivel with eye-eye end-fittings. The swivel is made from high tensile steel and can be used under water. Galvanisation of the Green Pin® EE Swivel ensures its long-term durability. The swivel is available in a range with a working load limit from 0.4 up to 20.5 ton.
Applications & Advice
Applications & Advice
Use screw pin shackles for static loads & safety bolt type for running loads

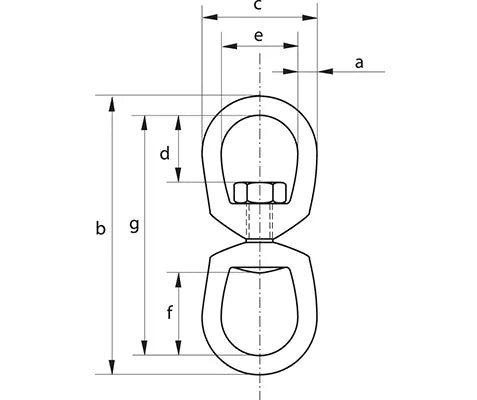

Dimensions
Dimensions
Downloads
Downloads
Technical Information
Technical Information
- Product code - G-7713
- Material - high tensile steel, quenched and tempered
- Safety factor - MBL equals 5 x WLL
- Finish - hot dipped galvanized
- Standard - U.S. Federal Specification RR-C-271, Type VII, Class 2
