TG-1.5-GANCHO-ST-LC
TG-1.5-GANCHO-ST-LC
Product Code
SKU:170.015.002
4504 en existencias
No se pudo cargar la disponibilidad de retiro
Adecuado para utilizar con cable TECNI® sin revestimiento de 1 a 1,5 mm, en construcción 7x7 o 7x19.
WLL con cable de 1 mm - 8 kg
WLL con cable de 1,2 mm - 12 kg
WLL con cable de 1,5 mm - 15 kg
Gancho TECNI®Grip con mecanismo de sujeción de cable microajustable para diámetros de cable de 1 mm a 1,5 mm para aplicaciones de suspensión de cables.
Applications & Advice
Applications & Advice
Applications
- Picture hanging and framed artwork
- Art galleries and exhibition displays
- Museums and visitor attractions
- Retail display installations
- Suspended signage
- Photography displays
- Showrooms and commercial interiors
- Adjustable cable suspension systems
- Decorative wall displays
- Lightweight display panels
Picture Hanging Applications

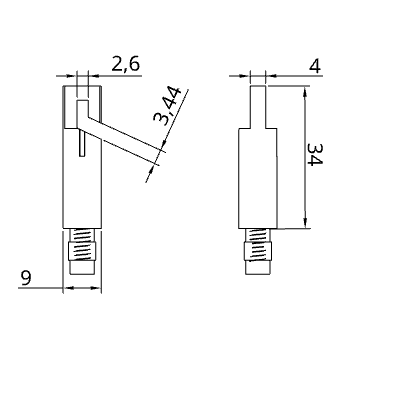

The TECNI® TG1.5 Hook Glider is particularly suitable for creating professional, adjustable picture hanging systems.
The fitting is designed to connect a suspended steel cable to a suitable hanging point on the rear of a picture frame.
In a typical installation, the cable is secured to an appropriate overhead attachment or picture rail suspension system.
The TG1.5 Hook Glider is positioned along the cable, with its integrated hook engaging directly with a suitable D-ring or hanging attachment on the picture frame.
This provides a discreet connection, allowing the picture to hang neatly against the wall without requiring additional cable loops between the hook and frame.
The micro-adjustable gripper mechanism allows the height of the picture to be adjusted along the suspension cable.
This makes the fitting particularly useful in galleries, exhibitions and retail environments where artwork or display arrangements may need to be changed regularly.
Cable Compatibility
Suitable for TECNI® uncoated steel cable in the following diameters:
- 1mm Cable – 8kg WLL
- 1.2mm Cable – 12kg WLL
- 1.5mm Cable – 15kg WLL
Compatible cable constructions:
- 7x7 Stainless Steel Cable
- 7x19 Stainless Steel Cable
- 7x7 Galvanised Steel Cable
- 7x19 Galvanised Steel Cable
Installation Advice
- Select the appropriate cable diameter for the intended application and working load.
- Secure the suspension cable to a suitable overhead attachment or picture hanging rail system.
- Feed the cable through the TG1.5 Hook Glider.
- Position the gripper at the required height along the suspension cable.
- Attach the integrated hook directly to a suitable D-ring or hanging point on the rear of the picture frame.
- Ensure the hook is fully engaged with the hanging attachment.
- Adjust the gripper position until the picture hangs at the required height.
- Check that the cable-gripping mechanism has securely engaged before releasing the
