TG-1.5-GANCHO-PESTAÑO-NH
TG-1.5-GANCHO-PESTAÑO-NH
Product Code
SKU:170.015.003
En existencias
No se pudo cargar la disponibilidad de retiro
Adecuado para utilizar con cable TECNI® sin revestimiento de 1 a 1,5 mm, en construcción 7x7 o 7x19.
WLL con cable de 1 mm - 8 kg
WLL con cable de 1,2 mm - 12 kg
WLL con cable de 1,5 mm - 15 kg
Gancho TECNI®Grip con mecanismo de sujeción de cable microajustable para diámetros de cable de 1 mm a 1,5 mm para aplicaciones de suspensión de cables.
Applications & Advice
Applications & Advice
Applications
- Suspended shop signage
- Retail display installations
- Exhibition and trade show displays
- Framed pictures and artwork
- Gallery and museum displays
- Suspended acrylic and Perspex signs
- Acoustic panel suspension
- Commercial interior displays
- Lightweight decorative panels
- Adjustable cable suspension systems
Shop Signage & Display Applications
The TECNI® TG1.5 Hook Glider with Safety Latch is particularly suitable for creating professional suspended signage and display systems.
In a typical installation, thin steel suspension cables are secured to suitable overhead attachments and connected to the signage using the adjustable hook gliders.
The integrated hook attaches to a suitable eyelet, D-ring or cable loop fitted to the sign.
Once connected, the spring-operated safety latch closes across the hook opening, helping to prevent the attachment from accidentally slipping out.
The micro-adjustable cable-gripping mechanism allows the sign to be positioned at the required height, making it easier to achieve a level and professional installation.
For larger signs, multiple suspension points may be required to distribute the load evenly.
This fitting is particularly useful in retail environments, exhibitions and commercial interiors where signage may need to be repositioned or replaced.
Picture Hanging Applications
The TG1.5 Hook Glider with Safety Latch can also be used for suspending framed pictures and artwork.
The integrated hook attaches directly to a suitable D-ring or hanging point on the rear of the frame.
The safety latch helps retain the connection, while the adjustable cable gripper allows the height of the picture to be altered without replacing the suspension cable.
This makes the fitting suitable for galleries, museums and exhibition spaces where displays are frequently changed.
Cable Compatibility
Suitable for TECNI® uncoated steel cable in the following diameters:
- 1mm Cable – 8kg WLL
- 1.2mm Cable – 12kg WLL
- 1.5mm Cable – 15kg WLL
Compatible cable constructions:
- 7x7 Stainless Steel Cable
- 7x19 Stainless Steel Cable
- 7x7 Galvanised Steel Cable
- 7x19 Galvanised Steel Cable
Installation Advice
- Select the appropriate cable diameter for the intended application and working load.
- Install suitable upper suspension attachments into a structurally sound supporting surface.
- Feed the suspension cable through the TG1.5 Hook Glider.
- Position the fitting at the required height along the cable.
- Open the spring-operated safety latch.
- Attach the hook to a suitable eyelet, D-ring or cable loop on the item being suspended.
- Allow the safety latch to close and ensure it has fully engaged.
- Adjust the cable gripper until the suspended item reaches the required height.
- Where multiple suspension points are used, ensure the item is level and the load is appropriately distributed.
- Check that the cable-gripping mechanism and hook connection are secure before applying the intended load.
Important Installation Information
- Suitable for 1mm to 1.5mm uncoated steel cable.
- Compatible with 7x7 and 7x19 cable constructions.
- Maximum stated WLL of 15kg when used with the specified 1.5mm TECNI® cable.
- The integrated safety latch must be fully closed during use.
- Ensure the hook is correctly engaged with a suitable attachment point.
- The safety latch helps prevent accidental disengagement but does not increase the stated WLL.
- Cable is sold separately.
- Ensure all cables are correctly inserted and securely retained.
- The weight of the suspended item and any additional components must be considered.
- Do not exceed the Working Load Limit of the lowest-rated component.
- Avoid shock loading, excessive movement and side loading.
- Not rated for lifting.
Technical Info
Technical Info
Brand: TECNI®
Product Code: 170.015.003
Product Type: TG1.5 Hook Glider with Safety Latch
Connection Type: Hook with Spring-Operated Safety Latch
Cable Diameter: 1mm–1.5mm
Cable Construction: 7x7 or 7x19
Cable Type: Uncoated Steel Wire Rope
Installation Position: Lower / Intermediate
Adjustment: Integrated Micro-Adjustable Cable Gripper
Maximum WLL: 15kg with specified 1.5mm TECNI® cable (subject to confirmation)
Working Load Limits
Cable DiameterWorking Load Limit1mm8kg1.2mm12kg1.5mm15kg
Important Technical Information
The TG1.5 Hook Glider features an integrated spring-operated safety latch designed to help retain a suitable attachment point within the hook.
The adjustable cable-gripping mechanism allows the fitting to be positioned along a suspension cable, making it suitable for applications requiring height adjustment.
The safety latch must be fully closed during use and does not increase the fitting's rated Working Load Limit.
Working Load Limits apply to static loads when used with the specified TECNI® cable.
The complete suspension system must be assessed to ensure all components are suitable for the intended application and loading.
Not rated for lifting.

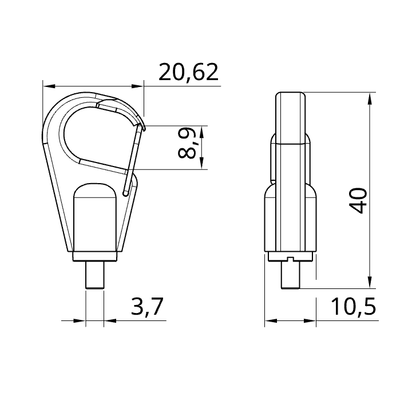

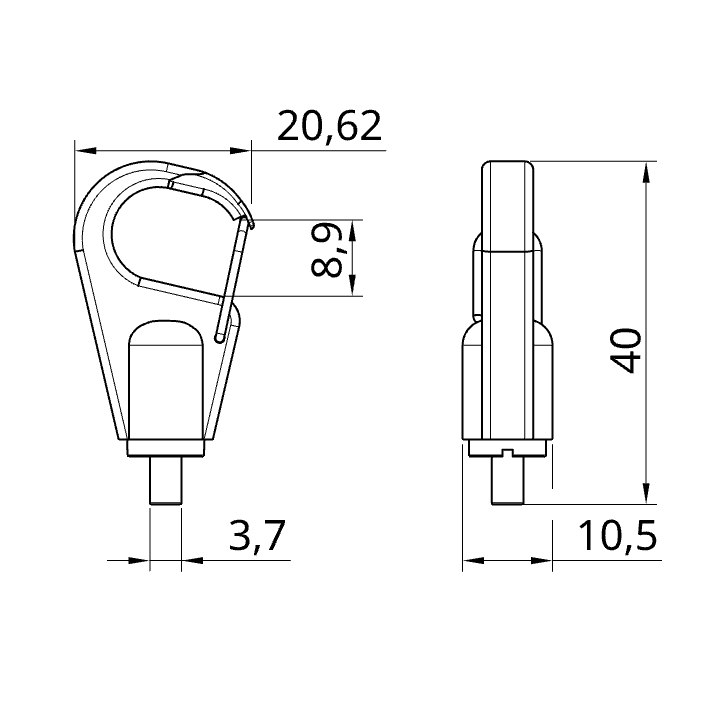

Dimensions
Dimensions
