Green Pin G-7713 Eye and Eye Swivel

Green Pin G-7713 Eye and Eye Swivel

£5.15 GBP
£5.15 GBP
Sale Sold out
Shipping calculated at checkout.

Product Code

117.713.005

Working Load Limit - ton

In stock

The Green Pin® EE Swivel is a swivel with eye-eye end-fittings. The swivel is made from high tensile steel and can be used under water. Galvanisation of the Green Pin® EE Swivel ensures its long-term durability. The swivel is available in a range with a working load limit from 0.4 up to 20.5 ton.

Applications & Advice

Use screw pin shackles for static loads & safety bolt type for running loads

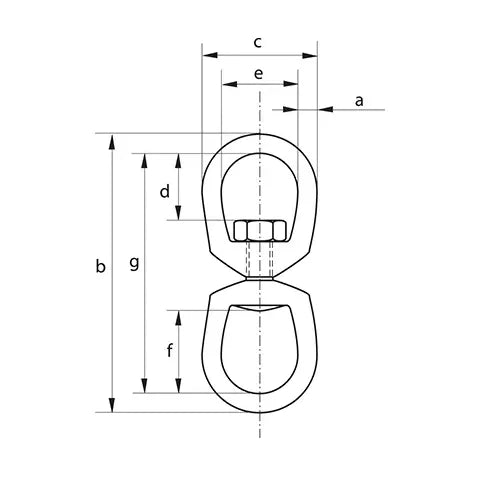

Dimensions

Dimensions & Specifications

Downloads

Technical Information

  • Product code - G-7713
  • Material - high tensile steel, quenched and tempered
  • Safety factor - MBL equals 5 x WLL
  • Finish - hot dipped galvanized
  • Standard - U.S. Federal Specification RR-C-271, Type VII, Class 2
