WH PT Push Trolley
WH PT Push Trolley
Product Code
SKU:857.044.050
In stock
Couldn't load pickup availability

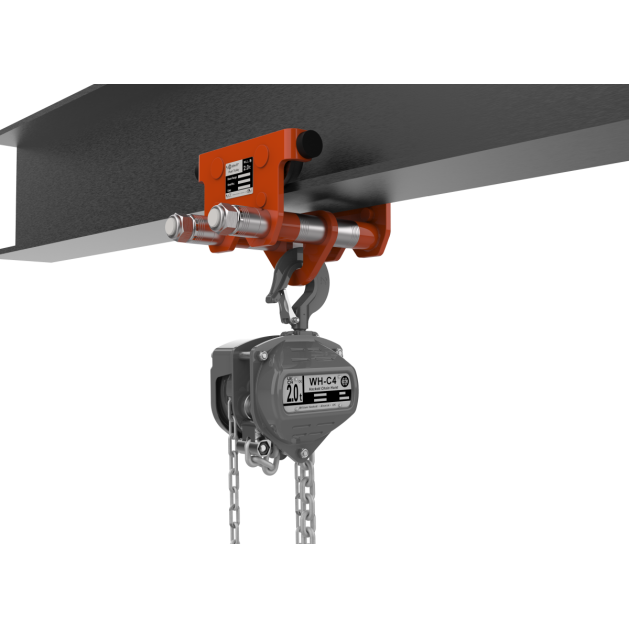

The William Hackett Push Trolley is designed, developed and tested in the UK. It has 2 bars which creates greater stability and has various sized spacers which are used to determine the distance between the 2 plates and the beam width. The trolley can be pushed along the beam and has rubber end stops to prevent damage. The hanging plate has a large eye which can accept various sized lifting hooks. We can offer training on safe use and inspection.
WLL Range: | 500kg - 10t |
Proof Load Test: | 1.5 X WLL |
Safety Factor: | 4:1 |
Temp Range: | -20°C to +120°C |
Applications & Advice
Applications & Advice
Dimensions
Dimensions
Downloads
Downloads
Technical Information
Technical Information
WLL Range - 500 kg - 10t
Proof load test - 1.5 x WLL
Finish - Orange powder coated paint
Bars - Twin bar, zinc plated for added corrosion protection
Extended bars - Can be supplied on request for wider beam widths
End stoppers - To prevent damage
Anti tilt - To prevent damage or loss of load
Wheels - Universal wheels to suit tapered or flat flange
Video
