LMG Cable Grips

LMG Cable Grips

£122.16 GBP
£122.16 GBP
Sale Sold out
Shipping calculated at checkout.

Product Code

235.500.010

Model

The LITTLE MULE® cable grip is a device for gripping, pulling and tensioning uncoated wire ropes, cables and metal rods in all forms up to a tensile strength of 1770 N/mm2 but is dependant on the diameter and surface condition.

Pulling force 2000 - 5000 daN

Please note it is the users responsibility to ensure that the selected cable grip is suitable for their grade of wire rope






Applications & Advice

Yale hoists and trolleys are not designed for passenger
elevation applications and must not be used for this
purpose.

Technical Information

The parallel jaws provide a firm, non-slip grip without causing damage to the wire rope. A special spring-loaded guide prevents the grip from dropping off the wire rope and allows instant release without jamming.
LMG I-X and LMG II-X are supplied with a grooved jaw and is suitable for wire ropes with a tensile strength of up to 1960 N/mm2, but this depends on the rope diameter and surface condition.

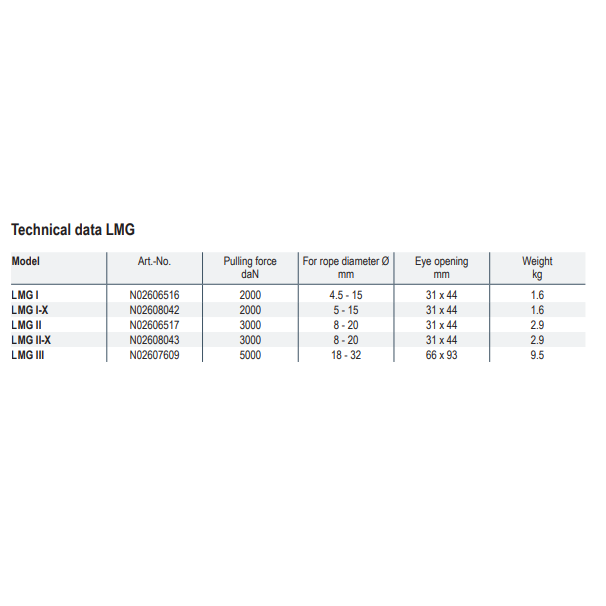

Dimensions

Downloads

Datasheet
