PVC End Caps

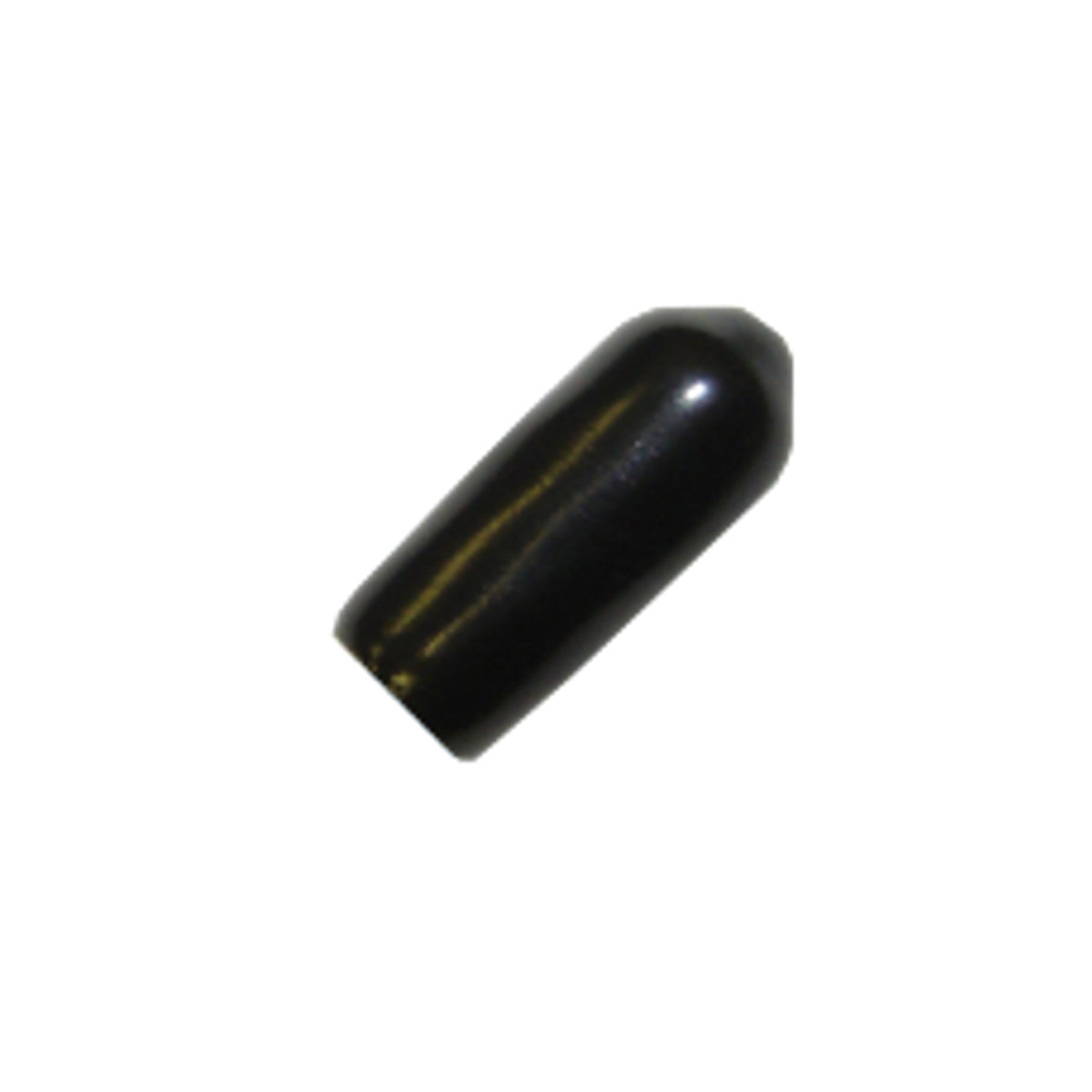

Black PVC End Caps Suitable for cables from 1.5mm to 10mm in diameter

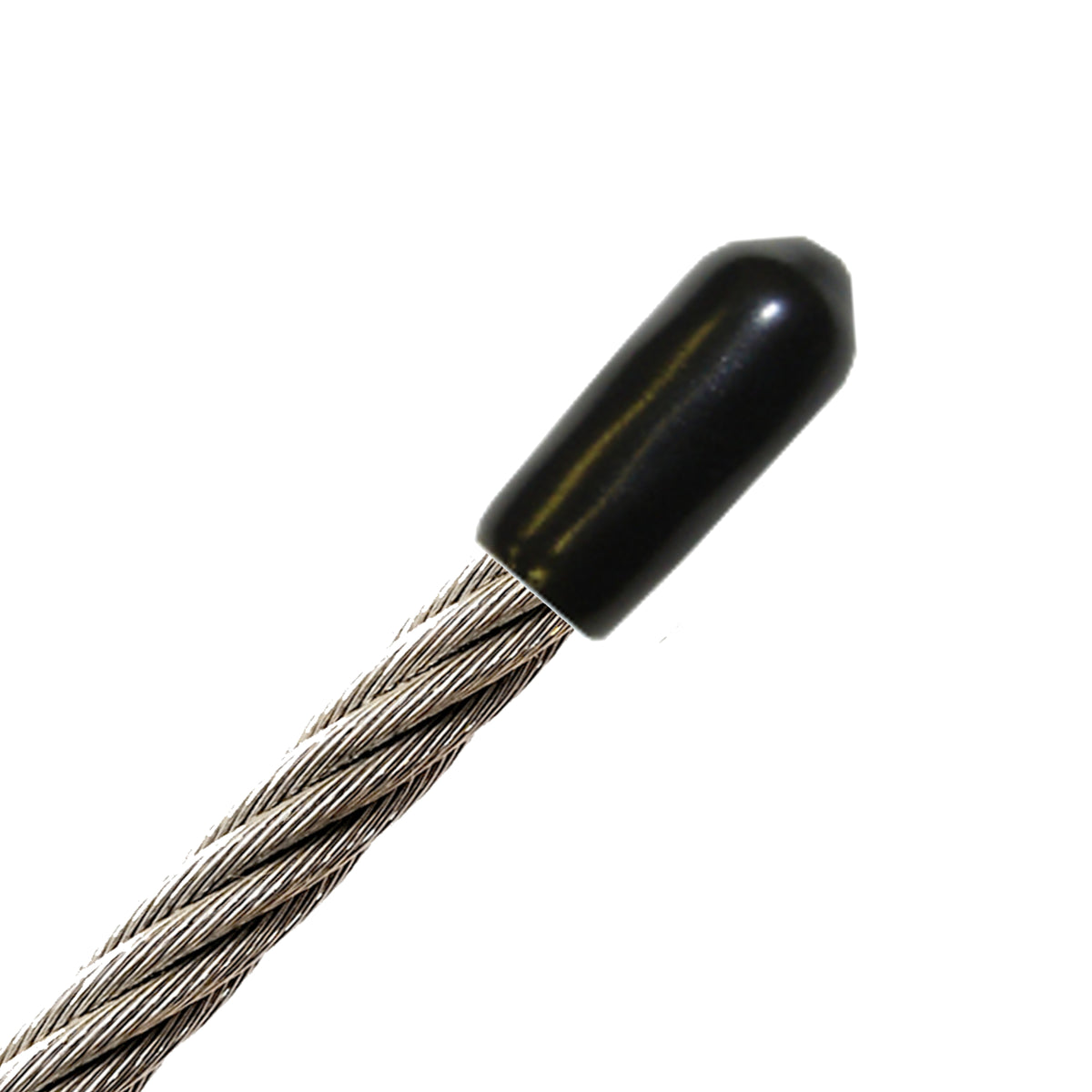

Black PVC End Cap to seal off the end of cut cables
UV Stabilised so suitable for Marine & outdoor use
Black PVC End Cap provide inexpensive but tough protection
Suitable for cables from 1.5mm to 10mm in diameter

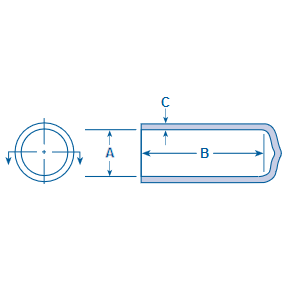

Part Code	Internal Diameter - A (mm)	Internal Length - B (mm)	Wall Thickness - C (mm)	Suitable for Cable Diameters (mm)
200.127.015	1.8	12.7	0.7	1.5
200.127.018	2.0	12.7	0.7	1.8/2
200.127.020	2.4	12.7	0.7	2/2.5
200.127.025	2.8	12.7	0.8	2.5/3
200.127.030	3.0	12.7	0.8	3
200.127.040	4.0	12.7	1.0	4
200.127.050	5.3	12.7	1.0	5
200.127.060	6.4	12.7	1.0	6
200.190.070	7.0	19.0	1.0	7
200.127.080	8.0	12.7	1.0	8
200.127.100	10.0	12.7	1.0	10

Applications & Advice

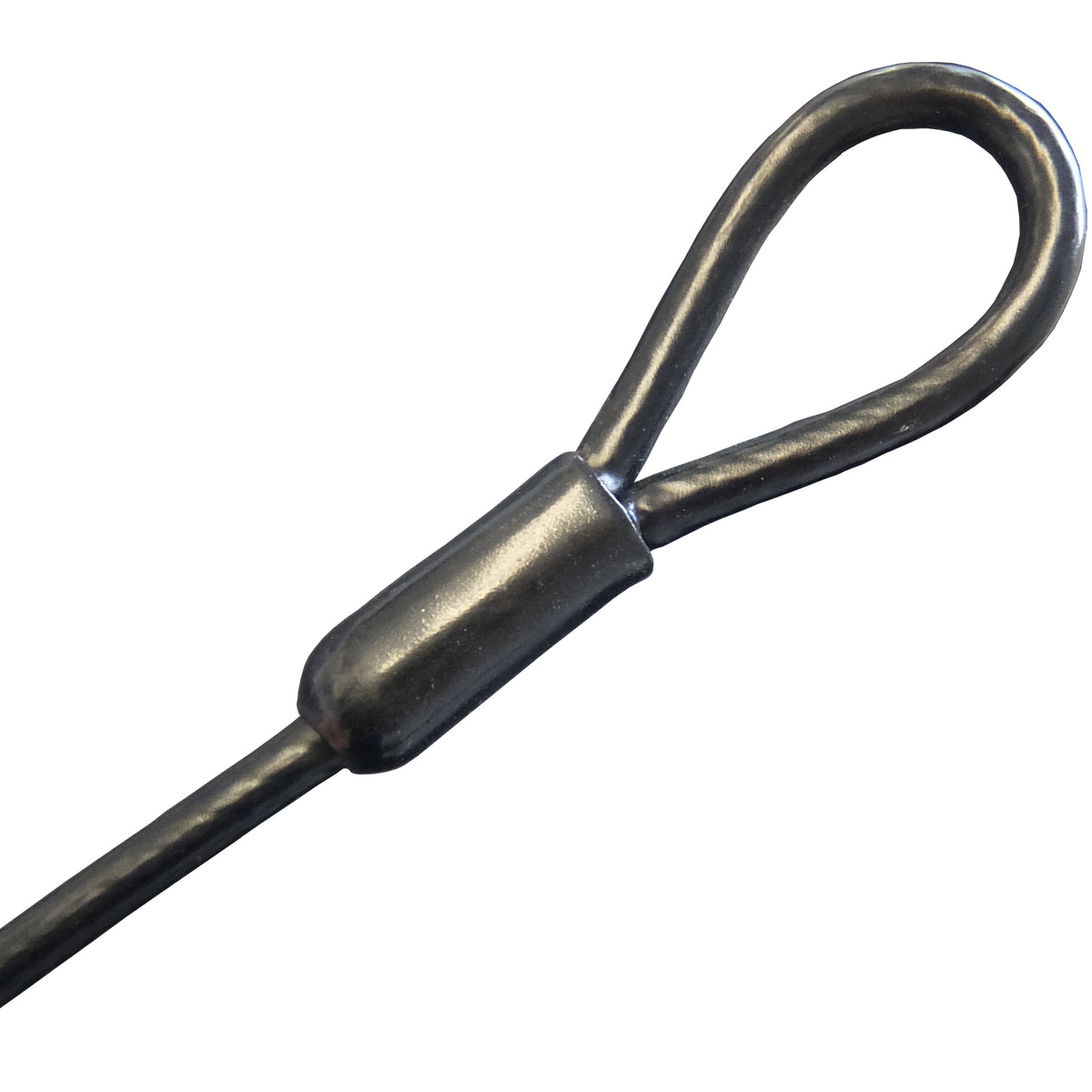

Suitable for all cable constructions. Friction fits tightly onto cable but can be made permanent with adhesive.

Dimensions

See table

Technical Information

Round Vinyl PVC Plastic Caps offer an attractive, quality finished appearance to consumer and industrial products. These plastic caps also provide inexpensive but tough protection to your valuable product line. Our vinyl caps are often referred to as a rubber cap because of their flexibility and pliable feel. Use Vinyl Plastic Caps as end caps, pipe caps, tube caps or for appearance finishing on your product.
