夹子-SS-3-4-滴-锻造

Name: 夹子-SS-3-4-滴-锻造
Brand: TECNI
SKU: 310.450.004
Price: 2.73 GBP
Availability: InStock

£2.73 GBP

~~£0.00 GBP~~ £2.73 GBP

促销售罄

结账时计算的运费。

Product Code

SKU:310.450.004

数量

211 件存货

TECNI 有限公司提供的独特产品。
海洋级 316 不锈钢
抛光不锈钢表面。

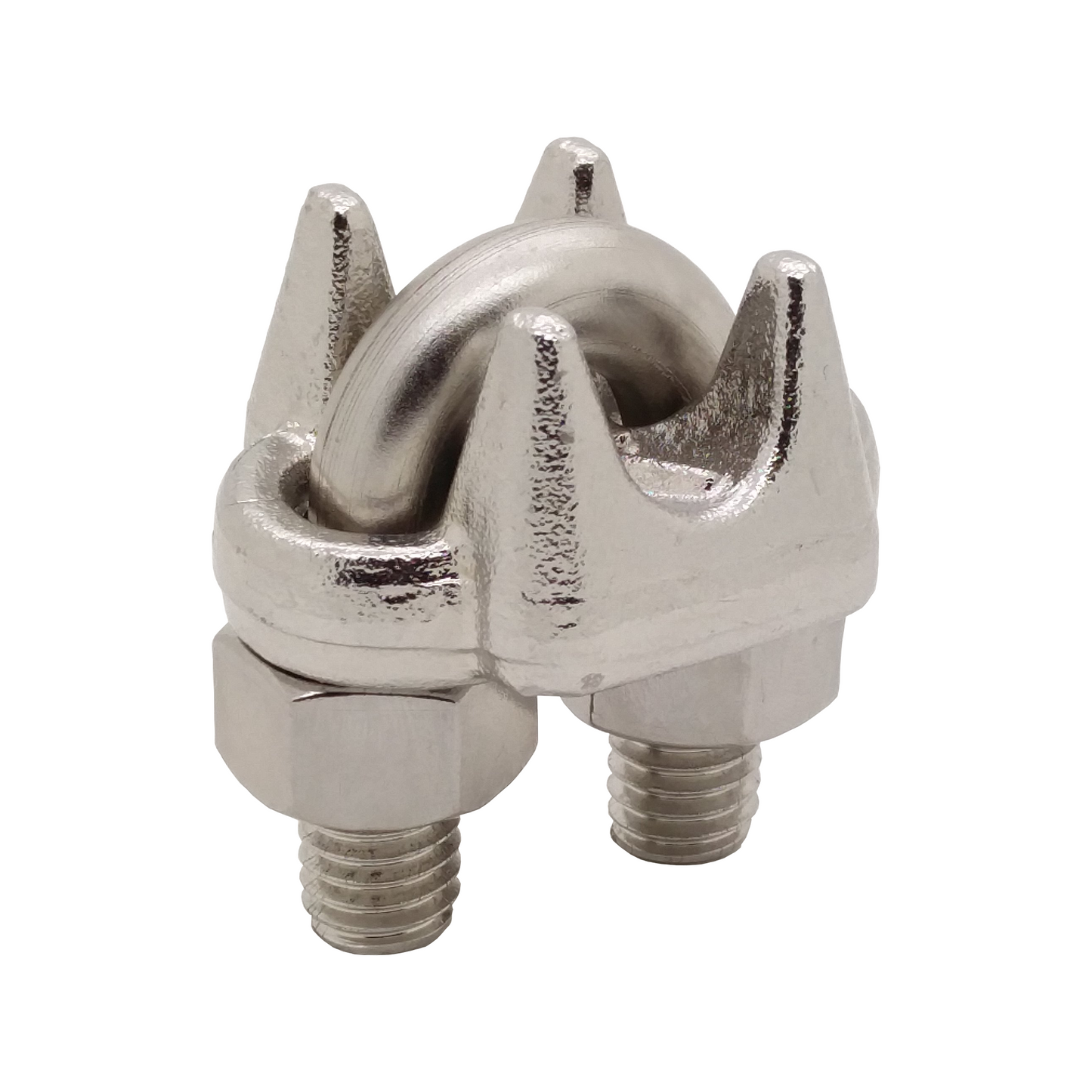

美国型锻造重型 U 型螺栓钢丝绳夹一般符合 BS EN 13411-5（美国规格 FFC450 1 型 1 级），但 A4-AISI 316 不锈钢材料除外。

锻造 U 型螺栓夹比铸造夹更坚固、更稳定，这意味着每次端接所需的数量更少。非常适合需要确保强度、可靠性和性能的关键应用。

与其他夹紧设计相比，夹子的宽鞍形部分为钢丝绳的承重部分提供了更好的支撑。

夹子的 U 型螺栓部分的螺纹尺寸比铸造夹子大，并且设计用于采用建议的扭矩设置，从而提供更大的强度和紧固能力。

Applications & Advice

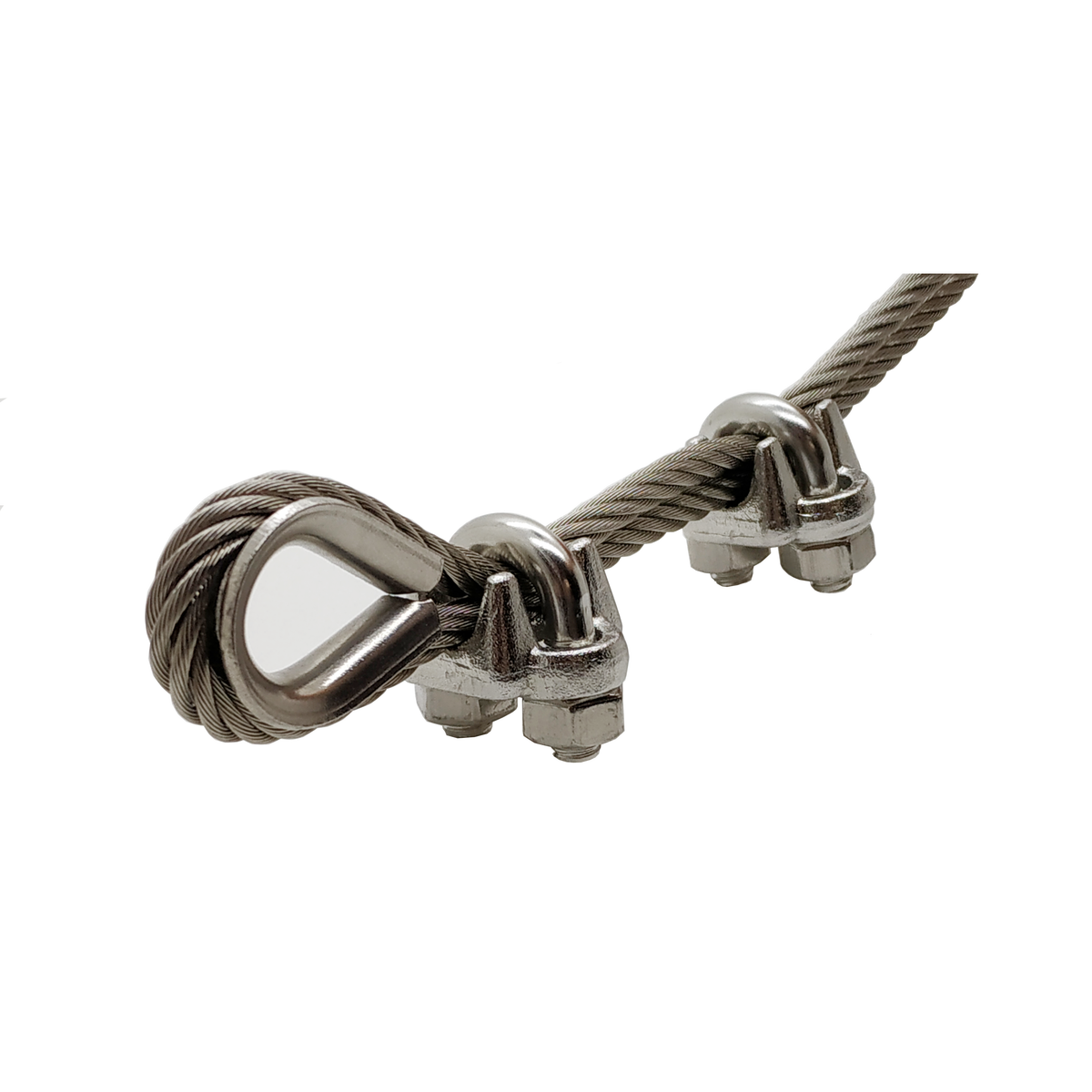

** Recommended number of grips per end = 3 grips **
Applications include suspending static loads and single load lifting operations which have been assessed by a competent person taking into account appropriate safety factors. This includes zip wires, mast stays, catenary systems, ie applications where assurance of strength, reliability and performance is required.
Note they are NOT suitable for use with spiral ropes. Nor does this standard cover U-Bolt wire rope grips as the primary securing devices on mine hoists, crane hoists or eye terminations for slings for general lifting service.
