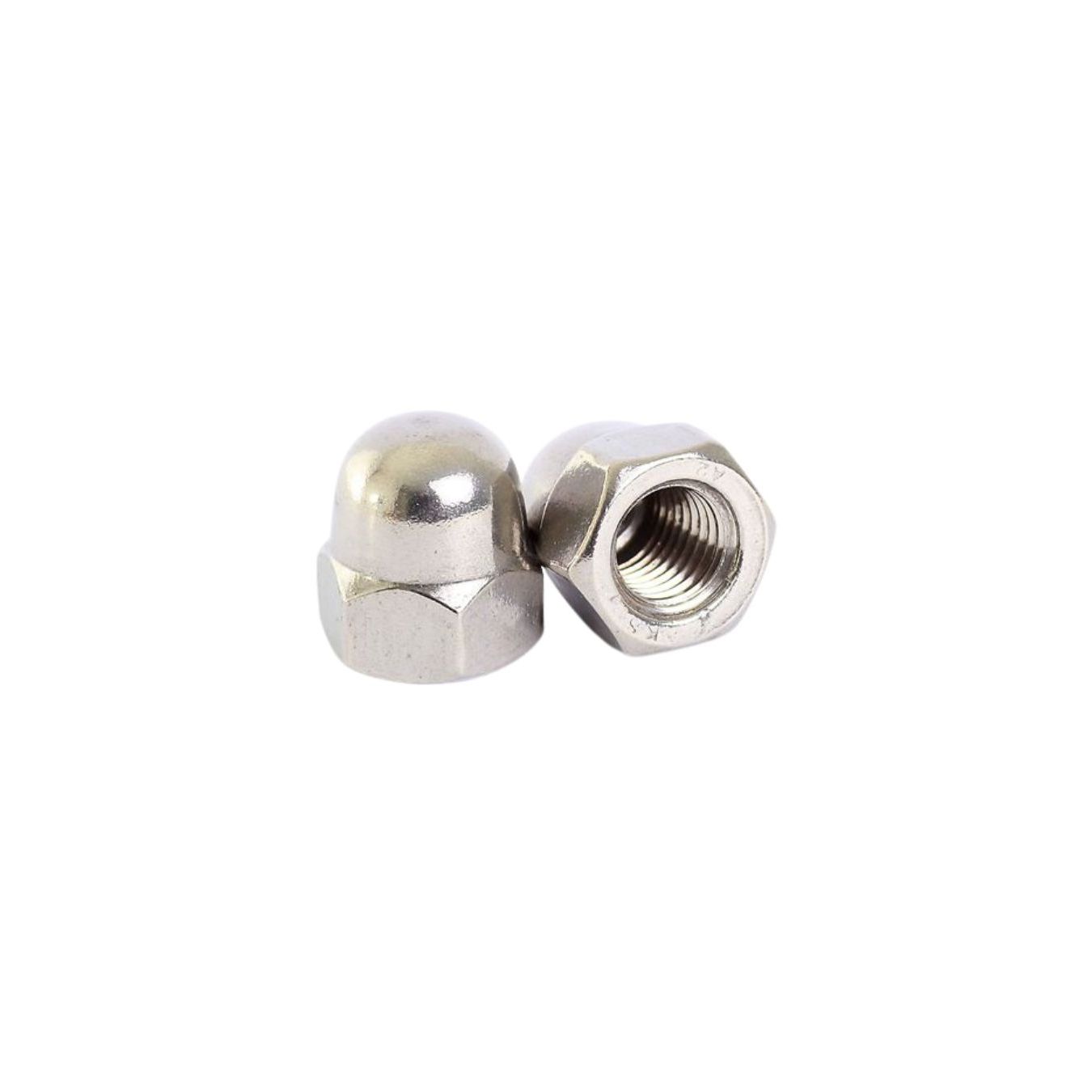

• two metal dome nuts on a white background

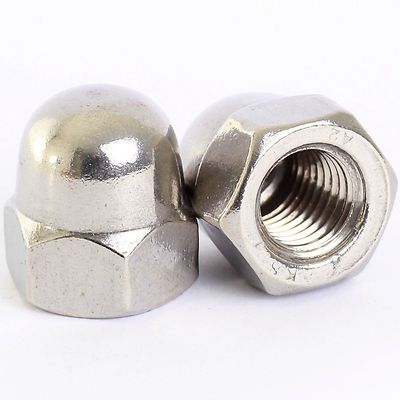

  • Metal nut and cap screw on a white background

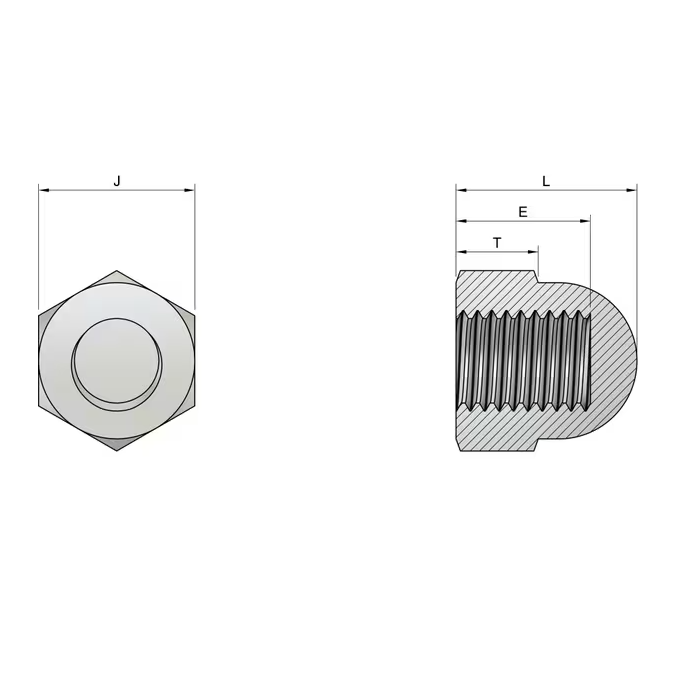

  • Technical drawing of a hexagonal dome nut with dimensions labeled on a white background
1 3

M6 A4-AISI 316 Stainless Steel Dome Nut DIN 1587 - 208.158.746

M6 A4-AISI 316 Stainless Steel Dome Nut DIN 1587 - 208.158.746

£1.42 GBP
£1.42 GBP
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.

Product Code

208.158.746

162 en existencias
  • AISI 316 grade stainless steel dome nut to DIN 1587
  • Highly corrosion resistant
  • Polished stainless finish
  • Compatible M6 threaded fittings in stock
  • Order any quantity with no minimum order charge



Applications & Advice

This adaptable & versatile M6 right hand A4-AISI 316 stainless steel DIN 1587 hexagon dome nut is designed to provide a decorative rounded end termination on M6 studding. Suitable for marine & outdoor use.

Dimensions

J : 10mm

T : 5mm

E : 8.29mm

L : 12mm
