• A stainless steel hexagon Nyloc lock nut with a blue nylon collar insert.

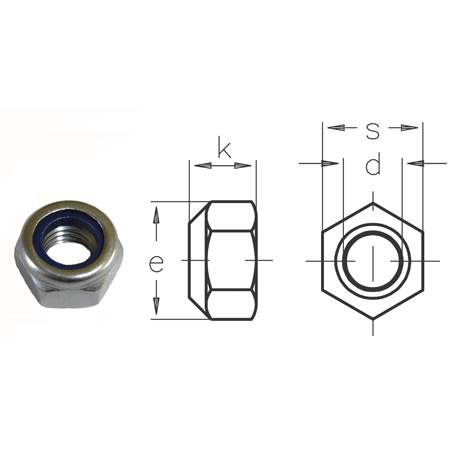

  • Diagram of a stainless steel hexagon Nyloc lock nut with a blue nylon collar insert with dimensions on a white background.
1 2

Tuerca-SS-M12-A4-NYLOC-DIN985

Tuerca-SS-M12-A4-NYLOC-DIN985

£1.18 GBP
£1.18 GBP £1.18 GBP
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.

Product Code

303.514.012

41 en existencias
Tuerca de bloqueo Nyloc de acero inoxidable de grado AISI 316 según DIN 985
  • Altamente resistente a la corrosión.
  • El inserto de collar de nailon evita el desbloqueo.
  • Muchos accesorios roscados M12 compatibles en stock
  • Pida cualquier cantidad sin cargo mínimo de pedido

Esta tuerca de seguridad Nyloc hexagonal de acero inoxidable A4-AISI 316 M12 RH adaptable y versátil según DIN 985 es adecuada para uso en exteriores.

Applications & Advice

Typical Applications:

  • Stainless steel bolts and threaded fittings
  • Marine and outdoor fastening applications
  • Mechanical equipment and assemblies
  • Architectural metalwork and installations
  • Vibration-resistant fastening systems

Use with compatible M12 right-hand threaded bolts, studs and fittings. The nylon locking insert grips the mating thread to help prevent the nut from loosening under vibration or movement. Ensure the bolt thread extends sufficiently through the nylon insert to achieve effective locking. Tighten using a suitable spanner or socket, taking care to avoid overtightening. Check the suitability of the nylon insert for the intended operating temperature and application.

Dimensions

M12 Nyloc Dimensions

e: 21.1mm

k: 12mm

s: 19mm

d: M12
