• A stainless steel hexagon nut with a visible threaded interior.

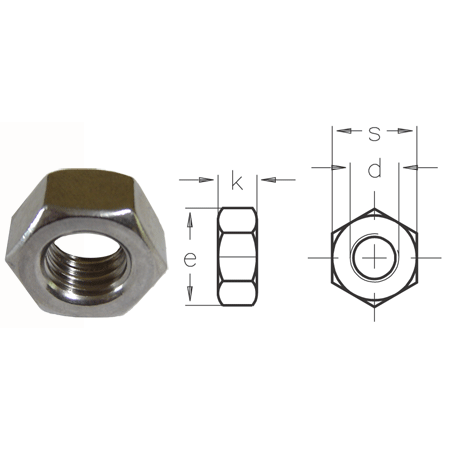

  • Technical drawing of a hexagon nut with dimensions on a white background.
1 2

Tuerca-SS-M6-A4-LH-DIN934

Tuerca-SS-M6-A4-LH-DIN934

£0.74 GBP
£0.74 GBP £0.74 GBP
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.

Product Code

303.511.406

1203 en existencias
  • Tuerca de acero inoxidable grado AISI 316 según DIN 934
  • Altamente resistente a la corrosión.
  • Acabado inoxidable pulido
  • Muchos accesorios roscados M6 para mano izquierda compatibles en stock
  • Pida cualquier cantidad sin cargo mínimo de pedido

Esta tuerca completa hexagonal DIN 934 de acero inoxidable A4-AISI 316 M6 IZQUIERDA adaptable y versátil es perfecta para uso en exteriores.

Applications & Advice

Typical Applications:

  • Left-hand threaded bolts and fittings
  • Marine and outdoor fastening applications
  • Architectural metalwork and installations
  • Mechanical equipment and assemblies
  • Tensioning systems requiring left-hand threads

Use only with compatible M6 left-hand threaded bolts, studs and fittings. Left-hand threads tighten anticlockwise and loosen clockwise, unlike standard right-hand threads. Ensure the thread size, pitch and direction match the mating component before installation. Tighten using a suitable spanner or socket, taking care to avoid overtightening. For applications exposed to vibration, consider an appropriate locking method.

Dimensions

d:M6 LH
e:11mm
k:5mm
s:10mm
