• Stainless Steel Dual Thread Dowel Screw on a white background.

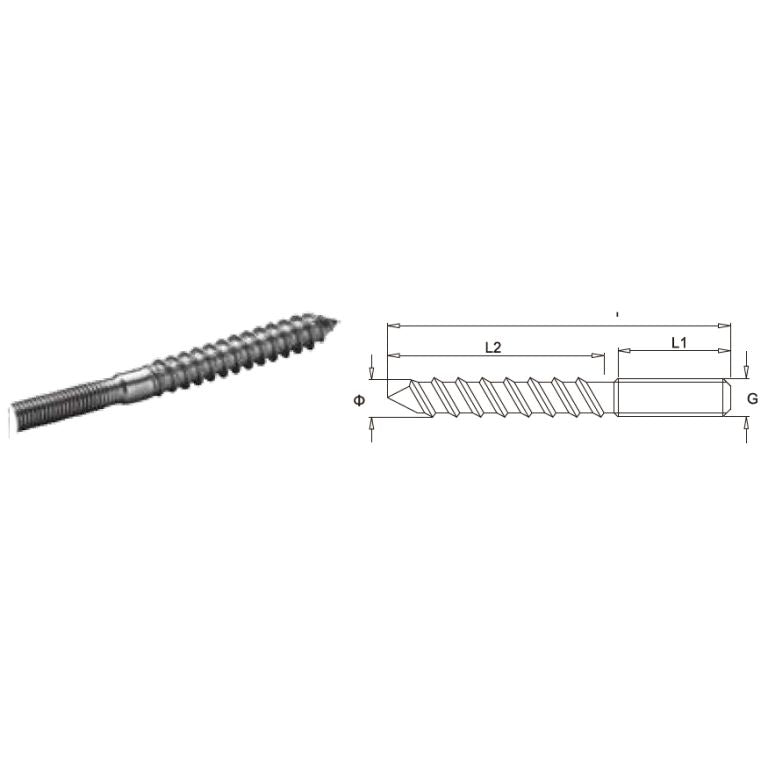

  • Screw with a technical drawing on a white background
1 2

TORNILLO-SS-M5-A4-RH-30-43-DOBLE

TORNILLO-SS-M5-A4-RH-30-43-DOBLE

£5.21 GBP
£5.21 GBP £5.21 GBP
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.

Product Code

208.515.405

57 en existencias
  • Pernos de acero inoxidable de grado AISI 316
  • Altamente resistente a la corrosión.
  • Acabado inoxidable pulido
  • Muchos accesorios M5 en stock
  • Hilo de corte de precisión

Este perno de acero inoxidable de doble rosca M5 RH tiene una rosca métrica de 30 mm y una rosca para madera de 43 mm. Perfecto para balaustradas, arquitectura, enrejados de jardín y muchas otras aplicaciones.

Applications & Advice

Typical Applications:

  • Stainless steel cable balustrading
  • Garden trellis and green wall systems
  • Architectural cable installations
  • Timber-mounted cable fittings
  • General-purpose fixing applications

Always drill a suitable pilot hole to prevent timber splitting and ensure easier installation.

The stud can be installed using a socket drive with a dome nut or two locked nuts fitted to the machine thread.

Alternatively, the machine-threaded section can be secured directly into a drill chuck for installation.

Use a low drill speed and torque setting to prevent damage to the threads.

Dimensions

G: M5

L1: 31mm

L2: 44mm

Overall size: 82mm
