Stainless Swage Jaw Terminals Mini Type

£4.30 GBP

~~£0.00 GBP~~ £4.30 GBP

Oferta Agotado

Los gastos de envío se calculan en la pantalla de pago.

Product Code

SKU:311.020.030

Cable Diameter 3mm 4mm 5mm 6mm

Cantidad

Agotado

Stainless Steel Mini Swage Jaw Terminals A4 AISI 316 Marine Grade.

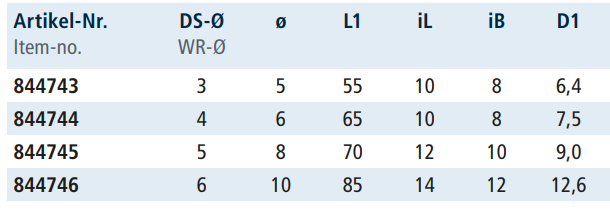

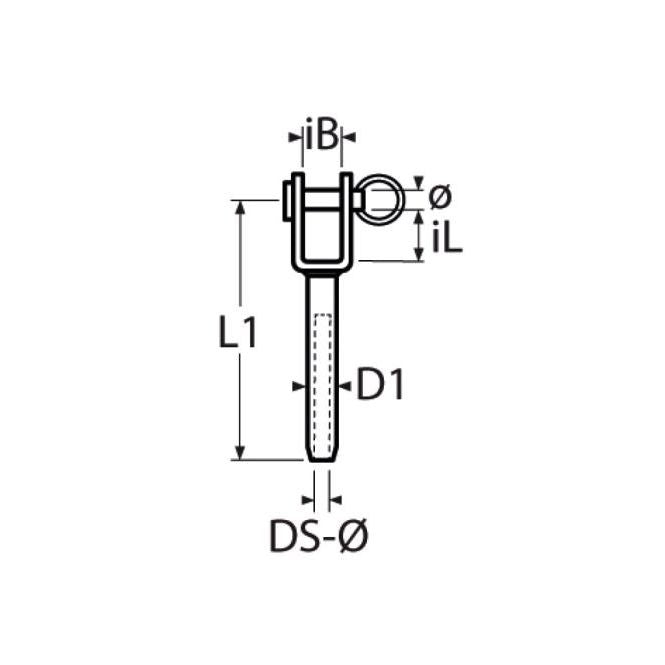

Partcode	Cable ⌀	Pin ⌀	L1	iL	iB	D1
311.020.030	3.0	5.0	55	10.0	8	6.4
311.020.040	4.0	6.0	65	10.0	8	7.5
311.020.050	5.0	8.0	70	12.0	10	9.0
311.020.060	6.0	10.0	85	14.0	12	12.6

The expected strength for this end termination when pressed correctly is 90% of MBL of the cable. Testing must be performed to verify the strength of the assembly.

Applications & Advice

Typical Applications:

Catenary

Balustrade

Suspension cables

Rigging Cables

To fit, simply insert cable into the fitting and swage using a hydraulic press.

TECNI can fit these for you. Please let us know your requirements.

Technical Information

The expected strength for this end termination when pressed correctly is 90% of MBL of the cable. Testing must be performed to verify the strength of the assembly. Swage using hexagon swaging dies or round swaging dies. Please contact us if you need assistance with fitting these products.
