TECNI® Ceiling Attachment CA2 - 2 Part Static Ceiling Attachment for use with 2mm cable - 175.020.001

TECNI® Ceiling Attachment CA2 - 2 Part Static Ceiling Attachment for use with 2mm cable - 175.020.001

Precio habitual £2.75 GBP
Precio habitual £0.00 GBP Precio de oferta £2.75 GBP
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.

Product Code

SKU:175.020.001

3320 en existencias

Adecuado para utilizar con cable TECNI® sin revestimiento de 1 a 1,5 mm, en construcción 7x7 o 7x19.

WLL con cable de 1 mm - 8 kg

WLL con cable de 1,2 mm - 12 kg

WLL con cable de 1,5 mm - 15 kg

Applications & Advice

Attachment point for Glider suspension system.

Suitable for use with carry rail systems, lighting, acoustic panels, Art suspension for Galleries, display signs for retail or any multi point suspension at an angle. Complete with screw cap and base.

Requires a cable with stop fitting attached to sit inside the attachment. Tecni can supply manufactured made to measure lengths of wire rope with stop fittings, alternatively you can press fittings on site by using TECNI®Crimp Tool 150.100.125. Please contact us for more information.

Base is shown with M6 dual thread screw 160.040.060 but can be secured using wood screws up to No. 10 size (4.76mm diameter).

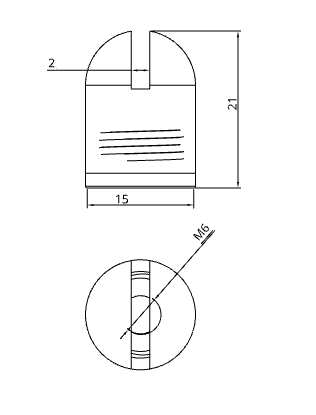

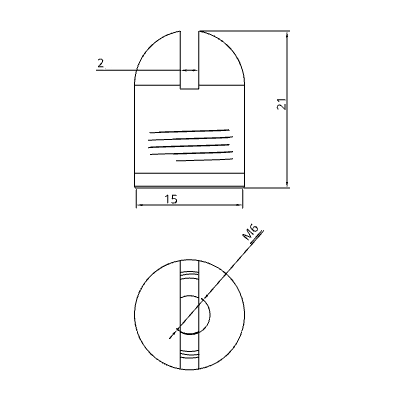

Dimensions
