  • Instalación extremadamente rápida
  • Reutilizable para proyectos futuros.
  • Diseño muy compacto y terminación resistente.
  • No se necesitan herramientas especializadas
  • ¡Simplemente ajuste y coloque con la mano!

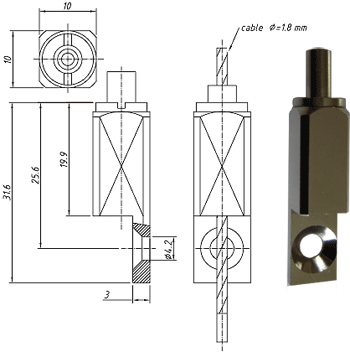

Este versátil y adaptable soporte tipo 2 niquelado TECNI ® Grip admite cables de 1 mm a 2 mm. Para instalarlo, simplemente inserte el cable en el émbolo y el cable quedará sujeto por cojinetes de bolas dentro del accesorio para un ajuste infinito. Diseñado para colgar cualquier cosa con una superficie plana que se pueda atornillar o atornillar, por ejemplo, cuadros en galerías, carteles, tableros de exhibición, etc.

Applications & Advice

Applications

  • Picture frame and artwork suspension
  • Museum and gallery display systems
  • Suspended signage and information panels
  • Retail merchandising displays
  • Exhibition stands and display installations
  • Decorative wall and ceiling displays
  • Commercial presentation systems
  • Adjustable display board suspension
  • Bespoke wire rope suspension assemblies

Installation Advice

The Reutlinger Type 18 Bo4 Picture Frame Cable Gripper is designed for use with compatible 1mm to 1.8mm steel wire rope.

The fitting features an integrated mounting tab with a 4.2mm diameter hole, allowing it to be secured to a suitable flat surface using an appropriate screw or bolt.

Position the gripper against the frame or display panel and secure it through the mounting hole. Ensure the fixing is suitable for the material and weight of the item being suspended.

Insert the wire rope through the spring-loaded plunger at the top of the fitting and feed it through the internal gripping mechanism.

The ball-bearing mechanism automatically grips the cable when tension is applied, allowing the suspension length to be adjusted as required.

Once the required position has been achieved, check that the cable is securely retained and the complete suspension assembly is correctly installed.

Important Installation Information

  • Suitable for compatible 1mm to 1.8mm steel wire rope.
  • Use an appropriate screw or bolt through the 4.2mm mounting hole.
  • Ensure the mounting surface is suitable for the intended load.
  • Use only compatible cable constructions and materials.
  • Ensure the cable is clean, undamaged and free from deformation.
  • Do not exceed the applicable working load limit.
  • Do not adjust the gripper while supporting a load.
  • Ensure the cable is correctly aligned with the gripping mechanism.
  • Avoid excessive sideways loading or sharp cable deflection.
  • For larger or heavier frames, use an appropriately designed suspension arrangement with sufficient fixing points.
  • The working load of the complete suspension system must not exceed that of its lowest-rated component.
  • Not rated for lifting.

Technical Info

WORKING LOAD LIMITS (WLL)

7x7 Galvanised Steel Wire Rope – 2,300 N/mm²

1.0mm Cable – WLL 13kg
1.2mm Cable – WLL 18kg
1.5mm Cable – WLL 27kg
1.8mm Cable – WLL 30kg

7x7 Stainless Steel Wire Rope – 1,570 N/mm²

1.0mm Cable – WLL 8kg
1.2mm Cable – WLL 15kg
1.5mm Cable – WLL 20kg
1.8mm Cable – WLL 25kg

MANUFACTURER'S LOAD SPECIFICATIONS

Maximum Published Type 18 WLL: 30kg
Safety Factor Used in Published Ratings: 5:1

IMPORTANT INFORMATION

The working loads listed are Reutlinger's published ratings for the standard Type 18 three-ball gripping mechanism when used with the specified wire rope.

The maximum WLL of 30kg applies to the specified 1.8mm galvanised steel cable. The corresponding WLL for the specified 1.8mm stainless steel cable is 25kg.

The complete suspension system, including the cable gripper, wire rope, mounting screw or bolt, frame and supporting structure, must be assessed for its intended application.

The published Type 18 gripper ratings do not independently establish the load capacity of the mounting hole, screw or supporting frame.

Do not exceed the working load limit of the lowest-rated component.

Not rated for lifting.
