1.5mm (1/16") A2-AISI 304 Stainless Steel Stop ST24-2 (Equivalent Boeing Commercial Aircraft Standard Part BACT14A) - 127.243.015.

1.5mm (1/16") A2-AISI 304 Stainless Steel Stop ST24-2 (Equivalent Boeing Commercial Aircraft Standard Part BACT14A) - 127.243.015.

£4.60 GBP
£4.60 GBP £4.60 GBP
Sale Sold out
Shipping calculated at checkout.

Product Code

127.243.015

597 in stock

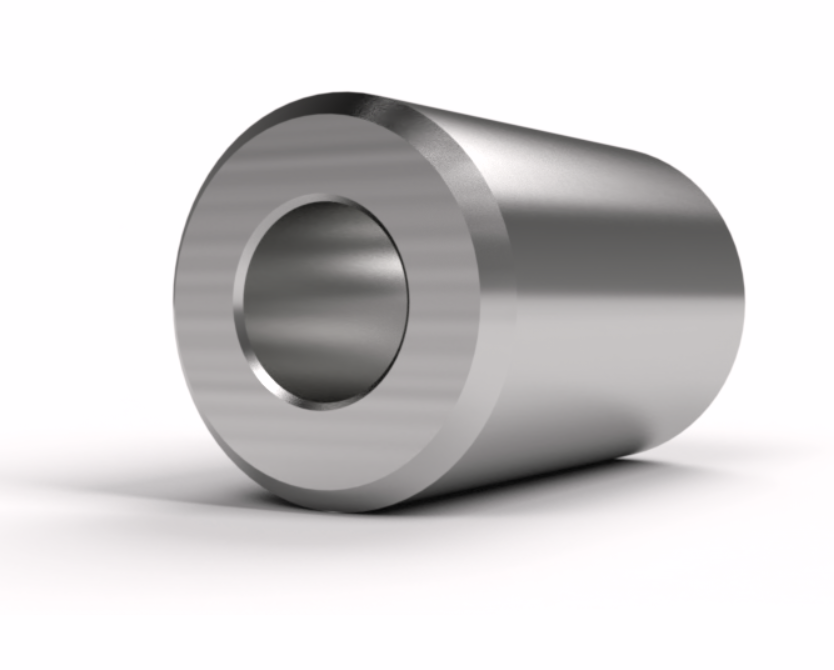

1.5mm (1/16") A2-AISI 304 Stainless Steel Cylindrical Stop ST24-2 - 127.243.015.

Suitable for use with 1.5mm (1/16") cable.

Loo's Product Code: ST24-2
DFARS Compliant
Boeing Comercial Aircraft Standard - Boeing Part No. BACT14A

Also known as Stop Buttons, Sleeves, or Boeing Buttons.

The expected strength regarding this type of end termination is 90% of the MBL of the wire rope. Testing must be performed to verify the strength of the assembly. They are not suitable for use with 1x7 or 1x19 construction.

Recommended for use with Mil Spec Cable.

Applications & Advice

Swage yourself using the YCP240C tool using 101.240.480 (HEX-2-2.5-SS) dies. Alternatively TECNI can round swage or hex swage this fitting for you.

Dimensions

Wire Rope Dia: 1.5mm (1/16")

A: 5.4mm - 5.7mm
B: 5.5mm - 5.6mm
C: 4.7mm - 4.8mm
D: 1.8mm - 1.9mm

C After Swaging: 4.8mm across flats

Downloads

ST24 Terminal Datasheet
