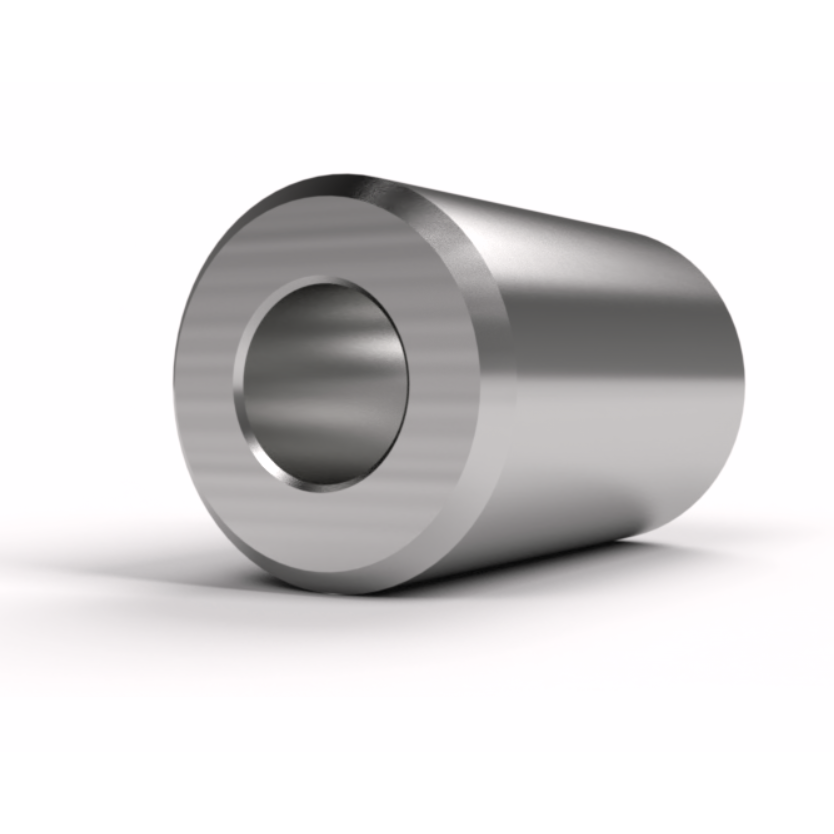

• ST24 Stop
  • Stainless steel cylindrical stop with dimensions labeled on a white background
  • ST24 Stop Fitting
  • A stainless steel cylindrical stop designed for use with 5mm cable on a white background.

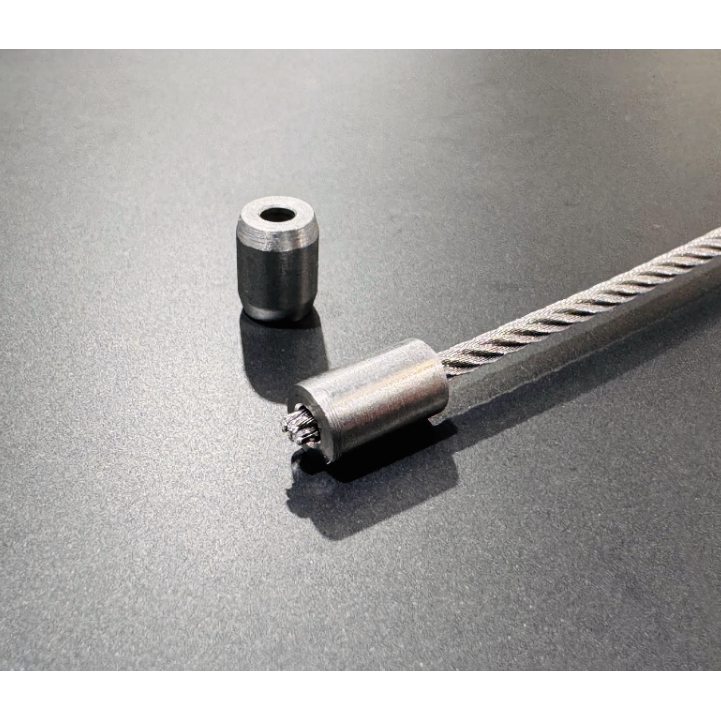

  • Wire rope with a Mil Spec Stop fitting on the end.
1 5

3mm (1/8") A2-AISI 304 Stainless Steel Stop ST24-4 (Equivalent Boeing Commercial Aircraft Standard Part BACT14A) - 127.243.030.

3mm (1/8") A2-AISI 304 Stainless Steel Stop ST24-4 (Equivalent Boeing Commercial Aircraft Standard Part BACT14A) - 127.243.030.

£6.46 GBP
£6.46 GBP £6.46 GBP
Sale Sold out
Shipping calculated at checkout.

Product Code

127.243.030

119 in stock

The 3mm (1/8") AISI 304 Stainless Steel Cylindrical Stop provides a secure end termination for wire rope and control cable assemblies.

Also known as a stop button, sleeve or Boeing button, this DFARS-compliant fitting meets Boeing Commercial Aircraft Standard BACT14A and is recommended for use with Mil Spec cable.

Applications & Advice

Typical Applications:

  • Aerospace and aviation cable assemblies
  • Mechanical control cable systems
  • Industrial wire rope assemblies
  • Precision cable termination systems

Suitable for Mil Spec wire rope. Not suitable for 1x7 or 1x19 cable constructions.

Recommended Swaging Equipment:

  • YCP240C Hydraulic Crimper
  • HEX-4-SS Die Set – 101.240.640

Alternatively, TECNI can provide professional round or hex swaging services for this fitting.

The expected termination strength is 90% of the wire rope's Minimum Breaking Load (MBL). Testing must be performed to verify the actual strength of the completed assembly.

Dimensions

Wire Rope Dia: 3mm (1/8")

A: 10.3mm - 10.5mm
B: 7.4mm - 7.5mm
C: 6.2mm - 6.3mm
D: 3.6mm - 3.7mm

C After Swaging: 6.3mm across flats

Downloads

ST24 Datasheet
