4mm A4-AISI 316 Stainless Steel Swageless Jaw Terminal - 105.840.604

4mm A4-AISI 316 Stainless Steel Swageless Jaw Terminal - 105.840.604

Regular price £12.71 GBP
Regular price £12.71 GBP Sale price £12.71 GBP
Sale Sold out
Shipping calculated at checkout.

Product Code

SKU:105.840.604

Quantity

31 in stock

4mm A4-AISI 316 Stainless Steel Swageless Jaw Terminal - 105.840.604

Suitable for use with 4mm Stainless Steel 1x19, 7x7 or 7x19 cable.

When correctly assembled the fitting is capable of achieving 90% of the breaking load of the cable. This quick and easy to install fitting can be assembled by hand using a spanner.

Ideal for outdoor and marine environments. Typical applications include structural tensioning, catenary, balustrade, yacht rigging and mast stays.

Applications & Advice

Suitable for use with 1x19, 7x7 and 7x19 stainless steel wire rope. NOT SUITABLE for use with galvanised cable.

Technical Info

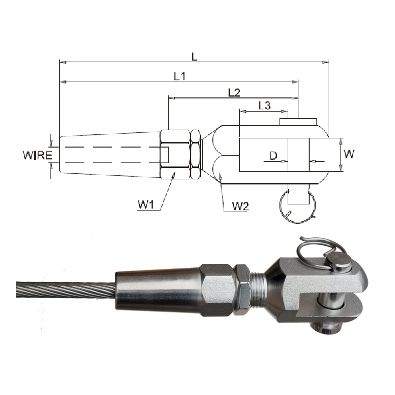

Dimensions

D: 8mm
L: 69mm
L1: 59mm
L2: 37mm
L3: 12mm
W: 8mm
W1: 14mm
W2: 19mm
